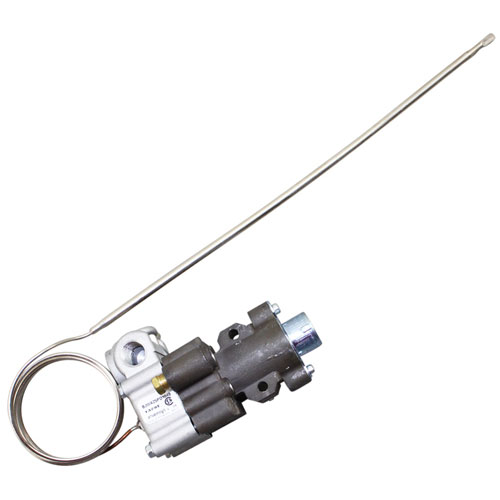

Vulcan Hart 00-417424-000G5 Griddle Thermostat Assembly BJWA

SKU: 00-417424-000G5 1-00-417424-000G5 Brand:
Vulcan Hart
Availability:
In Stock
(1)
$176.91 Price reduced from $272.58
Save $95.67
Have a Question? +1 (866) 863-0907

Specifications:

  • Viewed From Rear:See "Bj Outlet Positions" Image
  • [ Type - Bjwa ] [ Temp Low-550 ] [ Bulb 3/16 X 11 ]
  • [Cap 48 ] [Rotation 90 Cw, 1/4"Npt Out "D" ]
  • 3/16" Cct Pilot,
  • Black Oven Dial # 22-1028, Off-Low-250-550-Broil
  • Red Oven Dial # 22-1213, Off-Low-250-500
  • Black Bj T'Stat Knob, [ 2" Dia ] [ Off-Low-250-500]
  • [Mount 11/16"] [ Notch Down ], 5/8" Protrusion On Back Of
  • Knob # 22-1210
  • Vulcan Oven Series 59, 64, 70, Eg60
  • Standard Oven 24, 36, 48, 60, 148, 160, 260, (L,)
  • Eg, Vg

Description

The Vulcan Hart 00-417424-000G5 Range Thermostat BJWA is a highly efficient, precision temperature control device for use with ovens in commercial kitchen applications. The 3/16" x 11" bulb and 48" capillary tube results in precise temperature regulation from 250°F to 550°F, making this a better thermostat for all sorts of cooking methods, including baking and broiling. The 90-degree clockwise rotation makes it easy to adjust, and the distinctive black oven dial and red oven dial allow for clear visibility which increases operational efficiency. This thermostat will work with Vulcan oven series 59, 64, 70, etc.

Dimensions:

  • Weight: 1 lbs
  • Length: 11 in
  • Height: 11 in
  • Width: 4.5 in

Step1: Disconnect power and gas supply, and ensure griddle is completely cool before servicing.

Step2: Remove front control panel to access thermostat assembly carefully.

Step3: Note wiring positions clearly and disconnect electrical leads carefully.

Step4: Unscrew mounting hardware and remove faulty old thermostat assembly.

Step5: Install new thermostat Assembly, secure mounting and reconnect wiring as labeled.

Step6: Reassemble control panel, restore power, and test temperature calibration for safe operation.

  • What maintenance is required for the Vulcan Hart 00-417424-000G5 Thermostat Assembly?

    Inspect griddle thermostat wiring connections and calibration regularly. Clean external contacts to prevent grease buildup affecting sensing accuracy. Ensure secure mounting to maintain temperature consistency. This helps prevent uneven heating and control failures during operation.

  • What are common issues with the Vulcan Hart 00-417424-000G5 Thermostat Assembly?

    • Inaccurate griddle temperature readings due to sensor wear.
    • Intermittent heating from faulty wiring connections.
    • Thermostat failure causing inconsistent griddle temperatures.
    • Sticking or unresponsive control knob mechanism.
    • Loss of calibration leading to uneven heat zones.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Instant Adjustments
    Daryle —

    Thermostat fixed, oven heating is perfect
