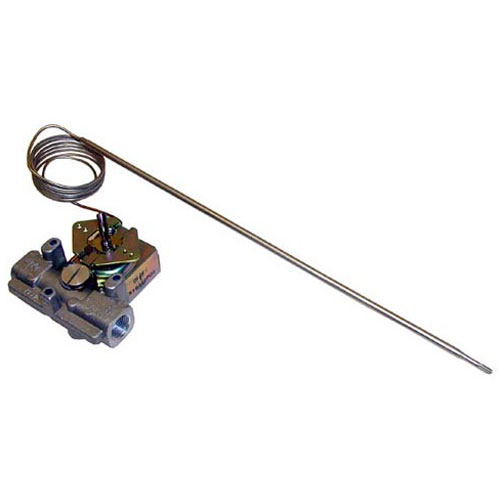

Imperial 1102 Griddle Thermostat Snap Action/GS 3/8" 200-550°F
Specifications:
- [Thermostat - Gs ] 3/8" Fpt, [ Temp 200-550 ]
- [ Bulb 3/16" X 12" Nickel ] [ Cap 48" ] D-Stem .187"
- Gen Use Knob # 22-1128 Off-550-200, 4-Way Mt
- Garland Grill
- Imperial Grill
- Us Range Grill Series: P (Made In 1992 & Prior),
- Performer Ii.
- Oven Series: Performer Ii (Before 1992).
Description
Dimensions:
- Weight: 0.8 lbs
- Length: 12 in
- Height: 2.5 in
- Width: 4 in
Temperature regulation within compatible commercial griddles and grills is controlled by the Imperial 1102 snap action thermostat. The thermostat monitors heat conditions and opens or closes the heating circuit to maintain the selected temperature range of 200°F to 550°F. It features a 3/8" FPT connection, 3/16" × 12" nickel sensing bulb, 48" capillary, and D-stem configuration for the specified control application. Installed within the griddle or grill control system, the thermostat manages heating operation based on sensed temperature conditions.
Equipment Compatibility:
Designed for use with compatible Imperial commercial grills and griddles where snap action temperature control is required.

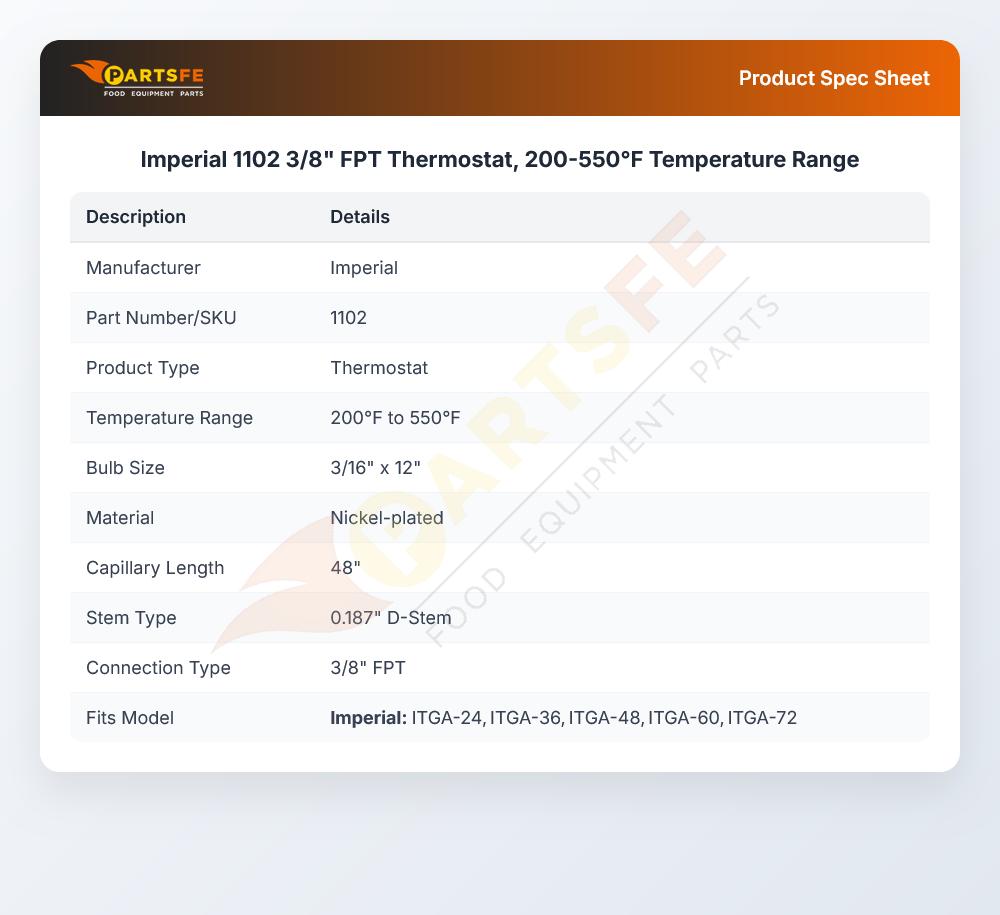

Product Specifications:
SKU: 1102
Manufacturer: Imperial
Product Type: Griddle Thermostat
Thermostat Type: Snap Action / GS
Temperature Range: 200-550°F
Connection: 3/8" FPT
Bulb Size: 3/16" X 12" Nickel
Capillary Length: 48"
Key Features:
- Uses snap action switching to respond to temperature changes.
- Provides adjustable temperature control across the 200-550°F range.
- Includes a nickel sensing bulb for temperature detection.
- Features a capillary design that transfers temperature response to the control mechanism.
- Includes a D-stem configuration and 4-way mounting design for the specified control installation.
The faulty thermostat was replaced, and the griddle is now responding properly to temperature adjustments.
Step1: Shut off gas and electrical power to the appliance and ensure it is completely cool.
Step2: Remove control panel and disconnect wiring from the existing thermostat carefully.
Step3: Unscrew and replace the new thermostat into the original mounting port securely.
Step4: Reconnect wires to matching terminals using the wiring diagram as reference.
Step5: Restore power and gas supply, then test temperature response and check for proper cycling and safe operation.
-
What maintenance is required for the Imperial 1102 Thermostat?
Inspect wiring and terminals regularly for corrosion or looseness. Keep sensor clean and free of debris. Ensure proper calibration within operating range. Periodic checks improve accuracy and prevent overheating or control failure.
-
What are common issues with the Imperial 1102 Thermostat?
- Thermostat sticking or delayed response.
- Electrical contact wear causing intermittent operation.
- Overheating or failure to switch under load.
- Wiring connection faults or loose terminals.
