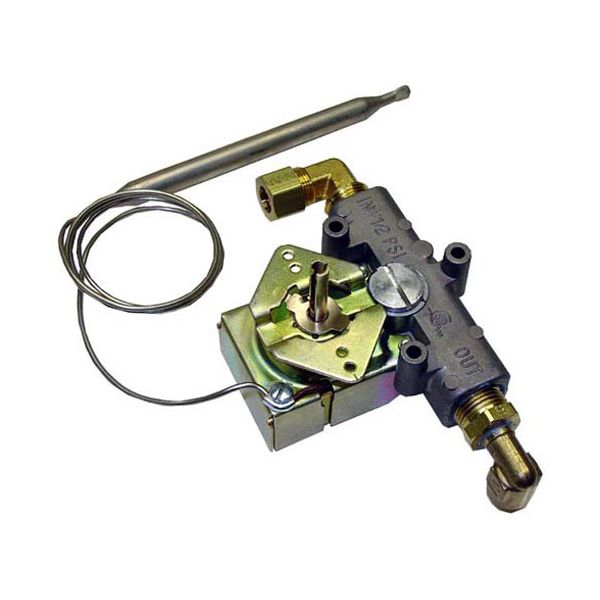

Southbend 1182553 Griddle Snap Action Thermostat 3/8"D X 5" 30"L

Rating:

4 Reviews Add Your Review

Special Price $318.69 Regular Price $650.12

In stock

SKU

1182553

Categories: Electrical & Hardware, Thermostats, Shop by manufacturers

Manufacturer:

Southbend

The Southbend 1182553 Griddle S‍nap Action T‌hermostat 3/8" D x 5" with 30" capillary is a replacement component used in commercial appliances to regulate cooking surface heat during‌ operation. It senses plate conditions through a bulb and cap‍illary assembly, and automatically adjusts gas flow by op‍ening, or closing internal contacts as they change. Installed within the system it aids maintain consi‌ste‌nt cooki‍ng temperatures for food preparation in restaurants and kitchens. It is designed as part of th‍e assembly suppo‌rting stable surfa‍ce temperatures responsive heat recovery, and controlled bu‍rne‍r p‌er‌formance during continuous cooking cycles.

Dimensions

Length: 7 In
Width: 3 In
Height: 6 In
Weight: 1.1 lbs

Product Notes

Flat Down~
Horiz Bkt~
Elbow On One End~
3/8 Mpt X 1/8 Fpt Adapter And 3/8 Mpt X 3/8 Cct Adapter
Dial To Use # 22-1027, [Dot- 400-200]
Southbend Griddle Sgs, Hdg, Mdg

Details

Designed as an integral part of commercial griddle temperature control systems, this snap-action thermostat regulates heat output by sensing surface temperature and controlling burner operation as cooking temperatures change. Featuring a 3/8-inch diameter by 5-inch sensing bulb with a 30-inch capillary length, the thermostat helps maintain consistent griddle temperatures for cooking performance and product quality. The assembly includes a flat-down horizontal bracket configuration, elbow connection on one end, and adapters including 3/8" MPT x 1/8" FPT and 3/8" MPT x 3/8" CCT fittings for installation in compatible equipment. Commonly used in commercial griddles and countertop cooking equipment, the thermostat plays an important role in temperature regulation, heating consistency, and efficient burner cycling. A worn or malfunctioning thermostat may cause inaccurate temperature control, overheating, or insufficient heating. Replacing the thermostat can help restore proper temperature regulation, improve cooking consistency, and support reliable equipment operation.

Equipment Compatibility:
Replacement temperature control applications for Southbend Griddle Snap Action Thermostat include commercial griddles, countertop griddles, and gas cooking equipment. This Griddle Snap Action Thermostat 1182553 is compatible with commercial equipment from leading brands such as Southbend and Blodgett, and more, where accurate temperature control and heating regulation are required for proper equipment operation.

Brand Compatibility:
This thermostat replaces multiple part numbers used across compatible equipment models from brands such as Southbend and Blodgett. Complete cross-reference details are provided separately for identification and ordering purposes.

Product Specifications:
SKU: 1182553
Manufacturer: Southbend
Product Type: Snap Action Thermostat
Application: Griddle Temperature Control
Bulb Diameter: 3/8"
Bulb Length: 5"
Capillary Length: 30"
Mounting Style: Flat Down Horizontal Bracket
Connection Configuration: Elbow on One End
Includes Adapter: 3/8" MPT x 1/8" FPT
Includes Adapter: 3/8" MPT x 3/8" CCT
Dial Reference: #22-1027
Equipment Type: Commercial Griddles

Key Features:

Regulates griddle temperature through snap-action control operation
Helps maintain consistent cooking surface temperatures
3/8" x 5" sensing bulb with 30" capillary assembly
Includes installation adapters for compatible equipment connections
Supports proper burner cycling and temperature regulation
Suitable for commercial griddle and cooking equipment applications
Helps restore accurate temperature control when replacing a faulty thermostat
Contributes to consistent heating performance during operation

"Installation feedback often mentions improved temperature stability and more consistent griddle heating after replacement."

Replaces Parts

BLODGETT:

1182553, BL1182553

SOUTHBEND:

1174909, 1182553, SOU1182553

Reviews 4

Write Your Own Review

FAQS

Customer Questions

What maintenance is required for the Southbend 1182553 Snap Action Thermostat?

Check that the thermostat is securely mounted and the sensing element is properly aligned. Verify temperature readings by comparing to a separate thermometer. Ensure terminals are tight and free of corrosion for consistent operation.

What are common issues with the Southbend 1182553 Snap Action Thermostat?

Thermostat fails to trigger at set temperature.
Uneven griddle heating.
Snap action mechanism sticking.
Intermittent electrical signal disruptions.

What maintenance is required for the Southbend 1182553 Thermostat?

Periodically inspect the griddle thermostat for dust, grease, or corrosion on contacts. Test its temperature accuracy regularly and recalibrate if needed. Proper maintenance ensures accurate temperature control and prevents overheating or underheating, while always following safety precautions when handling electrical components.

What are the common issues with the Southbend 1182553 Thermostat?

Inaccurate temperature readings or fluctuations.
Failure to turn heating elements on or off.
Loose or corroded electrical connections.
