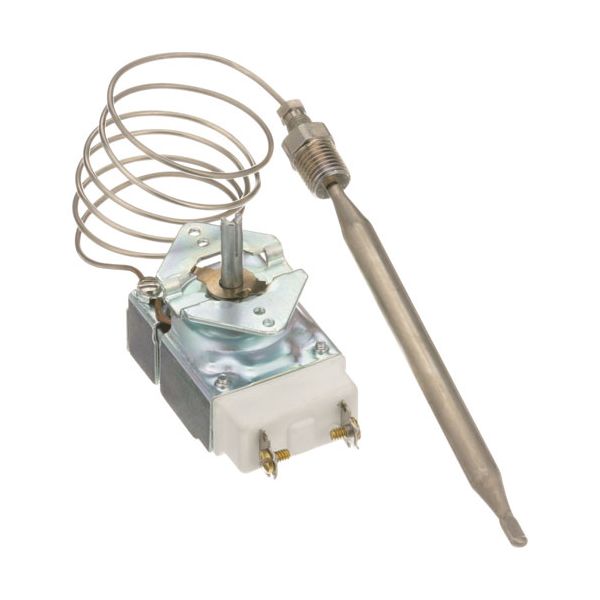

Royal Range 3113 Oven Thermostat RX 3/8" X 5" 36" CAP

Rating:
5 5 4
4  Reviews Add Your Review
Special Price $74.68 Regular Price $165.00
In stock
SKU
3113
Add to Wish List
Electrical & Hardware, Thermostats, Shop by manufacturers
Manufacturer:
The Royal Range 3113 Oven Thermostat RX senses the heat change in the capillary tube and controls the gas flow to keep the system at the desired temperature. The thermostat is used to control the internal temperature changes and to switch the heating system on and off during cooking. It is mounted within a commercial oven assembly with the sensing bulb placed in the heating chamber and the control section connected to the gas control system of the oven. It is a 3/8" x 5" capillary tube, 36" long, which is compatible with oven equipment that requires this specification.

Dimensions

  • Length: 6 In
  • Width: 1.7 In
  • Height: 2.5 In
  • Weight: 0.48 lbs
https://partsfe.com/media/catalog/product/r/o/royal-range-3113-oven-thermostat-rx-3-8-x-5-cap-36-85930-2.jpg

Product Notes

  • [ Rx T'Stat] [ Temp 200-400 F] [ Bulb 3/8" X 5" ]
  • [ Cap 36" ] [ Mount 11 ] [ Size 1/4" Mpt Stuff Box ]
  • [ Dial # 22-1027, Black Knob W/ White Printed Numbers
  • [ 2-1/4" Dia ] [Off- 400-200] [.187"] [Flat Down ]
  • Gen Use Dial # 22-1006, Off-400-200, 4-Way Mount
  • Anets Fryer 14Vfs, 18Eg Milivolt. Slg100
  • Imperial Fryer Series: If, Ihr, Ir.
  • Dean Fryer 11E, 11G, 14E, 14G, 32G, 714G, 1212G, 1212Gm,
  • 1414Cms, 1414E, 1414G, 1818E, 1818G, 1824E, 1824G, 2020E,
  • 2020G, 21414God, 2424E, 2424G, D-35, Llg, M-35, M-40Gm, Sr,
  • Series: Sm. (Most Gas & Electric Fryers)
  • Pitco Fryer Sg

This thermostat regulates the operating temperature inside fryers and ovens by measuring heat levels and making adjustments as needed. The thermostat includes a sensor that uses a 3/8" x 5" sensing bulb to measure internal temperature levels and operates within a temperature range of 200°F to 400°F. The thermostat comes with a 36" long capillary tube and a 1/4" MPT stuff box mount connection for installation. It is commonly used in gas and electric fryers where controlled temperatures are important for normal food preparation. Replacing an old or malfunctioning thermostat can help resolve problems related to equipment temperature control.

Equipment Compatibility:
Common applications for Royal Range oven thermostat controls include commercial fryers and cooking systems used in restaurants, cafeterias, and foodservice kitchens where regulated heat control is necessary during operation. This Oven Thermostat, RX 3113, is compatible with commercial equipment from leading brands such as American Range, Anets, Bakers Pride, Dean, Frymaster, Imperial, Pitco, and Tri-Star, and more, where controlled temperature adjustment and sensing functions are required for normal equipment operation.
Brand Compatibility
Replaces multiple part numbers across various commercial fryer and cooking equipment brands, including Royal Range, American Range, Anets, Bakers Pride, Dean, Frymaster, Imperial, Pitco, Southbend, Tri-Star, and other manufacturers. Refer to the “Replaces Parts” section for complete cross-reference details.

Product Specifications:

Manufacturer: Royal Range
SKU: 3113
Product Type: Oven Thermostat
Temperature Adjustment Range: 200°F to 400°F
Bulb Dimension: 3/8" x 5"
Capillary Length: 36 inches
Connection Size: 1/4" MPT Stuff Box
Dial Diameter: 2-1/4 inches
Dial Style: Black knob with white printed temperature markings
Mount Type: 11 mount configuration
Application Use: Commercial gas and electric fryer systems

Key Features:

  • Controls heat levels inside the fryer and oven equipment during the cooking operation
  • Sensing bulb monitors temperature changes within the cooking chamber
  • Long capillary tube supports installation across different equipment layouts
  • Adjustable rotary dial allows manual temperature selection between OFF and 400°F
  • Suitable for commercial fryer applications requiring controlled heating response

""After replacing the thermostat, the fryer maintained cooking temperature more evenly throughout operation.""

Replaces Parts
AMERICAN RANGE:
AMRA50400
BAKERS PRIDE:
FAGOR:
IMPERIAL:
1175, 1175-RS, 319, IMP1175, IMP319
JADE RANGE:
MARKET FORGE:
ROYAL RANGE:
SIERRA RANGE:
109-0084
TRI-STAR:
300232, AS-300232, TRS300232
U-LINE:
5300-40A, KX299-36, RX1-36
Reviews 4
Write Your Own Review
You're reviewing:Royal Range 3113 Oven Thermostat RX 3/8" X 5" 36" CAP
Your Rating
FAQS
Customer Questions
What maintenance is required for the Royal Range 3113 Thermostat?

Regularly check the oven thermostat for dust and debris, ensuring the contacts remain clean. Calibrate periodically to maintain accurate temperature readings. Inspect wiring connections for damage, and always turn off power before servicing to prevent electrical hazards.

What are common issues with the Royal Range 3113 Thermostat?

  • Inaccurate temperature readings.
  • Unresponsive controls or buttons.
  • Frequent short cycling of heating or cooling systems.
  • Wiring connection problems causing intermittent operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the oven gas and power before starting the process.

Step2: Access the control area where the thermostat is located.

Step3: Disconnect wiring and remove the sensing bulb carefully.

Step4: Remove the old thermostat from its mounting bracket.

Step5: Install the new thermostat securely.

Step6: Reconnect all wiring and position the bulb correctly.

Step7: Restore power and gas supply.

Step8: Test for proper temperature control.
