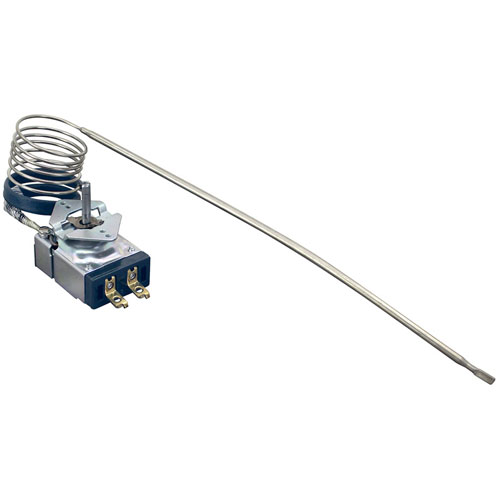

Garland CK1032400 Oven Thermostat S W/187" D Stem and DIAL 1MOUNT 3/16" X 11" BULB 175-550 Temperature 42" Capillary

SKU: CK1032400 1-CK1032400 Brand:
Garland
Availability:
In Stock
(0)
$89.41 Price reduced from $189.42
Save $100.01
Have a Question? +1 (866) 863-0907

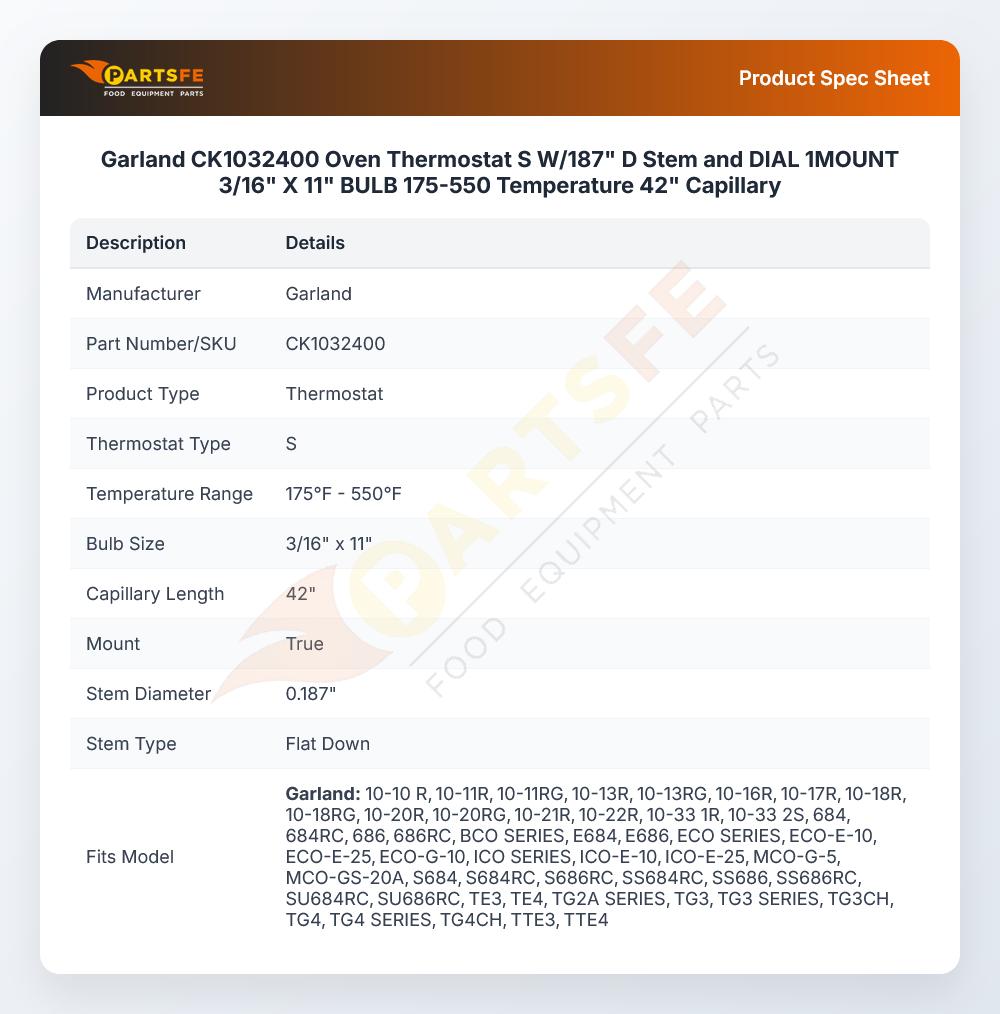

Specifications:

  • [ Type - S ] [ Temp 175-550 ] [ Bulb 3/16" X 11" ]
  • [ Cap 42" ] [ Mount 1 ] .187" D Stem Flat Down
  • [ Use Dial # 22-1395 & Dial Insert # 22-1396 ].
  • For Pointer Knob Use # 22-1180.
  • Us Range Oven Sdg-(1.2) W/ Manual Controls
  • Garland Oven 694-2-120.
  • Series: 680, Bco, Eco, Ico, Te2A/B, Te3/4, Tg2A,
  • Tg3/4, Tte2(A,B), Tte3/4, Ttg2A, Ttg3/4, (Also Er-1142
  • Which Is Very Old).

Description

The Garland CK1032400 Thermostat 175°F -550°F 3/16" X 11" X 42" CAP regulates the temperature of an oven by detecting the amount of heat in the oven using its capillary tube and transmitting electrical impulses to the heating coils, turning the heating units on or off accordingly. The mechanism of the thermostat is to expand or contract according to the temperature changes and control the internal conditions of the oven. It can be installed inside the oven cavity where the sensing bulb and capillary tube are tightly placed and connected to the control system.

Dimensions:

  • Weight: 0.6 lbs
  • Length: 13 in
  • Height: 2.5 in
  • Width: 5.25 in

GARLAND:

-1032400 -1032499 -CK1032400 -CKG0894-01 -G0894-01 1032400 1032499 CKG0894-01 G0894-01 GL1032400 GL1032499

RANCO:

-G1-2670 G1-2670

U-LINE:

5300-170 S236-42

Step1: Turn off the power and gas to the oven and allow it to cool completely for safety.

Step2: Remove the control panel and disconnect the old thermostat, noting wiring positions.

Step3: Install the new thermostat, securing bulb and capillary in original routing.

Step4: Reconnect wires according to diagram and reassemble panel securely.

Step5: Restore power, test temperature settings, and ensure safe operation before use.

  • What maintenance is required for the Garland CK1032400 Thermostat?

    Regularly inspect the oven thermostat and capillary for damage or kinks to ensure accurate temperature control. Clean dial and connections to prevent grease buildup affecting performance.

  • What are common issues with the Garland CK1032400 Thermostat?

    • Stuck or unresponsive dial control.
    • Inaccurate temperature readings due to calibration drift.
    • Damaged or leaking capillary tube causing loss of control.
    • Inconsistent heating cycles or failure to reach set temperature.
