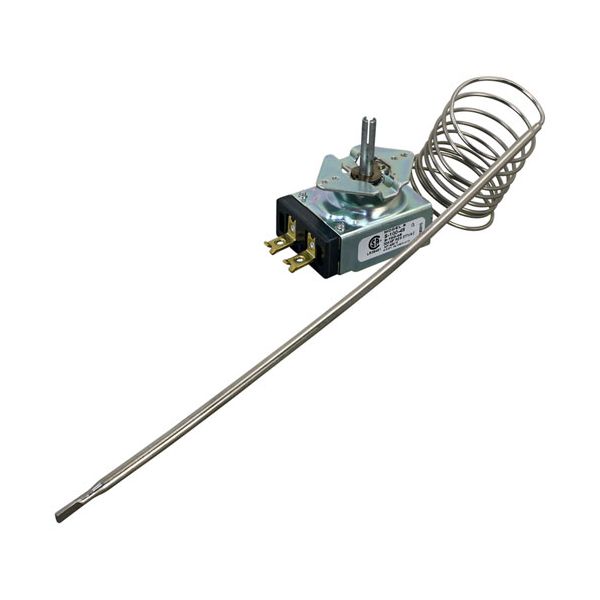

Southbend 2662A8701 Range Thermostat S Type 150-450°F
Special Price $93.15 Regular Price $143.52
In stock
SKU
2662A8701
Manufacturer:
The Southbend 2662A8701 Range Thermostat S-Type is a temperature control part that is used in the compatible appliances. It detects the presence of heat in the cooking chamber and controls the burner to ensure that the temperatures in the appliance are kept at 150 to 450 degrees Fahrenheit. This thermostat is installed at the ends of the control panel and is connected to a sensing bulb installed in the cavity to turn the gas on and off when the temperature changes. In restaurant and institutional kitchens, it can be used as a main heat control system.
Dimensions
- Length: 13.25 In
- Width: 2.75 In
- Height: 2.5 In
- Weight: 0.6 lbs
Product Notes
- [ Type- S ] [ Temp 150-450 ] [ Bulb 3/16" X 11-1/8"
- Nickel] [ Cap 48" ] Mount 1 [ Dial #22-1179 Off-
- 450-150 For Drawer Warmer.] [ Dial # 22-1313
- Off-10-0 For Drop-In Warmer. ]
- Toastmaster
- Oven 1503Td, 3012(E,S), 3020, 3024, 3025, 3027, 3028, 3044,
- 3054. Series: 27, Co19, Co38.
- Broiler 4224, 4236.
- Grill Models: B721B(800W), C713B(1200W) & C714B(1650W).
- Built-In: B702A, C703A & C704A.
- T-Line: 7118 & 30, 7224 & 36, 7336, 48 & 72, 7436.
- Built-In T-Line: 7024, 36, 36H, 48 & 72. Griddle (On Range
- 2662): B712(Prior To 1/77), 7224, (After 1/77),7348F.
- 450 Eg F Max Temp, 48" Cab, Bulb = 11-1/8" X 3/16"
