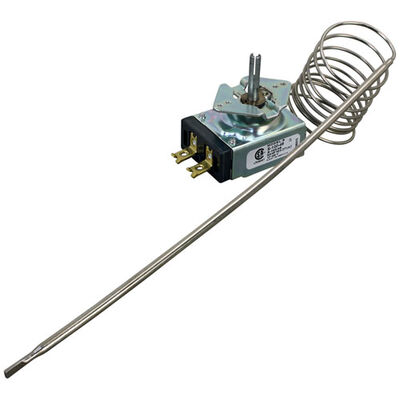

Southbend 2662A8701 Range Thermostat S Type 150-450°F
Specifications:
- [ Type- S ] [ Temp 150-450 ] [ Bulb 3/16" X 11-1/8"
- Nickel] [ Cap 48" ] Mount 1 [ Dial #22-1179 Off-
- 450-150 For Drawer Warmer.] [ Dial # 22-1313
- Off-10-0 For Drop-In Warmer. ]
- Toastmaster
- Oven 1503Td, 3012(E,S), 3020, 3024, 3025, 3027, 3028, 3044,
- 3054. Series: 27, Co19, Co38.
- Broiler 4224, 4236.
- Grill Models: B721B(800W), C713B(1200W) & C714B(1650W).
- Built-In: B702A, C703A & C704A.
- T-Line: 7118 & 30, 7224 & 36, 7336, 48 & 72, 7436.
- Built-In T-Line: 7024, 36, 36H, 48 & 72. Griddle (On Range
- 2662): B712(Prior To 1/77), 7224, (After 1/77),7348F.
- 450 Eg F Max Temp, 48" Cab, Bulb = 11-1/8" X 3/16"
Description
Dimensions:
- Weight: 0.6 lbs
- Length: 13.25 in
- Height: 2.5 in
- Width: 2.75 in
MIDDLEBY MARSHALL:
2662A8723 3004257 D705A8739 D705A8739A D715B8725 D715B8725A D715B8727
SOUTHBEND:
Step1: Turn off and unplug the appliance to ensure safety.
Step2: Remove the access panel to locate the old thermostat.
Step3: Disconnect all wiring and carefully remove the old thermostat.
Step4: Securely mount the new thermostat in the same position.
Step5: Reconnect wires following the original configuration.
Step6: Replace the access panel, restore power, and test the appliance for proper temperature control.
-
What maintenance is required for the Southbend 2662A8701 Thermostat?
Periodically wipe the thermostat housing and sensor probe to remove grease and debris. Ensure the mounting screws are tight and connections secure. Regular checks prevent misreadings and assist to maintain consistent oven temperatures safely.
-
What are common issues with the Southbend 2662A8701 Thermostat?
- Oven temperature fluctuates unexpectedly.
- Thermostat fails to reach set temperature.
- Burner cycles on and off irregularly.
- Mechanical or sensor wear causing delayed response.
