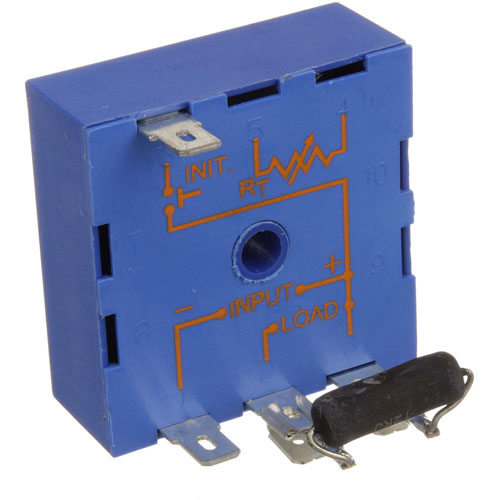

Lincoln 369417 Oven Time Delay Relay 2P 1A 230V

SKU: 369417 1-369417 Brand:
Lincoln
Availability:
In Stock
(0)
$151.06 Price reduced from $182.89
Save $31.83
Have a Question? +1 (866) 863-0907

Specifications:

  • Time Delay Relay, 20 Min., Blue
  • [ 2 Poles] [1 Amps] [230V ] [ 1/4" Male Terminals]
  • [ 1/4" Dia. Hole ] [Infitec ]
  • Lincoln Oven Series 1300

Description

Lincoln 369417 Time Delay Relay is used in ovens to control the time delay for the proper working of the oven. It comes with two poles, has an amperage of 1A, and works at 230V it also has 1/4” male terminals to facilitate connection. This relay is designed for the Lincoln Oven Series 1300 and is capable of performing a 20-minute time delay. This product is used to control the working of the oven parts and to enhance the reliability of the cycles, which is essential for applications.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 2 in
  • Height: 2 in
  • Width: 2 in

Step1: Turn off and unplug the oven to ensure safety.

Step2: Remove the access panel to reach the existing time delay relay.

Step3: Disconnect all wiring and carefully remove the old relay.

Step4: Install the new relay in the same position securely.

Step5: Reconnect wires following the original configuration.

Step6: Replace the panel, restore power, and test the oven for proper timing and operation.

  • What maintenance is required for the Lincoln 369417 Time Delay Relay?

    Regularly clean the relay area to remove dust or grease. Inspect contacts and wiring for wear. Test operation to ensure proper timing and safe oven cycling.

  • What are the common issues with the Lincoln 369417 Time Delay Relay?

    • Oven delays in starting or stopping.
    • Relay contacts fail to close or open.
    • Erratic oven cycling.
    • Electrical faults affecting timing.
