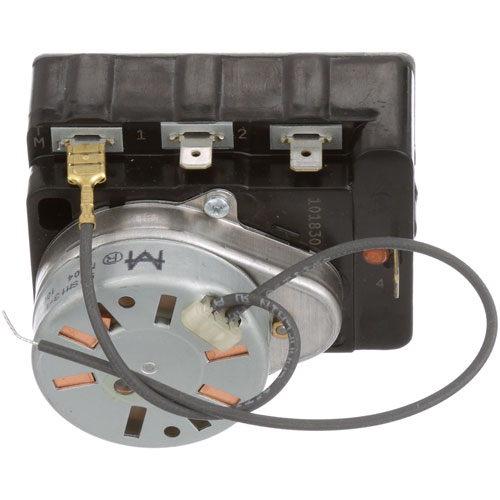

Imperial 32209 Oven 60 Min Timer120V

SKU: 32209 1-32209 Brand:
Imperial
Availability:
In Stock
(0)
$111.20 Price reduced from $219.16
Save $107.96
Have a Question? +1 (866) 863-0907

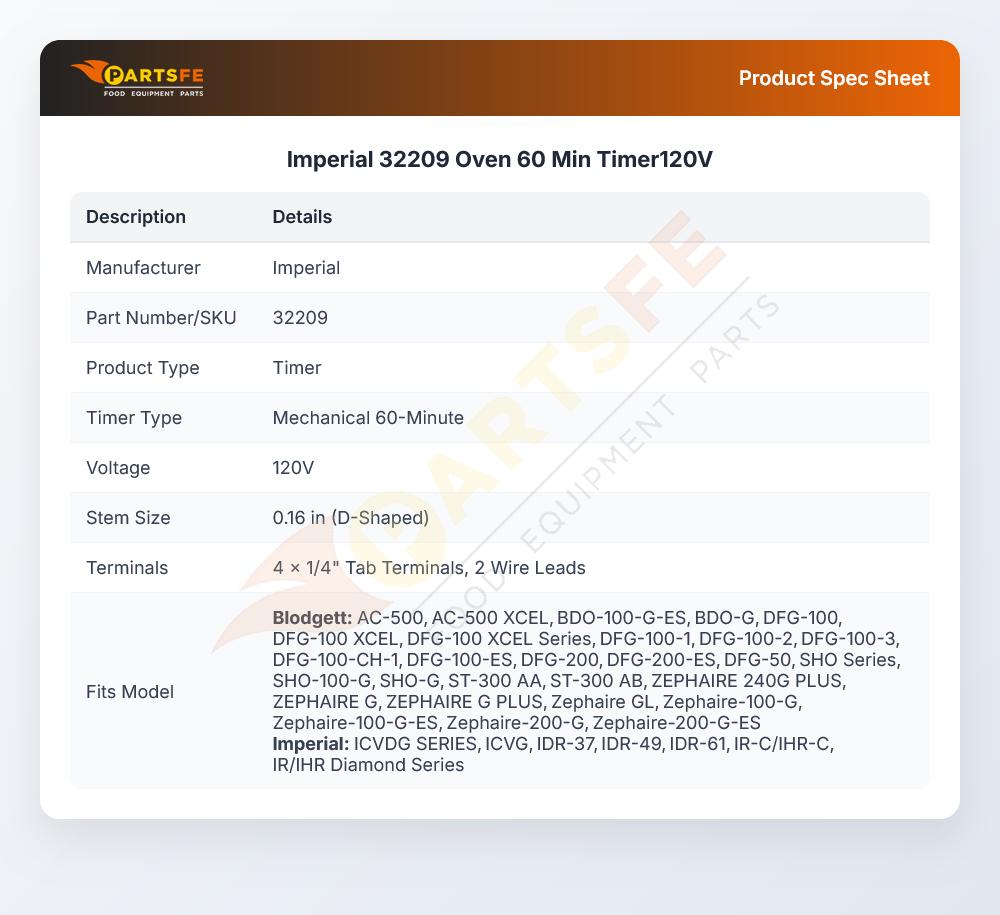

Specifications:

  • Timer 120V, 60 Min, 4Ea. 1/4" Tab Terminals,
  • 2 Wire Leads,
  • .160" D-Stem
  • Blodgett
  • Oven Series: Dfg 50, Dfg 100, 200 & 300.
  • After 7/86~
  • Zephaire G With Solid State Controls.
  • Shig.

Description

Imperial 32209 Timer is a 60 minutes duration suitable for Oven Series DFG 50, DFG 100, 200 & 300. It operates at 120V and has 1/4” tab terminals and 2 wire leads for the ease of installation. The timer has a .160” D-stem and is perfect for regulating cooking time in commercial ovens to improve accuracy in food preparation. Advantages include stable and non-portable solid-state control and compatibility with Zephaire G systems, which saves time and effort in busy production lines in kitchens. It helps to set the right time for cooking to produce the right results.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.25 in
  • Height: 3.5 in
  • Width: 2.5 in

BLODGETT:

18225 BL18225

IMPERIAL:

IMP32209

Step1: Turn off oven power at breaker and ensure circuit is fully isolated for safety.

Step2: Remove oven control panel and access timer wiring compartment carefully.

Step3: Note or label existing wiring connections before disconnecting.

Step4: Disconnect old timer and remove mounting screws securely.

Step5: Install new timer and align bracket correctly.

Step6: Reconnect wires per diagram, ensuring tight and safe terminals.

Step7: Reassemble panel, restore power, and test timer operation safely.

  • What maintenance is required for the Imperial 32209 Timer?

    Keep the oven timer mechanism clean and free of grease buildup to ensure smooth operation. Inspect wiring connections periodically for wear or looseness to prevent malfunction. Avoid moisture exposure and ensure power is disconnected during servicing for safety.

  • What are common issues with the Imperial 32209 Timer?

    • Timer fails to advance or stops mid-cycle.
    • Inaccurate or inconsistent timing.
    • Knob or dial becomes stiff or stuck.
    • Electrical contact wear causing intermittent operation.
    • Broken or loose timer shaft.
    • Power fluctuations affecting timing accuracy.
