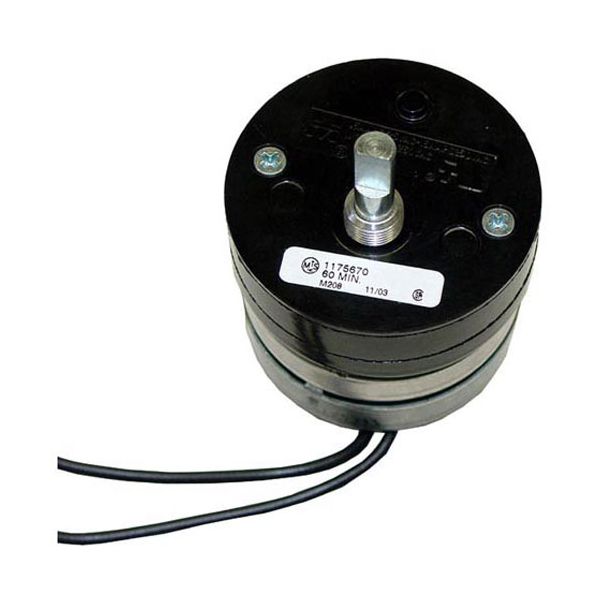

Southbend 1175670 Range 60 Min Timer W/ D Stem & 2 Leads 115V
Specifications:
- Timer
- 60 Min, D Stem, Threaded Post Mt, 115V Motor With 2 Leads'
- For Knob Use A2644, # 22-1255
- For 240V Timer See E684, # 42-1381
- Southbend Gb-12Cch, Gb-12Pc, Gb-12Rt, Gb-12Sc, Gb-15Cch,
- Gb-15Pc, Gb-15Rt, Gb-15Sc, Gb-22Cch, Gb-22Pc, Gb-22Rt,
- Gb-22Sc, Gb-25Cch, Gb-25Pc, Gb-25Rt, Gb-25Sc, Gs-12Cch,
- Gs-12Pc, Gs-12Rt, Gs-12Sc, Gs-15Cch, Gs-15Pc, Gs-15Rt,
- Gs-15Sc, Gs-22Cch, Gs-22Pc, Gs-22Rt, Gs-22Sc, Gs-25Cch,
- Gs-25Pc, Gs-25Rt, Gs-25Sc, Slgb-12Sc, Slgb-12Scch,
- Slgb-15Sc, Slgb-15Scch, Slgb-22Sc, Slgb-22Scch, Slgb-25Sc,
- Slgb-25Scch, Slgs, Slgs-12Sc, Slgs-12Scch, Slgs-15Sc,
- Slgs-15Scch, Slgs-22Sc, Slgs-22Scch, Slgs-25Sc, Slgs-25Scch
Description
Dimensions:
- Weight: 0.4 lbs
- Length: 2.5 in
- Height: 2.9 in
- Width: 2 in
Step1: Disconnect the range from power before starting.
Step2: Access the control panel to locate the timer.
Step3: Disconnect wiring connections carefully.
Step4: Remove the existing timer from its bracket.
Step5: Install the new timer in position.
Step6: Reconnect all wiring securely.
Step7: Close the panel and restore power.
Step8: Verify proper timing operation.
-
What maintenance is required for the Southbend 1175670 Timer?
Keep the range timer clean and free from dust or grease buildup. Check that electrical connections are secure and functioning properly. Test the timer periodically to ensure accurate operation. Always disconnect power before servicing to prevent shocks.
-
What are the common issues with the Southbend 1175670 Timer?
- Timer not starting or stopping correctly.
- Inaccurate timing intervals.
- Loose or faulty electrical connections.
- Mechanical damage affecting the knob or internal components.
