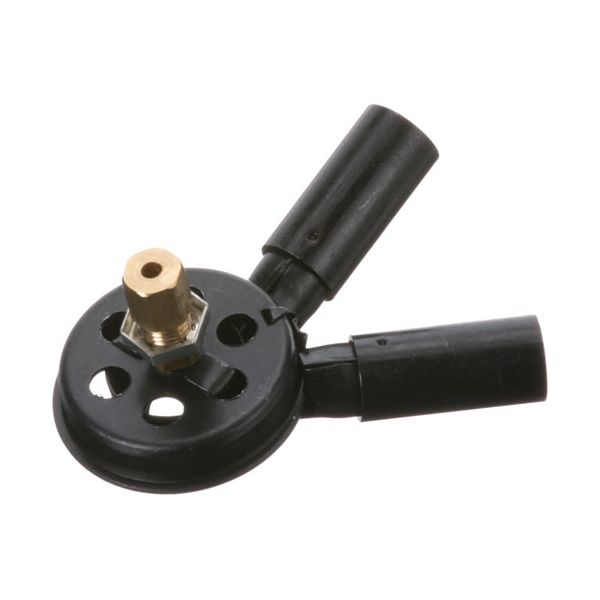

Garland 1801401 Range Top Burner Pilot Assembly Aluminum W/2 Straight Arms 4.5" L1/8" CCT

Be the first to review this product
Special Price $23.66 Regular Price $42.25
In stock
SKU
1801401
Add to Wish List
Griddle & Grill Parts, Pilot Burners, Shop by manufacturers
Manufacturer:
The Garland 1801401 Range Top Burner Pilot Assembly Aluminium W/2 Straight Arms 4.5" L1/8" CCT is used to provide a controlled flow of gas to a pilot orifice where the gas is ignited to form a continuous pilot flame. This flame is kept on to start the main burner in case gas is emitted via the burner ports. The assembly is placed next to the open top burner and fitted on the cooktop frame to ensure that the pilot flame is aligned with the burner ports. It is made of tubing and straight arms and is attached to the gas supply by a fitting.

Dimensions

  • Length: 3 In
  • Width: 0.5 In
  • Height: 1 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/g/a/garland-1801401-4-5-aluminum-pilot-assembly-w-2-straight-arms-1-8-cct-15524-2.jpg

Product Notes

  • Top Burner Pilot Assemblt, [ 4.5" Long ] Aluminium,
  • 2 Straight Arms, 1/8" Cct
  • Garland M42, M44, M54
GARLAND:
Reviews
Write Your Own Review
You're reviewing:Garland 1801401 Range Top Burner Pilot Assembly Aluminum W/2 Straight Arms 4.5" L1/8" CCT
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland 1801401 Pilot Assembly?

Regularly inspect the pilot assembly for dust, grease, or carbon buildup and gently clean the orifice to maintain a steady flame. Ensure all gas connections are secure and properly aligned. This helps maintain consistent ignition and safe operation.

What are common issues with the Garland 1801401 Pilot Assembly ?

  • Weak or inconsistent pilot flame.
  • Clogged pilot orifice.
  • Delayed ignition.
  • Gas flow irregularities.
  • Flame failure or outage.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and electrical supply and allow unit to cool to secure from burns or leaks.

Step2: Remove burner access panel and disconnect old pilot assembly, noting arm positions.

Step3: Mount new pilot assembly securely to bracket, aligning straight arms with burner ports connection.

Step4: Reconnect tubing and check for gas leaks using approved solution, ensuring all fittings are tight.

Step5: Relight pilot and test flame stability.
