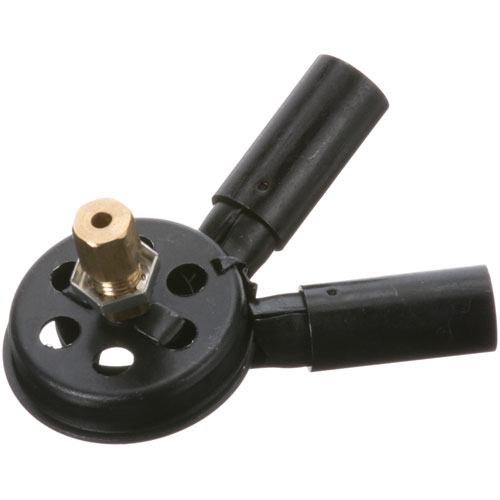

Garland 1801401 Range Top Burner Pilot Assembly Aluminum W/2 Straight Arms 4.5" L1/8" CCT

SKU: 1801401 1-1801401 Brand:
Garland
Availability:
In Stock
(0)
$23.66 Price reduced from $42.25
Save $18.59
Have a Question? +1 (866) 863-0907

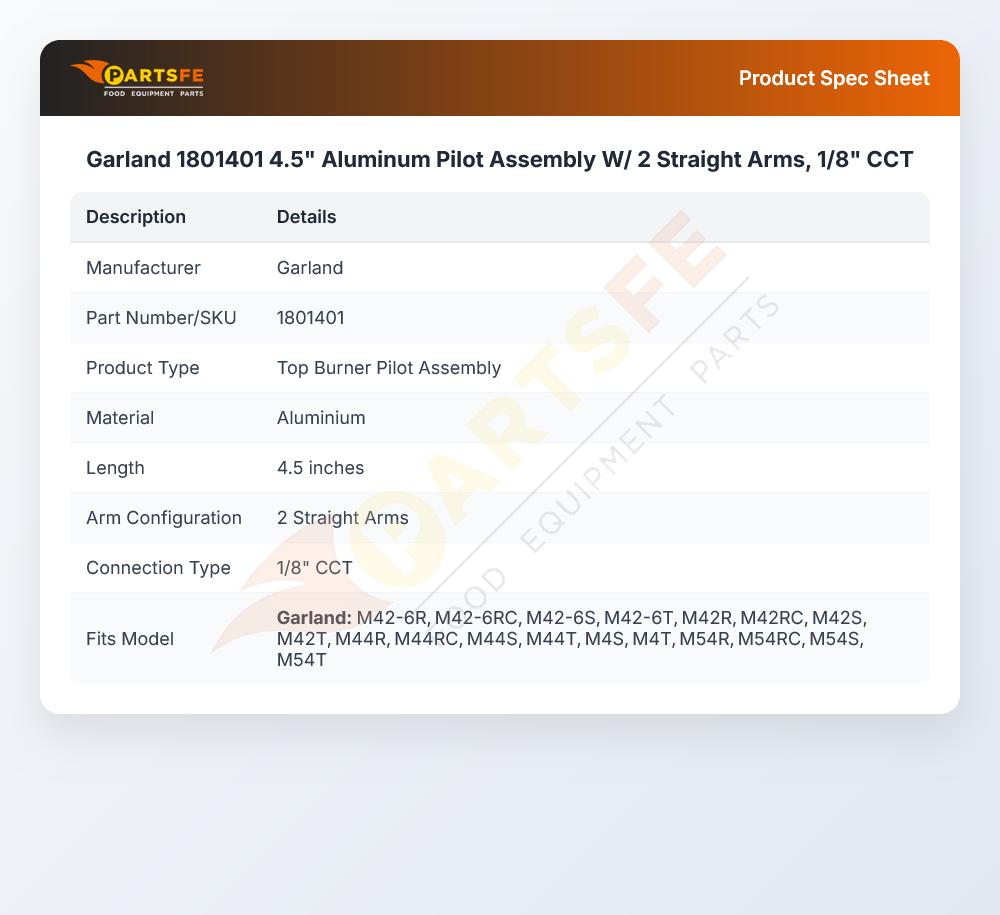

Specifications:

  • Top Burner Pilot Assemblt, [ 4.5" Long ] Aluminium,
  • 2 Straight Arms, 1/8" Cct
  • Garland M42, M44, M54

Description

The Garland 1801401 Range Top Burner Pilot Assembly Aluminium W/2 Straight Arms 4.5" L1/8" CCT is used to provide a controlled flow of gas to a pilot orifice where the gas is ignited to form a continuous pilot flame. This flame is kept on to start the main burner in case gas is emitted via the burner ports. The assembly is placed next to the open top burner and fitted on the cooktop frame to ensure that the pilot flame is aligned with the burner ports. It is made of tubing and straight arms and is attached to the gas supply by a fitting.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3 in
  • Height: 1 in
  • Width: 0.5 in

Step1: Turn off gas and electrical supply and allow unit to cool to secure from burns or leaks.

Step2: Remove burner access panel and disconnect old pilot assembly, noting arm positions.

Step3: Mount new pilot assembly securely to bracket, aligning straight arms with burner ports connection.

Step4: Reconnect tubing and check for gas leaks using approved solution, ensuring all fittings are tight.

Step5: Relight pilot and test flame stability.

  • What maintenance is required for the Garland 1801401 Pilot Assembly?

    Regularly inspect the pilot assembly for dust, grease, or carbon buildup and gently clean the orifice to maintain a steady flame. Ensure all gas connections are secure and properly aligned. This helps maintain consistent ignition and safe operation.

  • What are common issues with the Garland 1801401 Pilot Assembly ?

    • Weak or inconsistent pilot flame.
    • Clogged pilot orifice.
    • Delayed ignition.
    • Gas flow irregularities.
    • Flame failure or outage.
