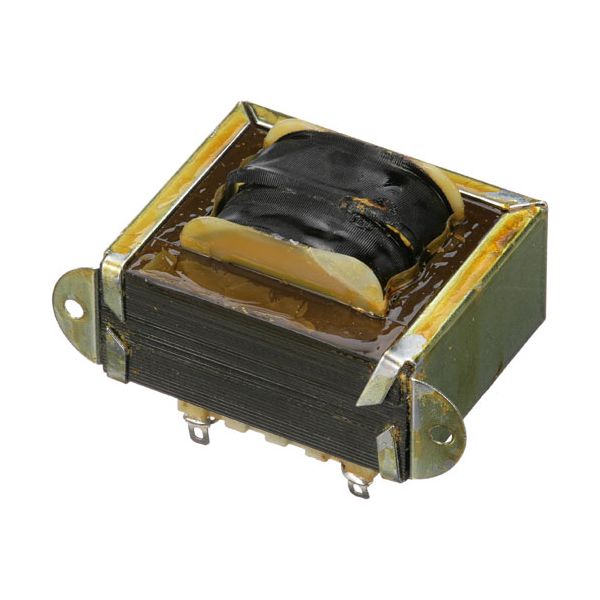

Pitco PP10429-M Fryer Transformer 120/208/240V - 24V 80 VA

SKU: PP10429-M 1-PP10429-M Brand:
Pitco
Availability:
In Stock
(0)
$147.45 Price reduced from $284.00
Save $136.55
Have a Question? +1 (866) 863-0907

Specifications:

  • Transformer, 120/208/240 To 24V, 80 Va
  • Pitco Fryer Pe14D, Sg14, Sg14Di, Sg14R, Sg14Rdi, Sg14Rs,
  • Sg14S-D, Sg14T, Sg14Tdi, Sg18, Sg18Di, Sg18F, Sg18S,
  • Sg18S-D, Sgc, Sgm1824, Sgm24, Sgm34, Sgsebnb-14,
  • Sgsebnb-18,Ssh55, Ssh75, Ssh75Rs

Description

The Pitco PP10429-M Gas Fryer Transformer 120/208/240V-24V is used to convert the high incoming voltage to a stable 24-volt output that will drive low-voltage controls and ignition components in the fryer system. It works based on electromagnetic induction, whereby the energy is transferred among windings to ensure that the correct voltage levels are maintained to ensure safe electrical operation. This transformer is placed within the control compartment or electrical enclosure of the fryer and is placed in close to wiring harnesses and terminal connections to be directly integrated.

Dimensions:

  • Weight: 2.82 lbs
  • Length: 5 in
  • Height: 4 in
  • Width: 4 in

This Part Fits the Following Models

114 models
Pitco 3SSH75RSSTC-S-FD Pitco 4SSH75RSSTC-S-FD Pitco AE14S Pitco AW-SG14R Pitco AW-SG14R-2 Pitco AW-SG14R-3-FD Pitco AW-SG14R-4-FD Pitco AW-SGF14R Pitco BK-SG14RS-PCFM Pitco CKSSH60WC Pitco E400 Pitco E400T Pitco E500D Pitco LJ-FBG18 Pitco LJ-FBG24 Pitco LJ-FBGD18 Pitco LJ-FBGD24 Pitco ME14 Pitco ME2 Pitco MEII Pitco MG14 Pitco MG14S Pitco PE14 Pitco PE-14D Pitco PH-SG14R Pitco PH-SG14R-2 Pitco PH-SG14R-3 Pitco PH-SG14R-4 Pitco PH-SGF14R Pitco RTG14-HHJ Pitco SE14 Pitco SE147 Pitco SE148 Pitco SE148R Pitco SE148X Pitco SE14R Pitco SE14T Pitco SE14TR Pitco SE14TX Pitco SE14X Pitco SE18 Pitco SE184 Pitco SE184R Pitco SE18R Pitco SE18S Pitco SE714 Pitco SEBNB14 Pitco SEBNB18 Pitco SEF184 Pitco SEH50 Pitco SELV14 Pitco SELV14T Pitco SFSE14 Pitco SFSE14R Pitco SFSE14T Pitco SFSE14TR Pitco SFSE14TX Pitco SFSE14X Pitco SFSE18 Pitco SFSE18R Pitco SFSG14 Pitco SFSG14C-S Pitco SFSG14R Pitco SFSG14RS Pitco SFSG14S Pitco SFSG14T Pitco SFSG14TS Pitco SFSG18 Pitco SFSG18S Pitco SFSSH55R Pitco SG14 Pitco SG14DI Pitco SG14R Pitco SG14RDI Pitco SG14RS Pitco SG14S Pitco SG14S-D Pitco SG14T Pitco SG14TDI Pitco SG14TS Pitco SG18 Pitco SG18DI Pitco SG18F Pitco SG18S Pitco SG18S-D Pitco SGC Pitco SGF18 Pitco SGH50 Pitco SGM1824 Pitco SGM24 Pitco SGM34 Pitco SGSEBNB-14 Pitco SGSEBNB-18 Pitco SPINFRESH Pitco SRTE Pitco SRTE14 Pitco SRTG14 Pitco SRTG14-2 Pitco SRTG14S Pitco SSH55 Pitco SSH55-2FD Pitco SSH55SSTC-2FD Pitco SSH60 Pitco SSH60C-S/FD Pitco SSH60W/C-S/FD Pitco SSH75 Pitco SSH75RS Pitco SSHLV14 Pitco SSHLV184 Pitco SSPE14 Pitco TB-SG14 Pitco TB-SG14R Pitco TB-SGF14 Pitco TurboFry 2000
Showing of 114.0

MAGIKITCH'N:

PP10429

PITCO:

PP10429 PP10429M PTPP10429 PTPP10429-M PTPP10429M

Step1: Disconnect power at breaker and apply lockout/tagout.

Step2: Remove fryer access panel and carefully locate the existing old transformer assembly.

Step3: Label and disconnect primary and secondary wiring terminals to avoid miswiring.

Step4: Mount new transformer securely and reconnect wiring per manufacturer's diagram.

Step5: Restore power, test output, and ensure safe operation before closing panel.

  • What maintenance is required for the Pitco PP10429-M Transformer?

    Inspect wiring connections regularly and ensure terminals are tight to prevent overheating. Keep the fryer transformer clean and free from dust or grease buildup to maintain efficient cooling. Always isolate power before servicing to avoid electrical shock hazards.

  • What are common issues with the Pitco PP10429-M Transformer?

    • Voltage output instability or incorrect supply fluctuations.
    • Overheating causing shutdowns or reduced performance.
    • Excessive buzzing or humming noise during operation.
    • Complete failure to power fryer control circuits.
    • Intermittent operation of control relay signals.
