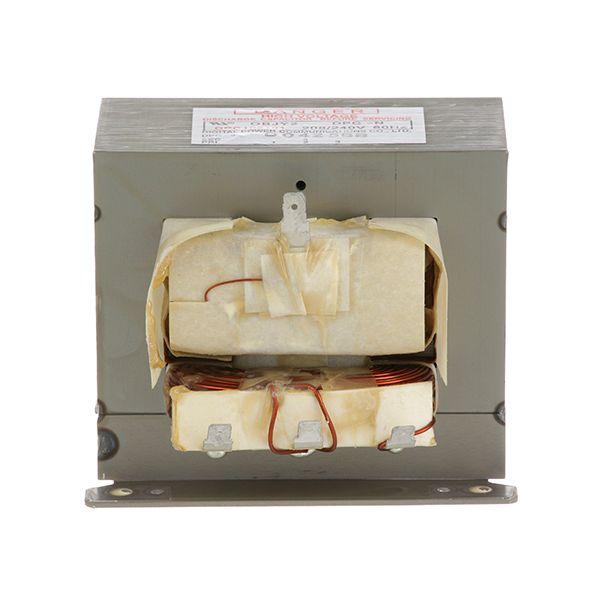

Provides high-voltage electrical conversion for the microwave heating circuit. The TurboChef NGC-3062-1 High Voltage Transformer accepts a 208/240V, 60Hz input and converts the supplied electrical energy into the high voltage required by the magnetron circuit. Through electromagnetic induction between its windings, the transformer supports the voltage requirements of the microwave heating system during programmed cooking operation.
Voltage Conversion:
Converts the supplied line voltage into the higher voltage required by the microwave power circuit. The transformer's primary and secondary windings use electromagnetic induction to transfer electrical energy and produce the required voltage output. Proper voltage conversion allows the high-voltage circuit to receive the electrical supply needed for magnetron operation.
High-Voltage Circuit Support:
Supplies electrical energy to the high-voltage section of the microwave heating system. The transformer operates together with associated components such as the high-voltage capacitor, diode, magnetron, and control circuitry. Proper coordination between these components allows the high-voltage circuit to function during the microwave heating portion of the cooking cycle.
Replacement Guidelines:
Replace the High Voltage Transformer if it is physically damaged, shows signs of overheating or electrical deterioration, or no longer provides the required transformer output. The part number NGC-3062-1, 208/240V voltage specification, and 60Hz frequency should be verified before replacement to ensure the correct high-voltage transformer is selected. Replace the transformer if deterioration affects electrical output, connection integrity, insulation condition, or normal oven operation.
Common Failure Symptoms:
- Microwave heating does not operate as expected.
- Transformer shows visible physical damage or overheating.
- Electrical operation becomes inconsistent during the microwave heating cycle.
- Signs of insulation or electrical deterioration are present.
- High-voltage circuit operation is affected.
Equipment Compatibility:
The TurboChef NGC-3062-1 High Voltage Transformer is specified for equipment requiring this particular transformer configuration. Verify the equipment model, part number, 208/240V input, 60Hz frequency, and high-voltage circuit requirements before purchase.
Technical Specifications:
Brand: TurboChef
Part Number: NGC-3062-1
Product Name: High-Voltage Transformer
Input Voltage: 208/240V
Frequency: 60Hz
