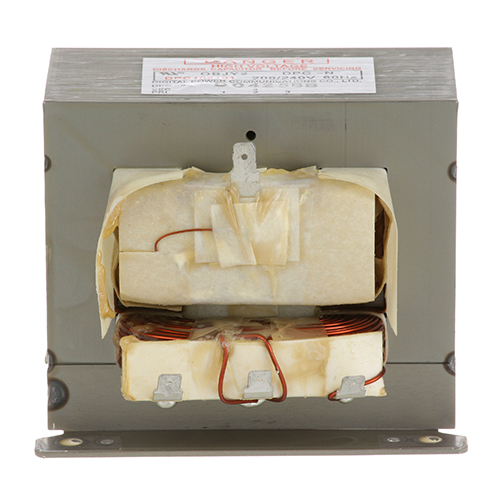

Turbochef NGC-3062-1 Oven Transformer High Voltage 208/240V 60Hz

Voltage Conversion:
Converts the supplied line voltage into the higher voltage required by the microwave power circuit. The transformer's primary and secondary windings use electromagnetic induction to transfer electrical energy and produce the required voltage output. Proper voltage conversion allows the high-voltage circuit to receive the electrical supply needed for magnetron operation.

High-Voltage Circuit Support:
Supplies electrical energy to the high-voltage section of the microwave heating system. The transformer operates together with associated components such as the high-voltage capacitor, diode, magnetron, and control circuitry. Proper coordination between these components allows the high-voltage circuit to function during the microwave heating portion of the cooking cycle.

Replacement Guidelines:
Replace the High Voltage Transformer if it is physically damaged, shows signs of overheating or electrical deterioration, or no longer provides the required transformer output. The part number NGC-3062-1, 208/240V voltage specification, and 60Hz frequency should be verified before replacement to ensure the correct high-voltage transformer is selected. Replace the transformer if deterioration affects electrical output, connection integrity, insulation condition, or normal oven operation.

Common Failure Symptoms:

• Microwave heating does not operate as expected.
• Transformer shows visible physical damage or overheating.
• Electrical operation becomes inconsistent during the microwave heating cycle.
• Signs of insulation or electrical deterioration are present.
• High-voltage circuit operation is affected.

Equipment Compatibility:
The TurboChef NGC-3062-1 High Voltage Transformer is specified for equipment requiring this particular transformer configuration. Verify the equipment model, part number, 208/240V input, 60Hz frequency, and high-voltage circuit requirements before purchase.

Technical Specifications:
Brand: TurboChef
Part Number: NGC-3062-1
Product Name: High-Voltage Transformer
Input Voltage: 208/240V
Frequency: 60Hz

Step1: Disconnect the oven from the power source and verify zero voltage.

Step2: Remove the outer service panel to access the high-voltage compartment.

Step3: Label and disconnect primary and secondary wiring from the existing transformer.

Step4: Unbolt the transformer from its mounting bracket and remove it.

Step5: Install the new transformer, reconnect wiring according to the schematic, secure all fasteners, and restore power for testing.

• What maintenance is required for the Turbochef NGC-3062-1 Transformer High Voltage?

  Inspect electrical connections regularly to ensure they are tight and free from corrosion. Check for overheating, unusual noises, or burnt smells to detect early failures. Keep the transformer clean and ensure proper ventilation to prevent heat buildup and electrical hazards.

• What are the common issues with the Turbochef NGC-3062-1 Transformer High Voltage?

  • Overheating under heavy use.
  • Voltage issues are causing inconsistent oven performance.
  • Burnt or damaged insulation.
  • Occasional humming or buzzing noise.

• What does the TurboChef NGC-3062-1 transformer do?

  It converts the supplied 208/240V electrical input into the high voltage required by the microwave heating circuit.

• How does a high-voltage transformer support microwave heating?

  It supplies the high-voltage circuit with the electrical energy required for the magnetron to generate microwave energy.

• What components operate with the high-voltage transformer?

  The transformer works as part of the high-voltage circuit with components such as the magnetron, capacitor, diode, and associated control circuitry.

• What are common signs of a high-voltage transformer problem?

  Loss of microwave heating, unusual humming, overheating, burnt insulation, discolouration, or high-voltage circuit failure can indicate transformer problems.

• Why is the transformer's input voltage important?

  The transformer must receive the electrical input specified for its design so that it can produce the required high-voltage output for the connected circuit.
