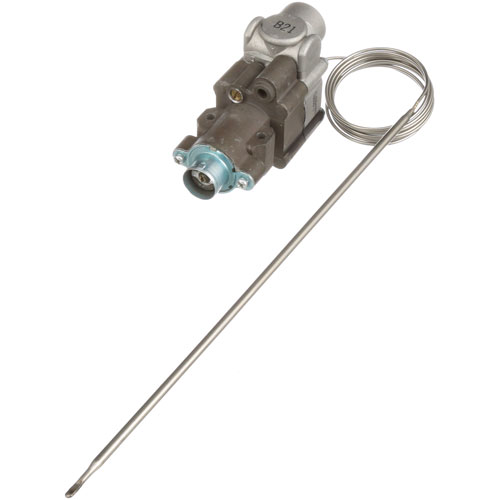

Garland 1086700 Range Thermostat BJWA 250-550°F

SKU: 1086700 1-1086700 Brand:
Garland
Availability:
In Stock
(2)
$190.45 Price reduced from $293.46
Save $103.01
Have a Question? +1 (866) 863-0907

Specifications:

  • Viewed From Rear: See "Bj Outlet Positions"
  • W/ By-Pass Adj At Top & Gas Inlet Down
  • Bjwa T~
  • Stat, Outlet 3/8" For 7/16 Cct "C" Rear,
  • If Required Order #262183 Adapter 3/8"Npt To 7/16"Cct
  • Rotation 0 Degrees, Temp 250-550, Cap 48",
  • Bulb 3/16 X 11 3/16, (Dial Not Included).
  • Gen Use Dial # 22-1029 Off-Low-250-500
  • [ 2" Dia ] [ Off-Low-250-500] [Mount .240]
  • [Position 4 Way], W/ Adapter # 26-1197
  • For Bj Kits See # 46-1053 Or # 46-1054
  • Garland Oven Px624Bg (Standard Oven).
  • Series: G30A (Prior To 2/82).
  • Us Range Oven Model: S102626, Series: Px, Sunfire S Series

Description

The Garland 1086700 Range Thermostat BJWA 250-550°F is created to adjust the amount of heat that is produced in controlled cooking systems. It works by detecting the alteration of temperature and switching on and off the control contacts to keep the settings within the range of 250 to 550 Fahrenheit. This thermostat is mounted behind the control panel and its sensing element is placed close to the heated space so that it can sense the thermal change precisely. It is an essential component of the temperature control mechanism.

Dimensions:

  • Weight: 0.7 lbs
  • Length: 2 in
  • Height: 1.38 in
  • Width: 6.13 in

Step1: Turn off power to the appliance before installation.

Step2: Remove the old thermostat by disconnecting wires carefully.

Step3: Mount the new thermostat in the original location using screws.

Step4: Reconnect wires to the corresponding terminals.

Step5: Restore power and test temperature settings to ensure proper operation.

  • What maintenance is required for the Garland 1086700 Thermostat?

    Inspect the thermostat and capillary tube for bends or damage regularly. Ensure gas connections are tight and leak-free. Calibrate the thermostat periodically for accurate temperature control, and always turn off the appliance before performing any service.

  • What are common issues with the Garland 1086700 Thermostat?

    • Inaccurate temperature readings.
    • Thermostat fails to actuate the gas valve.
    • Capillary tube kinks or breaks.
    • Intermittent burner operation.

Customer Reviews

5 Based on 2 reviews
5 ★
2
4 ★
0
3 ★
0
2 ★
0
1 ★
0
2 reviews
  • Accurate Control
    Greg —

    Easy to install, rear gas inlet connection works smoothly.

  • Smooth Operation
    Armando —

    Durable thermostat, maintains stable heat levels reliably.
