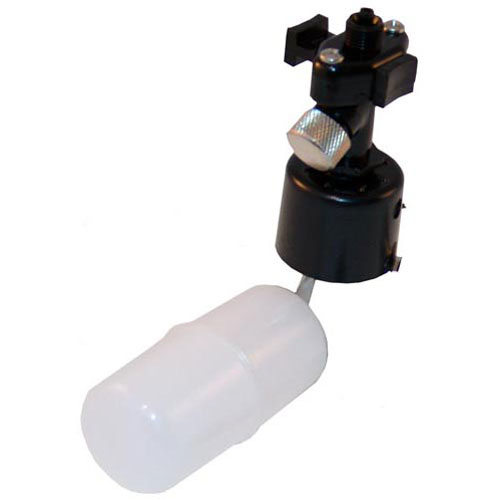

Manitowoc 8369049 Ice Machine Float Valve Assembly W/ Shut-Off & Strainer
Specifications:
- Float Valve Assembly, Small Orifice
- Built-In Shut-Off Valve And Water Strainer.
- Manitowoc Ice Machine Series: 100, 150, 200 (Except C0200),
- 250, 320, 400 (Except C0400), 420, 450, 600 (Except
- B0600), 1100, 1200.
Description
Dimensions:
- Weight: 0.14 lbs
- Length: 6 in
- Height: 3.5 in
- Width: 1.7 in
Product Overview:
Regulates incoming water to the reservoir, the Manitowoc 8369049 Ice Machine Float Valve Assembly With Shut-Off & Strainer is an OEM water-control component that controls water entry according to changing water level in applicable commercial ice machines. The float mechanism operates the valve as the reservoir level changes, while the integrated shut-off valve provides an additional water-control point. A built-in strainer forms part of the water-entry path and screens debris from incoming water. The assembly is specified as a small-orifice float valve configuration.
Water Level Control:
The float mechanism responds to changes in reservoir water level and operates the valve to regulate incoming water. As the water level changes, the valve adjusts water admission to maintain the required level for the ice-making system. This level-based operation controls the amount of incoming water entering the reservoir during normal equipment operation.
Inlet Water Management:
An integrated shut-off valve provides an additional point for controlling water entry into the inlet assembly. A built-in strainer screens debris from the incoming water path before water reaches the valve assembly. Together, these components form part of the water inlet arrangement responsible for regulating and managing water supplied to the ice machine reservoir.
Replacement Guidelines:
Replace the Manitowoc 8369049 Ice Machine Float Valve Assembly With Shut-Off & Strainer when the float valve no longer regulates incoming water properly or fails to maintain the required reservoir level. Replacement may also be necessary when the assembly has restricted water flow, leakage, a sticking or damaged float, a clogged or damaged strainer, or a shut-off valve that no longer controls water entry as intended.
Common Failure Symptoms:
- Insufficient water entering the reservoir.
- Water continuing to enter after the required level is reached.
- Inconsistent water levels during ice production.
- Restricted water flow through the inlet assembly.
- Water leakage around the valve or connections.
- Float movement becoming inconsistent or ineffective.
Equipment Compatibility:
The Manitowoc 8369049 Ice Machine Float Valve Assembly With Shut-Off & Strainer is an OEM water-control assembly intended for compatible Manitowoc ice machines requiring a small-orifice float valve configuration with an integrated shut-off valve and strainer.
Technical Specifications:
Brand: Manitowoc
Part Number: 8369049
Product Type: Float Valve Assembly
Valve Type: Small Orifice
MANITOWOC:
83-6904-9 MAN8369049
Step1: Turn off the water supply to the ice machine.
Step2: Remove the old float valve assembly by unscrewing mounting points.
Step3: Install the new valve assembly, attaching the shut-off and strainer correctly.
Step4: Tighten all connections to prevent leaks.
Step5: Restore water supply and check for proper operation.
-
What maintenance is required for the Manitowoc 8369049 Float Valve Assembly?
Regularly inspect the float valve for mineral buildup, debris, or leaks. Clean the strainer and ensure the shut-off functions properly. Proper maintenance ensures consistent water flow, prevents flooding, and maintains efficient ice production.
-
What are common issues with the Manitowoc 8369049 Float Valve Assembly?
- Clogged or restricted water flow.
- Leaking around connections.
- Float sticking or failing to shut off.
- Damaged strainer or debris buildup.
