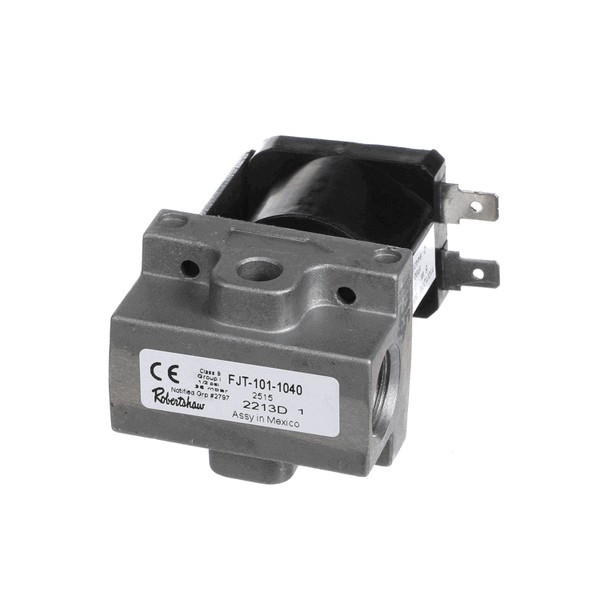

Rankin Delux RD100-05 Griddle Gas Solenoid Valve 120V 50/60Hz

SKU: RD100-05 1-RD100-05 Brand:
Rankin Delux
Availability:
In Stock
(0)
$98.23 Price reduced from $185.00
Save $86.77
Have a Question? +1 (866) 863-0907

Specifications:

  • 120V, 3/8" Fpt In/Out, Nat/Lp, 60Hz, 5W, .05A, Wire Leads
  • Rankin Delux Rd-100

Description

The Rankin Delux RD100-05 Griddle Gas Solenoid Valve 120V 50/60Hz is an electromechanical gate that controls the flow of fuel to be directed to the burner assembly. When the thermostat requests the heating system to turn on, an electric current is supplied through the internal coil to generate a magnetic field, which pulls the plunger open and lets the fuel pass through the orifice. This is fitted in the manifold piping system that is situated behind the front operator screen of the commercial cooking surface. The unit is powered by standard 120V alternating current.

Dimensions:

  • Weight: 0.54 lbs
  • Length: 4 in
  • Height: 3 in
  • Width: 4 in

ALTO-SHAAM:

VA-34087

AMERICAN RANGE:

10415 A80101

IMPERIAL:

1134

MAGIKITCH'N:

2V-60142101 60142101

PITCO:

60142101

RANDELL:

RD85-06

RANKIN DELUX:

RD85-06

STAR MFG:

2V-60142101

Step1: Turn off power and shut off fluid supply before starting.

Step2: Depressurize the system and remove the old valve.

Step3: Confirm flow direction and position the new valve correctly.

Step4: Apply thread sealant to fittings and connect lines.

Step5: Secure electrical connections per wiring specifications.

Step6: Restore supply and power, then test for leaks and operation.

  • What maintenance is required for the Rankin Delux RD100-05 Solenoid Valve?

    Regularly inspect and clean valve body to prevent debris buildup. Check solenoid coil and electrical connections for corrosion or loose wiring. Replace worn seals and ensure alignment to avoid leaks and maintain performance.

  • What are common issues with the Rankin Delux RD100-05 Solenoid Valve?

    • Valve sticking due to debris buildup causing reduced or blocked flow.
    • Coil failure or overheating leading to no actuation or weak response.
    • Leakage from worn seals resulting in pressure loss.
    • Electrical connection faults causing intermittent operation or failure to open.
