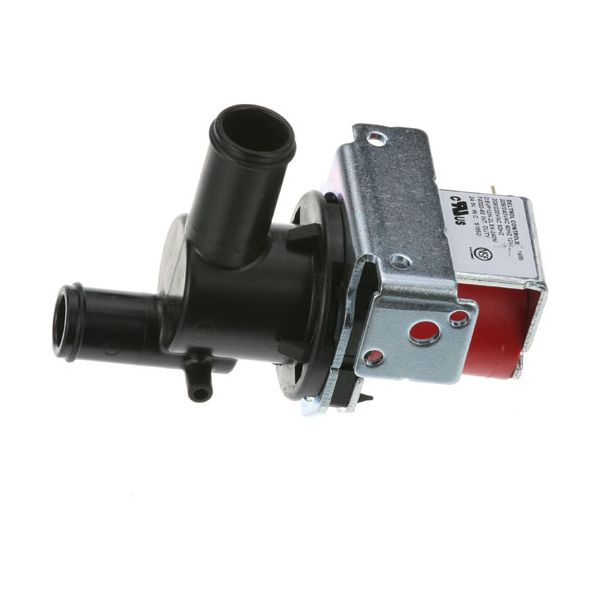

Manitowoc 000001768 Ice Machine Water Dump Valve 208-230V 50-60Hz

Product Overview:
Controls the discharge of water from the ice machine’s water circuit during designated operating stages. The Manitowoc 000001768 Ice Machine Water Dump Valve is an OEM valve for specified Manitowoc commercial ice machine applications requiring a 208–230V, 50–60Hz configuration. Its electrically actuated design supports controlled water release as part of the machine’s water-management cycle.

Water Discharge Control:
Regulates water removal through an electrically actuated internal valve mechanism. When energized by the required control signal, the valve opens the designated discharge path and allows water to leave the water circuit. When de-energized, the valve closes to retain water within the system for the next required stage of operation. This controlled action coordinates water discharge with the programmed operating sequence.

Drainage Cycle:
Controls the release of water from the machine's water circuit at the designated point in the operating sequence. The valve opens when the control system initiates the discharge function, allowing accumulated water to flow through the drain path. Closing the valve after the required discharge helps restore the water circuit for the next stage of operation.

Replacement Guidelines:
The Manitowoc 000001768 Water Dump Valve may require replacement when the valve fails to open or close as required. Restricted drainage, continuous water discharge, leakage, or intermittent valve operation can indicate valve deterioration and interfere with normal water management.

Common Failure Symptoms:

• Water does not drain when required
• Slow or restricted water discharge
• Continuous water drainage
• Leakage through the valve
• Intermittent valve operation
• Abnormal water levels during operation

Equipment Compatibility:
The Manitowoc 000001768 Ice Machine Water Dump Valve is an OEM component intended for applicable Manitowoc commercial ice machine configurations requiring this valve. Always verify the complete equipment model number, existing valve part number, and required electrical specification against applicable Manitowoc parts documentation before purchasing.

Technical Specifications:
Brand: Manitowoc
Part Number: 000001768
Product Type: Water Dump Valve
Voltage: 208–230V
Frequency: 50–60Hz
Application: Ice Machine

Step1: Power off the ice machine and turn off the water supply.

Step2: Remove the old dump valve by disconnecting hoses and mounting screws.

Step3: Clean the connection area to prevent leaks.

Step4: Position the new valve correctly and secure it.

Step5: Reconnect hoses ensuring tight, leak-free connections.

Step6: Turn on water and power, then check the valve operation.

Step7: Inspect for leaks and proper water drainage.

• What maintenance is required for the Manitowoc 000001768 Water Dump Valve?

  Inspect the valve for mineral buildup, debris, or corrosion that may restrict water flow. Ensure wiring and connections are secure. Test operation during ice cycles to confirm the valve opens and closes fully, maintaining proper water dumping and ice production.

• What are common issues with the Manitowoc 000001768 Water Dump Valve?

  • Erratic opening during cycles.
  • Delayed dumping response.
  • Water is leaking around valve fittings.
  • Reduced water flow through the valve.

• What maintenance is required for the Manitowoc 000001768 Water Dump Valve?

  Periodically check the dump valve for proper operation and remove any debris or mineral buildup. Verify that all water connections are tight and corrosion-free. Ensuring smooth valve operation prevents water flow interruptions and potential ice machine malfunctions.

• What are common issues with the Manitowoc 000001768 Water Dump Valve?

  • Valve is failing to trigger during the ice cycle.
  • Erratic or inconsistent water discharge timing.
  • Sudden stoppage causes water to remain in the bin.
  • Water leaking around seals or fittings.
