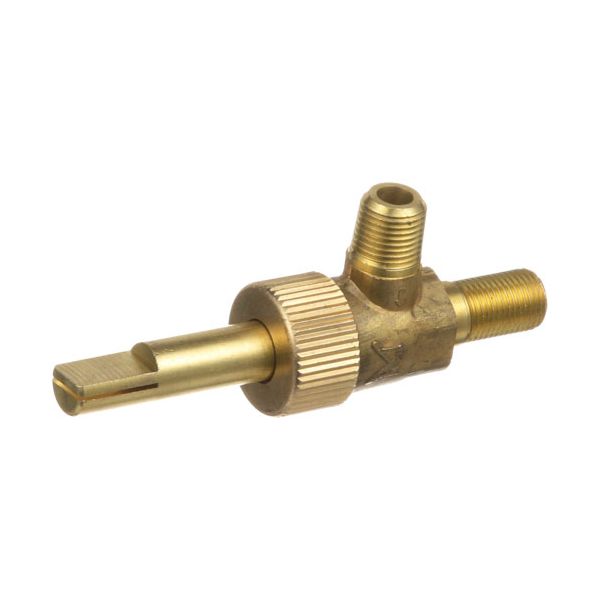

American Range A80109 Burner Valve 1/8" MPT X 3/8"-27

Rating:
5 5 1
1  Review Add Your Review
Special Price $27.87 Regular Price $36.20
In stock
SKU
A80109
Add to Wish List
Griddle & Grill Parts, Burner Valves,
Manufacturer:
The American Range A80109 Burner Valve 1/8" internal mechanism is adjusted by rotating the handle of the valve to allow the flow when the passage is open and to stop it when it is closed. It is fitted in a system in which the 1/8-inch male pipe thread is attached to the supply side and the 3/8-27 fitting is attached to the downstream component. This valve is used in applications that are intended to use that thread configuration in commercial kitchen equipment.

Dimensions

  • Length: 3 In
  • Width: 1.25 In
  • Height: 0.7 In
  • Weight: 0.3 lbs
https://partsfe.com/media/catalog/product/a/m/american-range-a80109-valve-1-8-mpt-x-3-8-27-33719-2.jpg

Product Notes

  • Burner Valve, 1/8" Mpt X 3/8"-27, [ Rotation Off/On ]
  • [Stem Position Down] [Stem Size .240" ]
  • [Ctr Inlet To End Of Stem 2" ] [Angle - 90 Degrees],
  • For Dcs Broiler/Griddle, Char Rock Broiler 2, Use
  • Chrome Knob # 22-1165
  • For Dcs Cheesemelter Salamander Use Knob # 22-1164
  • For Imperial Range Icra, Ir, Ispa, Roaster Ipr, Ipra, Hot
  • Plate Ihpa, Grill Imga, Ir, Use Chrome Knob # 22-1164
  • American Range Broiler Aecb, Arkb, Arrb
  • Dynamic Cooking Systems Broiler/Griddle,
  • ***Not For Magikitch'N 2802-1318100 And Apw 2068000 - Use
  • Ap# 521166***
  • ***For Garland 26878Xx Use Ap# 8012633***
AMERICAN RANGE:
BAKERS PRIDE:
BKPR3032X, R3032X
COMSTOCK CASTLE:
DYNAMIC COOKING SYSTEMS:
13034, 210764, DCS210764
IMPERIAL:
RANDELL:
RANKIN DELUX:
ROYAL RANGE:
0531-A18-3, ROY0531-A18-3
TRI-STAR:
R3032A, TRSR3032A
Reviews 1
Write Your Own Review
You're reviewing:American Range A80109 Burner Valve 1/8" MPT X 3/8"-27
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the American Range A80109 Valve?

Inspect for leaks or corrosion at connection points. Clean any debris from the valve seat to maintain proper flow. Check for smooth operation when opening or closing. Always turn off the gas or water supply before servicing.

What are common issues with the American Range A80109 Valve?

  • Valve sticking or hard to turn.
  • Gas or water leaks.
  • Inconsistent flow regulation.
  • Damaged seals or packing.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off the appliance's power and gas supply to ensure safety.

Step2: Remove the appliance's access panel to expose the valve area.

Step3: Carefully disconnect the old valve from the gas and electrical lines.

Step4: Position the new valve correctly and secure it in place.

Step5: Reconnect the gas tubing and electrical wires tightly.

Step6: Inspect connections for leaks using a soapy water test.

Step7: Restore gas and power, then ignite the appliance to confirm proper operation.
