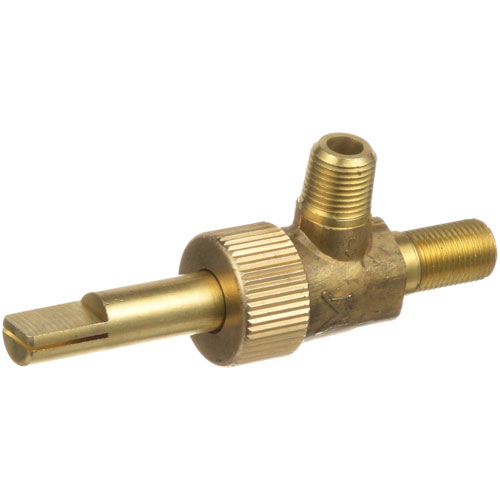

American Range A80109 Burner Valve 1/8" MPT X 3/8"-27

SKU: A80109 1-A80109 Brand:
American Range
Availability:
In Stock
(1)
$42.48
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Valve, 1/8" Mpt X 3/8"-27, [ Rotation Off/On ]
  • [Stem Position Down] [Stem Size .240" ]
  • [Ctr Inlet To End Of Stem 2" ] [Angle - 90 Degrees],
  • For Dcs Broiler/Griddle, Char Rock Broiler 2, Use
  • Chrome Knob # 22-1165
  • For Dcs Cheesemelter Salamander Use Knob # 22-1164
  • For Imperial Range Icra, Ir, Ispa, Roaster Ipr, Ipra, Hot
  • Plate Ihpa, Grill Imga, Ir, Use Chrome Knob # 22-1164
  • American Range Broiler Aecb, Arkb, Arrb
  • Dynamic Cooking Systems Broiler/Griddle,
  • ***Not For Magikitch'N 2802-1318100 And Apw 2068000 - Use
  • Ap# 521166***
  • ***For Garland 26878Xx Use Ap# 8012633***

Description

The American Range A80109 Burner Valve 1/8" internal mechanism is adjusted by rotating the handle of the valve to allow the flow when the passage is open and to stop it when it is closed. It is fitted in a system in which the 1/8-inch male pipe thread is attached to the supply side and the 3/8-27 fitting is attached to the downstream component. This valve is used in applications that are intended to use that thread configuration in commercial kitchen equipment.

Dimensions:

  • Weight: 0.3 lbs
  • Length: 3 in
  • Height: 0.7 in
  • Width: 1.25 in

AMERICAN RANGE:

10419 A80104

BAKERS PRIDE:

BKPR3032X R3032X

COMSTOCK CASTLE:

18-63

DYNAMIC COOKING SYSTEMS:

13034 210764 DCS210764

IMPERIAL:

1610

JADE RANGE:

4418500100 4418500200

RANDELL:

ORHP-08 SSPR-13

RANKIN DELUX:

ORHP-08 SSPR-13

ROYAL RANGE:

0531-A18-3 ROY0531-A18-3

TRI-STAR:

R3032A TRSR3032A

Step1: Shut off the appliance's power and gas supply to ensure safety.

Step2: Remove the appliance's access panel to expose the valve area.

Step3: Carefully disconnect the old valve from the gas and electrical lines.

Step4: Position the new valve correctly and secure it in place.

Step5: Reconnect the gas tubing and electrical wires tightly.

Step6: Inspect connections for leaks using a soapy water test.

Step7: Restore gas and power, then ignite the appliance to confirm proper operation.

  • What maintenance is required for the American Range A80109 Valve?

    Inspect for leaks or corrosion at connection points. Clean any debris from the valve seat to maintain proper flow. Check for smooth operation when opening or closing. Always turn off the gas or water supply before servicing.

  • What are common issues with the American Range A80109 Valve?

    • Valve sticking or hard to turn.
    • Gas or water leaks.
    • Inconsistent flow regulation.
    • Damaged seals or packing.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Safe & effective
    Sandbergh —

    Effective valve, operates exactly as needed
