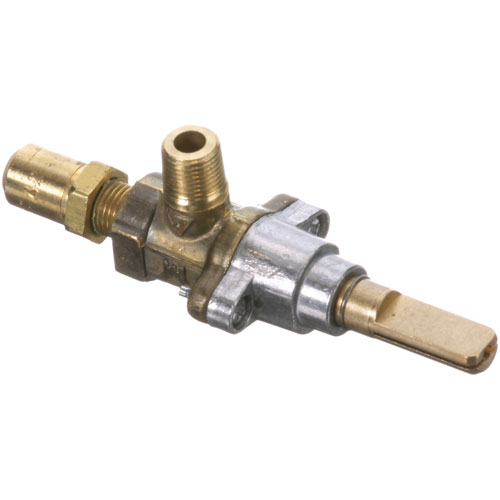

Vulcan Hart VH107076ALN Gas Burner Valve 1/8" MPT X 42 Orifice

SKU: VH107076ALN 1-VH107076ALN Brand:
Vulcan Hart
Availability:
Out of Stock
(0)
$22.90 Price reduced from $23.37
Save $0.47
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Valve
  • [ 1/8" Mpt X 3/8"-27, #42 Orifice Adjustable][ Rotation
  • Off/On]
  • [Stem Position Down] [Stem Size .240"]
  • [Ctr Inlet To End Of Stem 2-1/8"] [ 90 Degree Angle],
  • [ Comes With Orifice #42 ]
  • Cntr Of Stem To Bottom Of Inlet 7/8",
  • Cecilware Broiler Bc, Ccb
  • Us Range Broiler Bbq- 48,60,72, C-Hds-A, Rba
  • Grill/Griddle Performer Ii, Performer Pf, Rgta
  • Hotplate Rhpa

Description

The Vulcan Hart VH107076ALN Gas Burner Valve is an accurate fuel control unit that is used in compatible commercial cooking equipment. It has a 1/8" MPT connection and a 42 orifice to control the flow of gas into the burner assembly. The valve is installed in the gas circuit of the appliance and it changes the manual input to a controlled fuel supply to ensure the stable combustion. In commercial kitchens, it assists in the operation of the burners by ensuring the correct level of heat is controlled.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.25 in
  • Height: 3.63 in
  • Width: 1.25 in

Step1: Turn off the appliance and shut off the gas supply completely.

Step2: Disconnect power to the unit if applicable.

Step3: Remove access panels to reach the existing burner gas valve.

Step4: Carefully disconnect the gas line and any electrical connectors from the old valve.

Step5: Remove the old valve and install the new valve in the same orientation.

Step6: Reconnect the gas line and electrical connections securely.

Step7: Restore gas and power, then test for proper operation and check for leaks.

  • What maintenance is required for the Vulcan Hart VH107076ALN Burner Gas Valve?

    Inspect the valve for leaks and ensure connections are secure. Clean grease or debris from the valve. Verify proper operation before use. Routine maintenance ensures efficient gas flow and consistent burner performance.

  • What are common issues with the Vulcan Hart VH107076ALN Burner Gas Valve?

    • Gas flow restriction or inconsistency.
    • Valve is sticking or failing to open properly.
    • Leaks due to worn seals or corrosion.
    • Improper flame control affects cooking.
    • Delayed ignition or uneven heating patterns.
