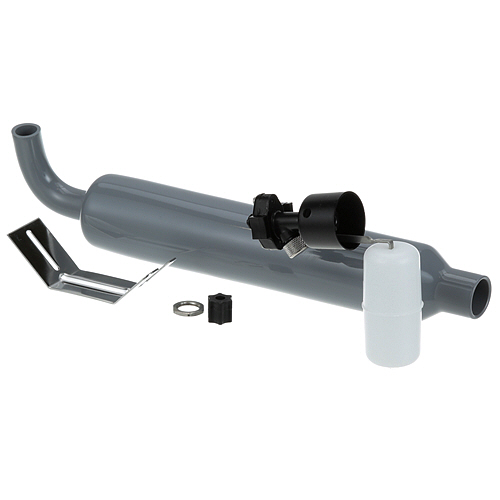

Manitowoc 7602133 Ice Machine Water Float Valve Assembly

Product Overview:
Regulates water flow within the ice machine’s water supply system, the Manitowoc 7602133 Ice Machine Water Float Valve Assembly is an OEM component intended for use in ice-making equipment. Its float valve assembly design serves as a water-control component within the ice machine’s water system.

Float-Control Mechanism:
The float mechanism responds to changes in the water level, providing the movement needed for the valve assembly to regulate water admission. This mechanical action links the float’s position with the valve’s opening and closing function, supporting controlled water entry into the ice machine.

Replacement Guidelines:
Replace the Manitowoc 7602133 Water Float Valve Assembly when the valve becomes worn, damaged, stuck, or unable to regulate the water level properly. A deteriorated assembly can lead to inconsistent water supply or improper water levels during normal ice machine operation.

Common Failure Symptoms:

• Water level becomes too high or too low
• Water supply becomes inconsistent
• Valve remains open or fails to open properly
• Water continues entering the machine when it should stop
• Float mechanism becomes stuck or damaged

Equipment Compatibility:
The Manitowoc 7602133 Water Float Valve Assembly is intended for compatible Manitowoc commercial ice machine applications. Verify the original part number and equipment requirements before ordering to ensure the replacement matches the existing water-control assembly.

Technical Specifications:
Brand: Manitowoc
Part Number: 7602133
Product Type: Water Float Valve Assembly
Equipment Type: Ice Machine

Step1: Disconnect power and shut off water supply to ice machine to prevent shock or flooding.

Step2: Remove access panel, locate old float valve assembly, disconnect tubing and mounting hardware safely.

Step3: Install new valve assembly in same orientation, secure bracket firmly.

Step4: Reconnect water line ensuring tight, leak-free seal.

Step5: Restore power, run cycle, check fill level and check for leaks.

• What maintenance is required for the Manitowoc 7602133 Water Float Valve Assembly?

  Inspect ice machine float valve assembly for mineral buildup and clean with mild descaler to maintain proper water levels. Routine checks ensure consistent ice production and prevent overflow or dry operation; always shut off water and power before servicing for safety.

• What are common issues with the Manitowoc 7602133 Water Float Valve Assembly?

  • Mineral scale buildup affecting water flow.
  • Float valve sticking or failing to regulate water level.
  • Leaks or cracks in valve housing.
  • Inconsistent ice production due to improper fill levels.
  • Reduced water intake from clogged inlet screen.
