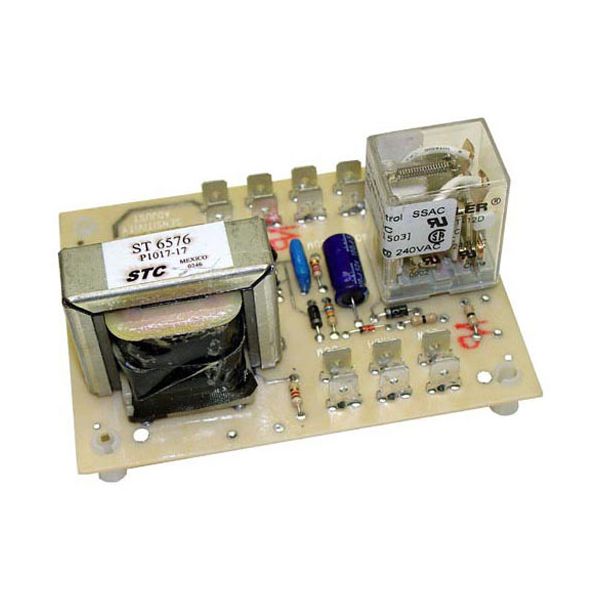

Jackson 6680-200-01-19 Dishwasher Water Level Control

Be the first to review this product
Special Price $317.26 Regular Price $536.28
In stock
SKU
6680-200-01-19
Add to Wish List
Other Categories, Additional Parts, General Parts
Manufacturer:
The Jackson 6680-200-01-19 Water Level Control Board serves as an vital element which controls water levels in Jackson dishwashers with models 10AB, 10APRB, 44CE, 44PRW, 100B, 100L, 100PRB, 100, and 150 Conserver. This new-style board operates at 220V to improve dishwasher efficiency and maintain proper water usage. The updated board features a relay system that cannot be replaced which leads to enhanced reliability and decreased maintenance requirements. The partprovides simple integration and enables quick installation which enhances both improve dishwashing system performance and operational life. The control board serves restaurants perfectly by delivering steady wash results and minimizing water consumption.

Dimensions

  • Length: 4.5 In
  • Width: 3 In
  • Height: 2.25 In
  • Weight: 0.54 lbs
https://partsfe.com/media/catalog/product/j/a/jackson-6680-200-01-19-dishwasher-water-level-control-96257-2.jpg

Product Notes

  • Water Level Control Board, 220V, New Style.
  • The Relay Is No Longer Replaceable On The New Style Board.
  • Jackson Disheasher 10Ab, 10Aprb, 44Ce, 44Prw,
  • 100B, 100L, 100Prb, 100 & 150 Conserver.
Write Your Own Review
You're reviewing:Jackson 6680-200-01-19 Dishwasher Water Level Control
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 6680-200-01-19 Water Level Control?

Inspect regularly for mineral buildup, ensure electrical connections are secure, clean sensor ports, verify calibration, prevent scale, and follow safety procedures by disconnecting power before servicing to avoid electrical hazards and inaccurate dishwasher water level control.

What are common issues with the Jackson 6680-200-01-19 Water Level Control?

  • Incorrect water level sensing due to calibration drift or pressure tube blockage.
  • Electrical contact failure or intermittent switching.
  • Stuck float mechanism or mechanical binding.
  • Wiring corrosion leading to erratic operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and water supply to the dishwasher to avoid electrical shock and leaks.

Step2: Remove access panel and locate the existing old water level control assembly.

Step3: Disconnect wiring harness and water tube carefully, noting positions.

Step4: Install new water level control, secure mounting screws, reconnect wiring and tubing.

Step5: Restore panel, turn on water and power, test for proper fill level and leaks.
