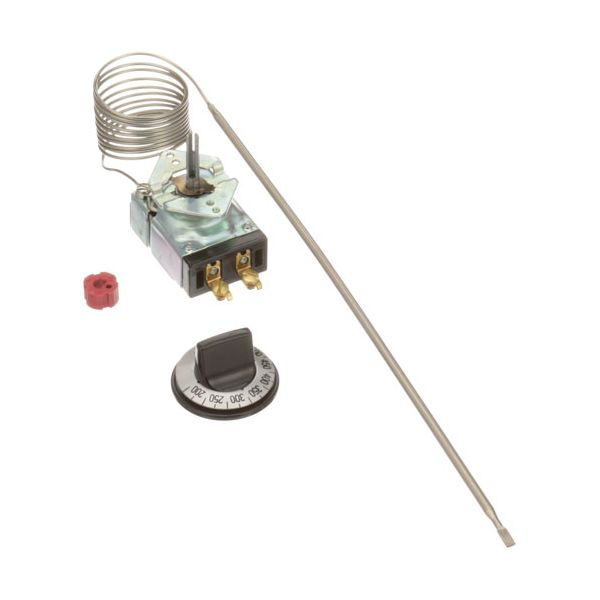

main product photo

Blodgett Z1173542 Oven Thermostat W/Dial 3/16" X 11-5/8" Bulb

Be the first to review this product
Special Price $265.45 Regular Price $508.53
In stock
SKU
Z1173542
Add to Wish List
Oven Parts, Oven Thermostats, Shop by manufacturers
Manufacturer:
The Blodgett Z1173542 Oven Thermostat with Dial works by measuring the temperature inside using its bulb so that its dial can control the amount of heat. The dial interface can be used to control the set temperature and send signals to sustain the chosen heat. The thermostat is to be installed in the oven cavity, and the bulb with dimensions 3/16" by 11-5/8" is placed in such a way that it is able to sense any temperature changes. It is also compatible and can be installed in existing mounting points.

Dimensions

  • Length: 11.525 In
  • Width: 0.188 In
  • Height: 2 In
  • Weight: 0.8 lbs
https://partsfe.com/media/catalog/product/b/l/blodgett-z1173542-oven-thermostat-w-3-16-x-11-5-8-bulb-77641.jpg

Product Notes

  • Thermostat,
  • Kxp, Temp 175-500, Bulb 3/16" X 11-5/8"
  • Cap 60", Mount 1
  • Dial Kit # 22-1128 Off-550-200 Insert (Closest We Have)
  • If Oem Knob Is Preffered, Use Ap# 1661140
  • Southbend Oven All Co Prefix Ovens~
  • X10A.
  • Series: V, Vs, X, Xs Gas Ovens, 300 Double Ovens.
  • Platinum Series (Units With P Prefix)
BLODGETT:
Reviews
Write Your Own Review
You're reviewing:Blodgett Z1173542 Oven Thermostat W/Dial 3/16" X 11-5/8" Bulb
Your Rating
FAQS
Customer Questions
What maintenance is required for the Blodgett Z1173542 Thermostat?

Keep the oven thermostat and sensing bulb clean and free from grease buildup to ensure accurate temperature control. Inspect wiring connections and bulb placement regularly for wear or looseness. Calibrate periodically to maintain consistent oven performance and safety.

What are common issues with the Blodgett Z1173542 Thermostat?

  • Inaccurate temperature readings.
  • Faulty or loose sensor bulb.
  • Wiring connection failure.
  • Oven overheating or underheating.
  • Bulb damage from heat exposure.
  • Control failure causing unstable cycling.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and gas supply to oven, allow it to cool completely before service.

Step2: Remove control panel cover, then carefully detach old thermostat while labeling wiring connections.

Step3: Install new thermostat bulb into sensing tube, secure mounting bracket firmly in place.

Step4: Reconnect wires according to wiring diagram, ensure tight secure connections and proper insulation.

Step5: Restore power and gas supply, test temperature calibration and verify safe operation.
