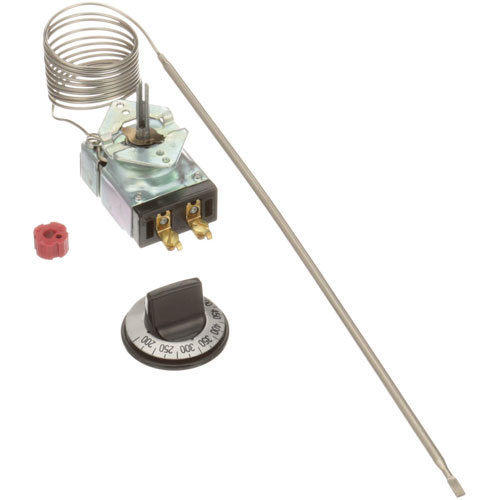

Blodgett Z1173542 Oven Thermostat W/Dial 3/16" X 11-5/8" Bulb

SKU: Z1173542 1-Z1173542 Brand:
Blodgett
Availability:
In Stock
(0)
$278.72 Price reduced from $533.95
Save $255.23
Have a Question? +1 (866) 863-0907

Specifications:

  • Thermostat,
  • Kxp, Temp 175-500, Bulb 3/16" X 11-5/8"
  • Cap 60", Mount 1
  • Dial Kit # 22-1128 Off-550-200 Insert (Closest We Have)
  • If Oem Knob Is Preffered, Use Ap# 1661140
  • Southbend Oven All Co Prefix Ovens~
  • X10A.
  • Series: V, Vs, X, Xs Gas Ovens, 300 Double Ovens.
  • Platinum Series (Units With P Prefix)

Description

The Blodgett Z1173542 Oven Thermostat with Dial works by measuring the temperature inside using its bulb so that its dial can control the amount of heat. The dial interface can be used to control the set temperature and send signals to sustain the chosen heat. The thermostat is to be installed in the oven cavity, and the bulb with dimensions 3/16" by 11-5/8" is placed in such a way that it is able to sense any temperature changes. It is also compatible and can be installed in existing mounting points.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 11.53 in
  • Height: 2 in
  • Width: 0.19 in

This Part Fits the Following Models

124 models
Blodgett B36A-BBB Blodgett B36A-GGG Southbend 35K Southbend 36N-XX Southbend B12C-B Southbend B12C-G Southbend B12C-H Southbend B12N-B Southbend B12N-G Southbend B12N-H Southbend B24C-BB Southbend B24C-BBB-SU Southbend B24C-BB-SU Southbend B24C-GG Southbend B24C-HH Southbend B24C-TT Southbend B24D-BBB-SU Southbend B24N-BB Southbend B24N-BBB-SU Southbend B24N-BB-SU Southbend B24N-GG Southbend B24N-HH Southbend B24N-TT Southbend B36A Southbend B36A-CCC Southbend B36A-GGG Southbend B36A-GRAD Southbend B36A-HHH Southbend B36A-TTT Southbend B36A-XX Southbend B36C-BBB Southbend B36C-GGG Southbend B36C-GRAD Southbend B36C-HHH Southbend B36C-TTT Southbend B36C-XX Southbend B36D-BBB Southbend B36D-GRAD Southbend B36D-HHH Southbend B36D-TTT Southbend B36D-XX Southbend B36N-BBB Southbend B36N-GGG Southbend B36N-GRAD Southbend B36N-HHH Southbend B36N-TTT Southbend B48A-CCCC Southbend B48A-GGGG Southbend B48A-TTTT Southbend B48D-CCCC Southbend B48D-GGGG Southbend B48D-TTTT Southbend B48N-CCCC Southbend B48N-GGGG Southbend B48N-TTTT Southbend BBB45K Southbend C01364D Southbend CO 300 Southbend CO1364D Southbend CO300 Series Southbend P12C-B Southbend P12N-B Southbend P16C-C Southbend P16C-G Southbend P16C-H Southbend P16C-T Southbend P16C-X Southbend P16N-C Southbend P16N-G Southbend P16N-H Southbend P16N-T Southbend P16N-X Southbend P32A-BBB Southbend P32A-BBB-SU Southbend P32A-CC Southbend P32A-GG Southbend P32A-GRAD Southbend P32A-HH Southbend P32A-TT Southbend P32A-XX Southbend P32C-BBB Southbend P32C-BBB-SU Southbend P32C-CC Southbend P32C-GG Southbend P32C-GRAD Southbend P32C-HH Southbend P32C-TT Southbend P32C-XX Southbend P32D-171 Southbend P32D-BBB Southbend P32D-BBB-SU Southbend P32D-CC Southbend P32D-GG Southbend P32D-GRAD Southbend P32D-HH Southbend P32D-TT Southbend P32D-XX Southbend P32N-BBB Southbend P32N-BBB-SU Southbend P32N-CC Southbend P32N-GG Southbend P32N-GRAD Southbend P32N-HH Southbend P32N-TT Southbend P32N-XX Southbend P36A-CCC Southbend P36C-CCC Southbend P36D-CCC Southbend P36N-CCC Southbend P48A-BBBB Southbend P48A-CCCC Southbend P48A-GGG Southbend P48A-TTT Southbend P48C-CCCC Southbend P48C-GGG Southbend P48C-TTT Southbend P48D-BBBB Southbend P48D-CCCC Southbend P48D-GGG Southbend P48D-TTT Southbend P48N-BBBB Southbend P48N-CCCC Southbend P48N-GGG Southbend P48N-TTT
Showing of 124.0

BLODGETT:

1173542

SOUTHBEND:

1011201 1011299 116145-2 1161452 1173542 SOU1011201 SOU1011299 SOU1161452 SOU1173542

Step1: Disconnect power and gas supply to oven, allow it to cool completely before service.

Step2: Remove control panel cover, then carefully detach old thermostat while labeling wiring connections.

Step3: Install new thermostat bulb into sensing tube, secure mounting bracket firmly in place.

Step4: Reconnect wires according to wiring diagram, ensure tight secure connections and proper insulation.

Step5: Restore power and gas supply, test temperature calibration and verify safe operation.

  • What maintenance is required for the Blodgett Z1173542 Thermostat?

    Keep the oven thermostat and sensing bulb clean and free from grease buildup to ensure accurate temperature control. Inspect wiring connections and bulb placement regularly for wear or looseness. Calibrate periodically to maintain consistent oven performance and safety.

  • What are common issues with the Blodgett Z1173542 Thermostat?

    • Inaccurate temperature readings.
    • Faulty or loose sensor bulb.
    • Wiring connection failure.
    • Oven overheating or underheating.
    • Bulb damage from heat exposure.
    • Control failure causing unstable cycling.
