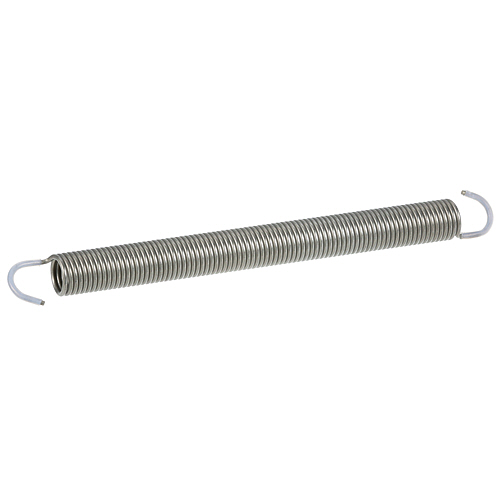

Jackson 05700-003-32-85 Dishmachine Door Spring Avenger Series

SKU: 05700-003-32-85 1-05700-003-32-85 Brand:
Jackson
Availability:
In Stock
(0)
$19.98
Have a Question? +1 (866) 863-0907

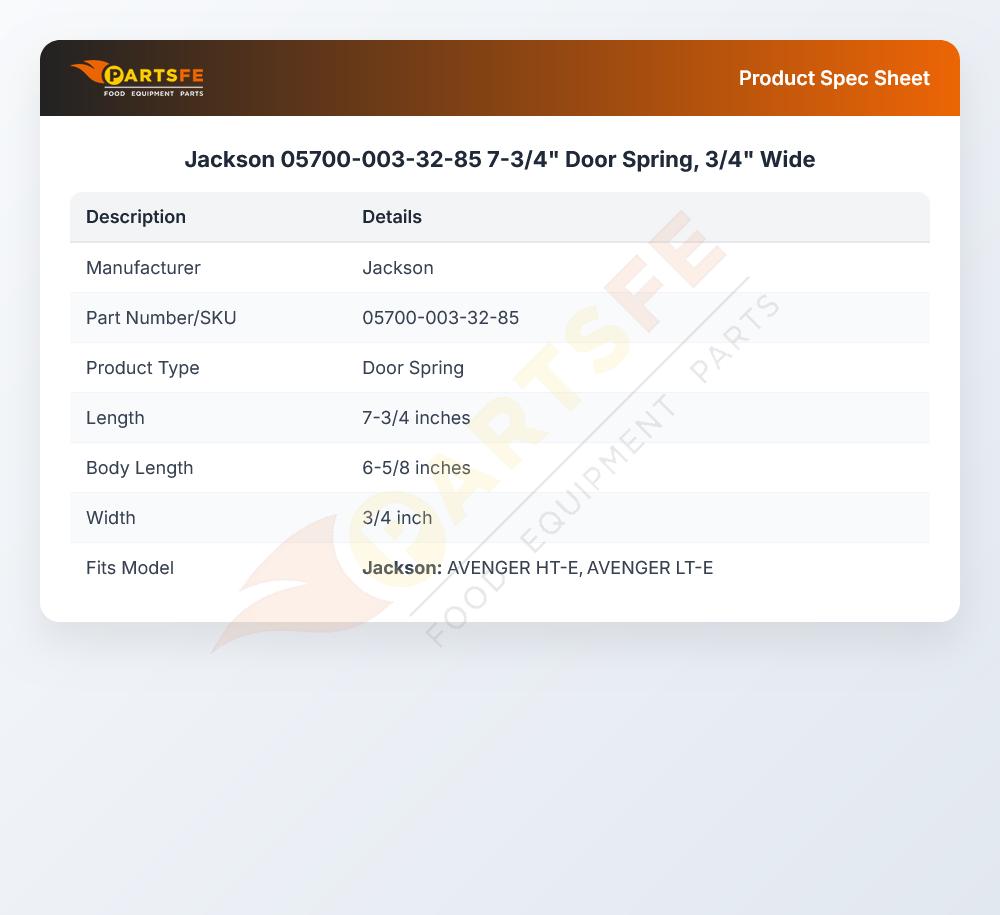

Specifications:

  • 7-3/4" Long Overall, Body = 6-5/8", 3/4" Wide
  • Jackson Avenger (Ht, Lth)

Description

The Jackson 05700-003-32-85 Dishmachine Door Spring works by balancing the weight, enabling it to open and close. When the door is raised or lowered to aid in the same motion each time a cycle is completed. This is installed in the door assembly of the Avenger Series dishwashers, and it is attached to the internal door mechanism to allow it to operate. It is intended to be integrated with the unit simply and assist in ensuring that they move properly and within the structural layout of the unit.

Dimensions:

  • Weight: 0.19 lbs
  • Length: 8 in
  • Height: 1 in
  • Width: 1 in

JACKSON:

05340-003-32-37 5700-003-32-85 57000033285

Step1: Disconnect power and ensure the dishwasher door is fully supported before starting the replacement.

Step2: Remove the lower access panel to expose the door spring and linkage assembly.

Step3: Carefully detach the old spring from the frame bracket and door linkage using pliers.

Step4: Hook the new spring onto the frame bracket first, then attach it to the door linkage.

Step5: Check spring tension and door movement, then reinstall the panel and restore power.

  • What maintenance is required for the Jackson 05700-003-32-85 Door Spring?

    For the Jackson door spring, inspect tension and alignment regularly to ensure smooth door operation. Lubricate pivot points to reduce friction and noise. Tighten mounting hardware and check for corrosion or wear on components.

  • What are common issues with the Jackson 05700-003-32-85 Door Spring?

    • misalignment causing uneven door closure.
    • spring tension loss leading to sluggish return.
    • noise or squeaking from dry pivots.
    • mounting loosening or hardware fatigue.
    • binding movement due to debris buildup.
    • inconsistent door closing speed under load.
