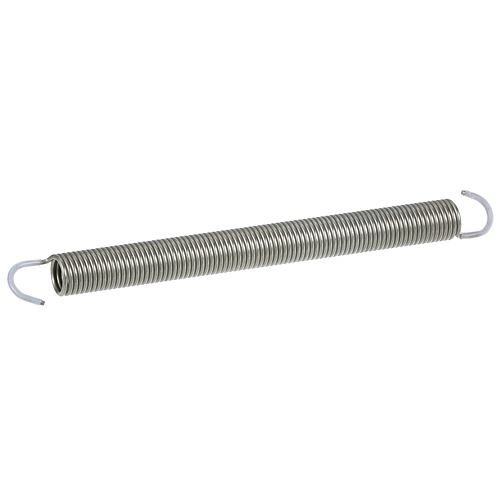

Jackson 5700-003-32-85 Dishmachine Door Spring Avenger Series

SKU: 5700-003-32-85 1-5700-003-32-85 Brand:
Jackson
Availability:
In Stock
(0)
$19.98
Have a Question? +1 (866) 863-0907

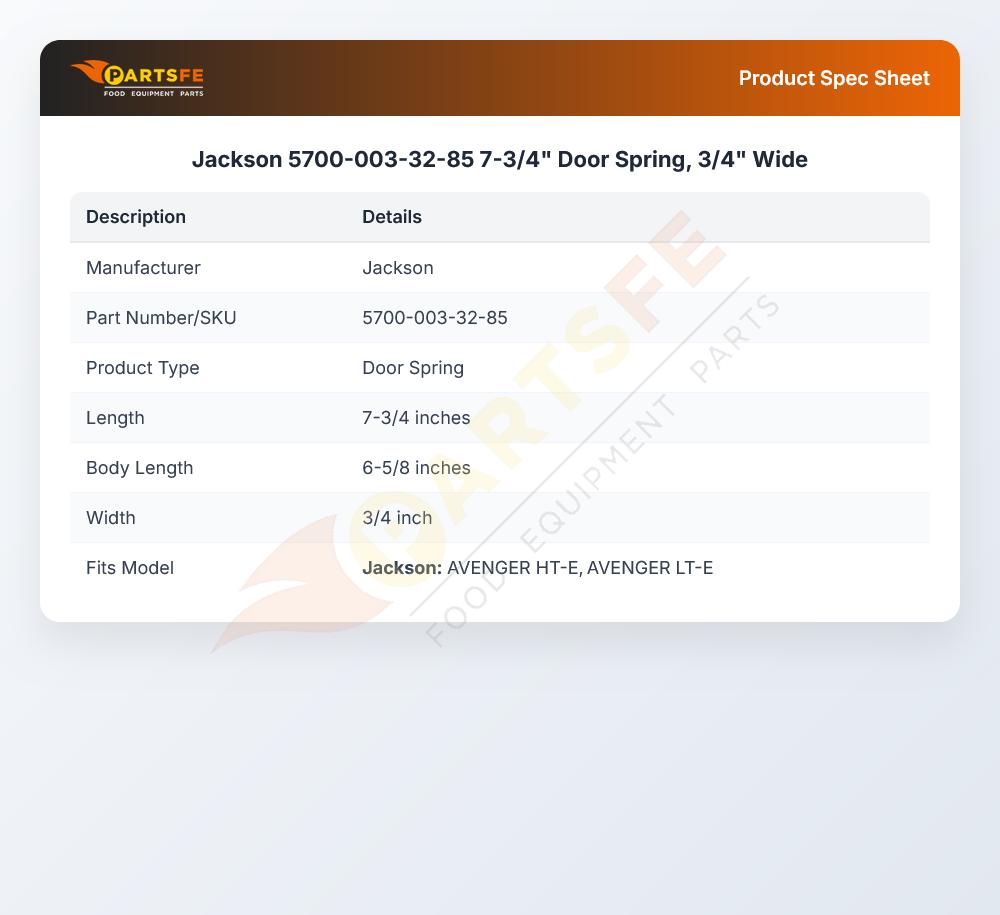

Specifications:

  • 7-3/4" Long Overall, Body = 6-5/8", 3/4" Wide
  • Jackson Avenger (Ht, Lth)

Description

The Jackson 5700-003-32-85 Dishmachine Door Spring works by offering a controlled load when it is opening and closing to make sure that it moves easily and evenly when closing. It operates by opposing the weight of the door. This is fitted into the door assembly of the dishwashing machine and is connected to the internal door motion mechanisms. It is made to fit into its mounting points in the Avenger Series and can provide a consistent output with the desired motion.

Dimensions:

  • Weight: 0.19 lbs
  • Length: 8 in
  • Height: 1 in
  • Width: 1 in

JACKSON:

05340-003-32-37 05700-003-32-85 57000033285

Step1: Disconnect power to the unit ensure door is properly supported before starting; wear gloves and eye protection.

Step2: Remove access panel and carefully release old spring tension retaining all hardware.

Step3: Position new spring onto mounting hooks in correct orientation.

Step4: Secure both ends ensuring alignment and proper seating on brackets.

Step5: Reassemble components slowly test door movement check tension and adjust if needed.

  • What maintenance is required for the Jackson 5700-003-32-85 Door Spring?

    Regularly inspect the spring for tension loss, corrosion, or wear. Lubricate moving components with light machine oil to ensure smooth operation. Tighten mounting hardware periodically. Proper maintenance ensures consistent door closing force and prevents premature failure or noise.

  • What are common issues with the Jackson 5700-003-32-85 Door Spring?

    • Spring fatigue or breakage over time.
    • Loss of tension leading to improper door closing.
    • Corrosion causing stiffness or noisy operation.
    • Misalignment resulting in uneven door movement or failure to fully close.
