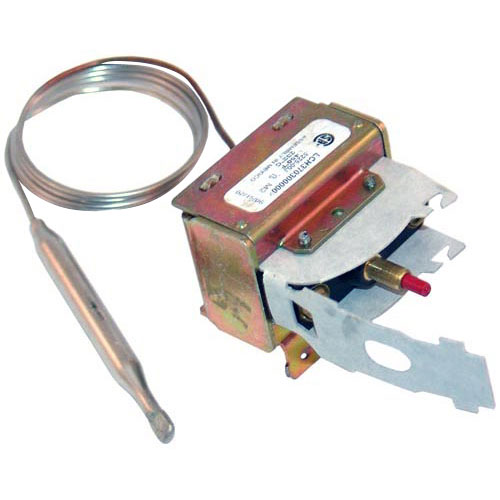

MKE 10-1736 High-Limit Thermostat LCH Type Manual Reset 5/16" 450°F

SKU: 10-1736 1-10-1736 Brand:
MKE
Availability:
In Stock
(0)
$182.76 Price reduced from $352.00
Save $169.24
Have a Question? +1 (866) 863-0907

Specifications:

  • Hi-Limit, Type - Lch W/Manual Reset Temp 450 Fixed
  • Bulb 5/16" X 3-5/8" Nickel Cap 60" Brkt 1
  • Pitco Fryer All Elec Fryers, Fe Counter Model.
  • Star
  • Fryer Gas: 215B & 216 (S/N 2156323 & Up).
  • Elec: 116C & 116Cl (S/N 1161491 & Up), 301 & 301Hl
  • (S/N 3010945 & Up), 510F, 515, 515(A,E,Ea), 530(F,
  • Fa,T,Ta,Te,Tea), Em14 & Em14Dl & Em40 &
  • Em40Dl (S/N 1450521 & Up).

Description

The MKE 10-1736 High-Limit Thermostat works based on the concept of control over temperature and the automatic breaking of the electrical circuit when it reaches 450°C, and the heating element can be turned on only by hand. Its LCH-type design is characterized by the 5/16-inch nickel bulb, which measures the amount of heat and activates the cutoff mechanism. This is intended to be installed in the heating systems or equipment, and it can be mounted to keep the temperature limits and to be able to operate in the desired setting.

Dimensions:

  • Weight: 0.84 lbs
  • Length: 4.5 in
  • Height: 2 in
  • Width: 3.5 in

PITCO:

P5047213 P5047216 PTP5047216

STAR MFG:

23209 2T-9566 2T-Y1668 2T9566 9566 Y1668 Y3106 Z2845 Z3209

STERO:

STA23209 STA2T-9566 STA2T-Y1668 STA2T9566 STA9566 STAY1668 STAY3106 STAZ2845 STAZ3209

U-LINE:

5225-009 5225-00J LCH37-030-00

Step1: Disconnect electrical power and shut off the gas supply to the appliance before servicing.

Step2: Allow the equipment to cool completely and remove the access panel.

Step3: Label and disconnect the wires from the existing hi-limit thermostat.

Step4: Carefully remove the sensing bulb and mounting hardware from the old thermostat.

Step5: Install the new thermostat and secure the nickel sensing bulb in its original location.

Step6: Reconnect the wiring to the appropriate terminals and verify all connections are tight.

Step7: Reinstall the access panel, restore power, and test the manual-reset hi-limit safety function for proper operation.

  • What maintenance is required for the MKE 10-1736 Thermostat?

    Regularly inspect wiring connections and ensure terminals are tight and free from corrosion. Check the bulb and sensing area for cleanliness and proper placement to ensure accurate temperature response. Periodically test manual reset functionality to confirm safe operation. Avoid moisture exposure and excessive vibration to maintain accuracy and prevent false trips.

  • What are common issues with the MKE 10-1736 Thermostat?

    • Thermostat tripping too frequently.
    • Failure to reset manually after overheating.
    • Inaccurate temperature cutoff or drift.
    • Damaged or disconnected sensing bulb.
    • Switch contact failure causing no heat control.
