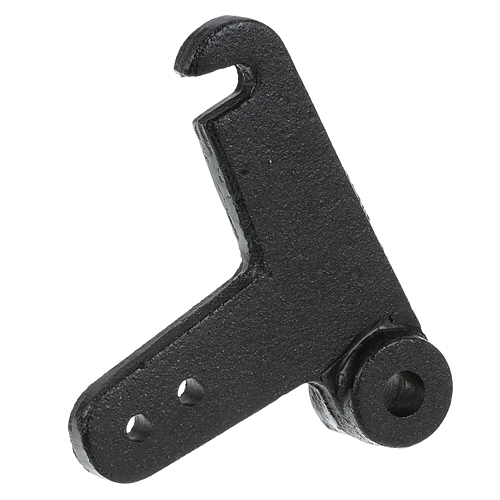

Jade Range 100-174-000 Door Rocker Arm

SKU: 100-174-000 1-100-174-000 Brand:
Jade Range
Availability:
In Stock
(0)
$44.72 Price reduced from $58.08
Save $13.36
Have a Question? +1 (866) 863-0907

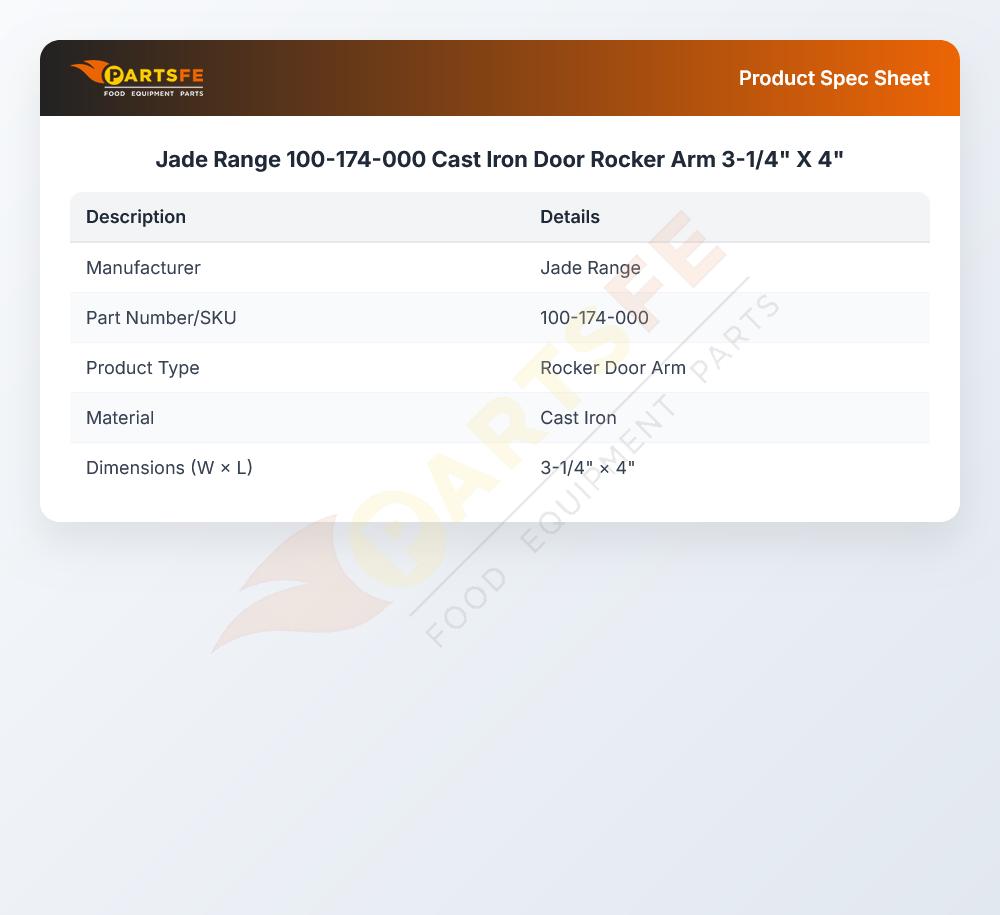

Specifications:

  • Door Rocker Arm, 3-1/4" X 4" Cast Iron,
  • Jade Oven Jtrh

Description

The Jade Range 100-174-000 Door Rocker Arm allows the movement of doors to be controlled by shifting the movement between the hinge mechanism and the door. The arm rotates with the door opening and closing and directing alignment with every cycle. It is fitted in the hinge of the door of the range. The component assists in easy mechanical contact among the connected components. Its size permits it to fit with certain door designs. The rocker arm is attached to hinge points, which control door movement.

Dimensions:

  • Weight: 0.62 lbs
  • Length: 4 in
  • Height: 1 in
  • Width: 3.5 in

JADE RANGE:

-1017400000 100-127-000 100127000 1012700000 1017400000

Step1: Turn off appliance and allow it to cool completely; disconnect gas or power supply for safety.

Step2: Remove appliance door panel and carefully detach the worn rocker arm using proper hand tools.

Step3: Align new cast iron rocker arm with hinge and mounting points, ensuring correct orientation.

Step4: Secure fasteners tightly and check smooth door movement and balance.

Step5: Reassemble door and test operation; avoid pinching hazards during adjustment.

  • What maintenance is required for the Jade Range 100-174-000 Door Rocker Arm?

    Regularly inspect the rocker arm for wear, corrosion, and misalignment. Clean debris and lubricate pivot points to ensure smooth operation. Tighten mounting hardware periodically to maintain proper door movement and prevent mechanical failure.

  • What are common issues with the Jade Range 100-174-000 Door Rocker Arm?

    • Wear on pivot causing stiff or uneven door movement.
    • Corrosion or rust affecting structural integrity and function.
    • Loosening of mounting points leading to misalignment or noise.
    • Excessive play in rocker arm mechanism.
    • Binding during door operation under load.
