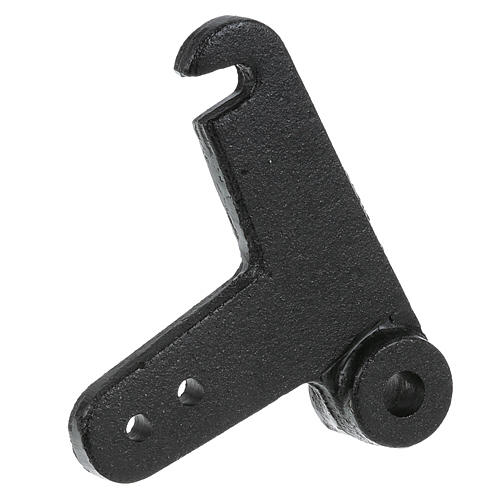

Jade Range 1017400000 Range Door Rocker Arm

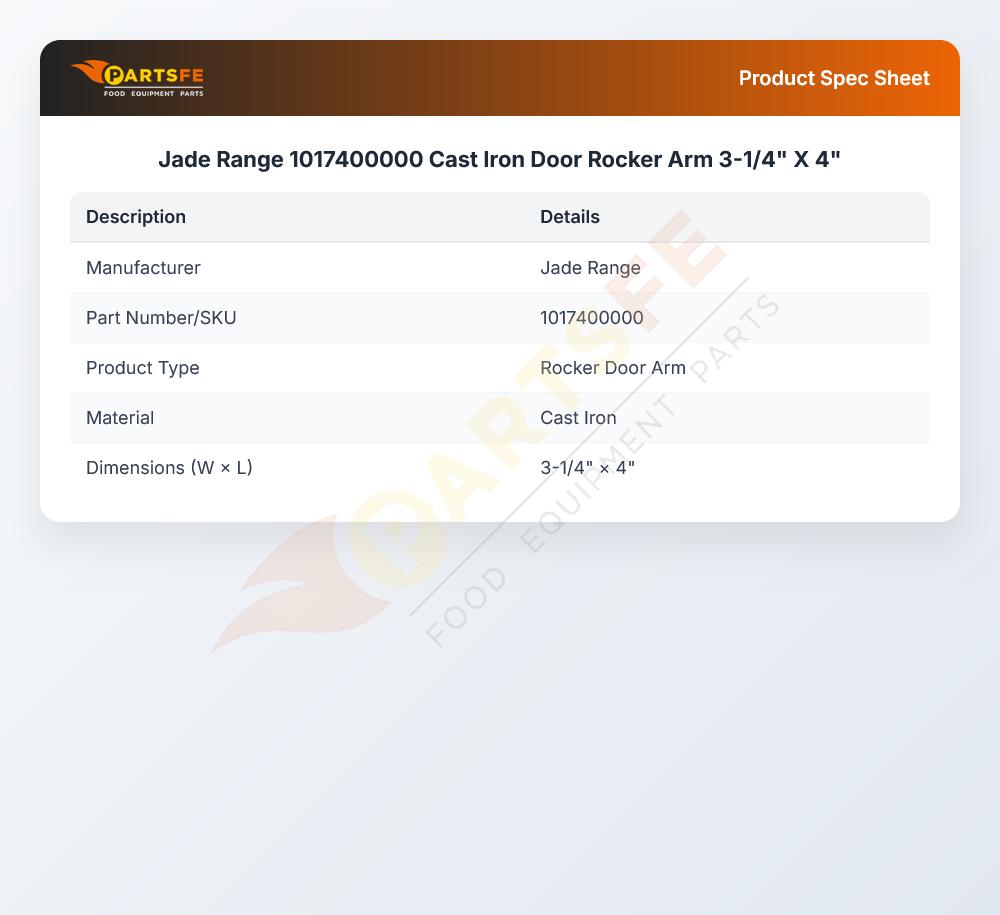

Specifications:
- Door Rocker Arm, 3-1/4" X 4" Cast Iron,
- Jade Oven Jtrh
Description
Dimensions:
- Weight: 0.62 lbs
- Length: 4 in
- Height: 1 in
- Width: 3.5 in
JADE RANGE:
-1017400000 100-127-000 100-174-000 100127000 1012700000
Step1: Turn off gas and power supply to the range and ensure unit is cool.
Step2: Open access panel and remove existing old rocker arm assembly if present.
Step3: Align new cast iron rocker arm with mounting pivot points.
Step4: Secure tightly using appropriate fasteners, ensuring smooth movement.
Step5: Test door operation for proper alignment and free rocking motion.
Step6: Confirm stability and recheck fasteners after initial use for safety.
-
What maintenance is required for the Jade Range 1017400000 Door Rocker Arm?
Inspect the rocker arm regularly for cracks, excessive wear, or loose mounting hardware affecting oven door movement. Keep the assembly clean and free from grease buildup to ensure smooth operation. Lubricate moving connection points if recommended by the equipment manufacturer. Disconnect power or gas equipment before performing maintenance or part replacement.
-
What are common issues with the Jade Range 1017400000 Door Rocker Arm?
- Wear at pivot leading to sticking or squeaking.
- Corrosion or rust buildup on cast iron surfaces.
- Loosening of mounting hardware causing misalignment.
- Cracking under heavy load or impact.
