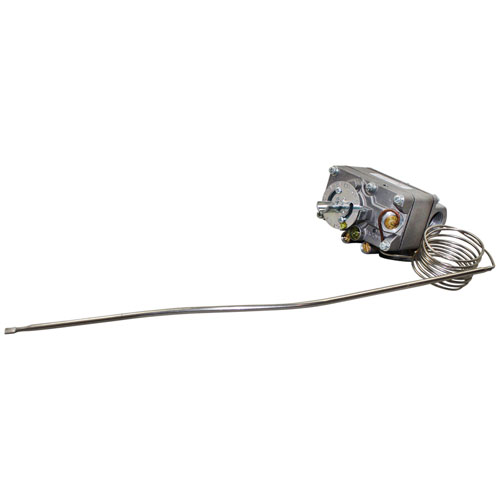

Garland 1017599 Temperature Control Thermostat 1/2" NPT In/Out 3/16" X 14-3/4" 150°F-550°F FDO

SKU: 1017599 1-1017599 Brand:
Garland
Availability:
In Stock
(0)
$580.28 Price reduced from $1,111.65
Save $531.37
Have a Question? +1 (866) 863-0907

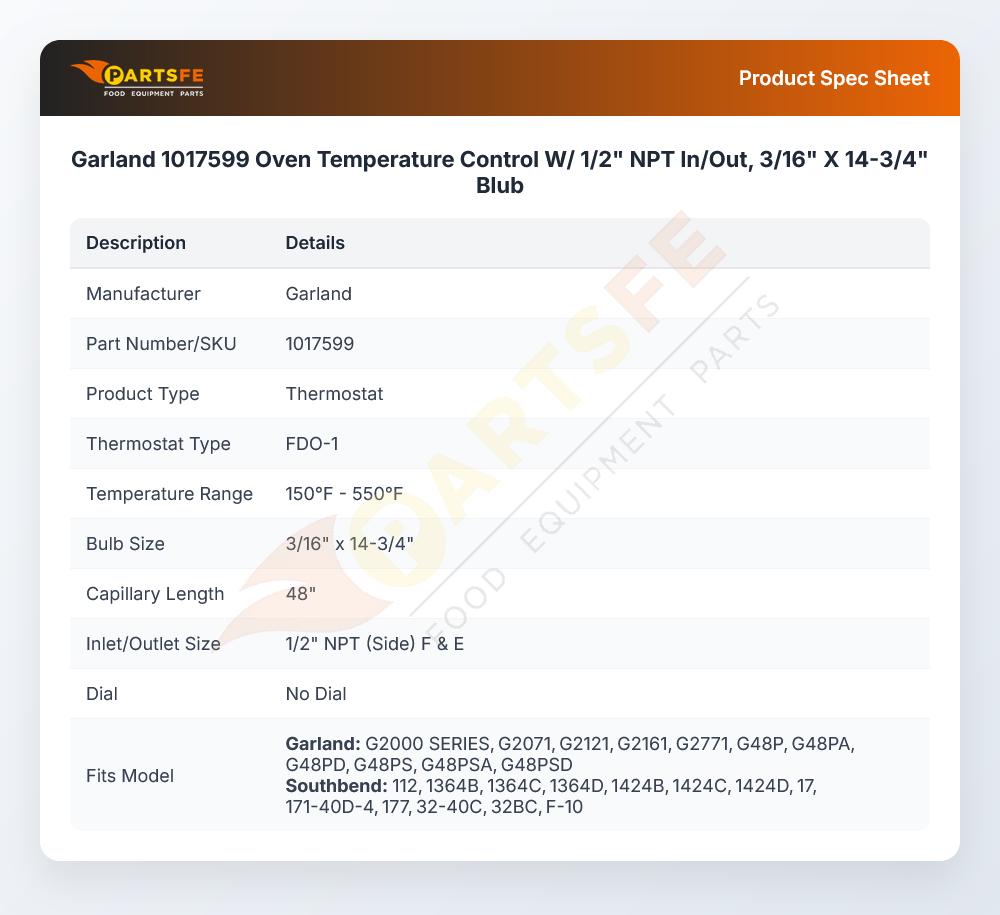

Specifications:

  • [ Fdo-1 ] [ Temp 150-550 ] [ Bulb 3/16" X 14-3/4"]
  • [ Cap 48" ][ 1/2" Npt In/Out (Side) F & E] No Dial.
  • Dial # 22-1129, 2-1/2" Dia, 150-550, Mount .290"
  • [Position 4 Way]
  • Dial Gen Use # 22-1009, Robertshaw-150-550,"D".290", 4-Way
  • Franklin Chef Oven Series: Gdo (Except Gdo-232).
  • Garland Oven Series: G2000.
  • Jade Oven Where Applicable
  • Southbend Broiler 171-40 & -40A/B/C/D, 32-40
  • Oven Conv: V10 & 20~
  • Vs10 & 20. Deck: 17, 112, 177.
  • Range 136, 142, 1228, 1361, 1362, 1363, 1364, 1421, 1422,
  • 1423,1424, T1361, T1421. 1363, 1364, 1421, 1422, 1423,
  • 1424, T1361, T1421.

Description

The Garland 1017599 Thermostat is a temperature control system to be used in commercial cooking equipment. It controls the operating conditions in the ranges of 150F to 550F by sensing the heat using its 3/16" by 14-3/4" sensing bulb and capillary assembly. With 1/2" NPT inputs and outputs, it is inserted directly into the appliance control system to control the amount of heat produced. In the kitchen. It is used in the appliance to switch heating elements or gas flow on or off as required to assist in maintaining operation secure operation, and consistent temperature control when used continuously.

Dimensions:

  • Weight: 1.4 lbs
  • Length: 16.5 in
  • Height: 4.5 in
  • Width: 3 in

GARLAND:

1017500 1017514 1017591 1019400 G01920-01 GL1017514 GL1017591 GL1017599

HOBART:

00-335553-00001 335553-1

SOUTHBEND:

1010302 1010396 1010397 1010398 1010399 1170193 SOU1010302 SOU1010396 SOU1010397 SOU1010398 SOU1010399 SOU1170193

U-LINE:

4200-007 4200-00G
