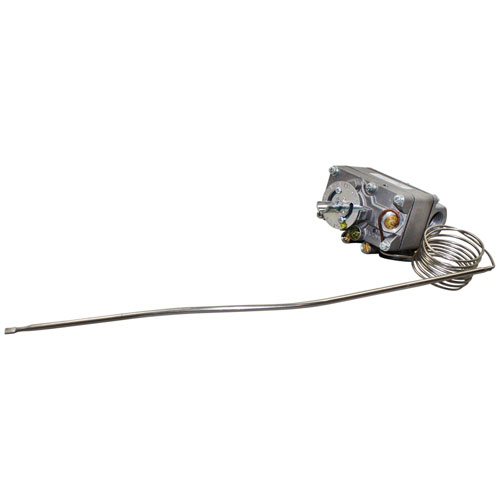

Southbend 1170193 Temperature Control Thermostat 1/2" NPT 3/16" X 14-3/4" 150°F-550°F 48" Cap FDO

SKU: 1170193 1-1170193 Brand:
Southbend
Availability:
In Stock
(0)
$580.28 Price reduced from $1,111.65
Save $531.37
Have a Question? +1 (866) 863-0907

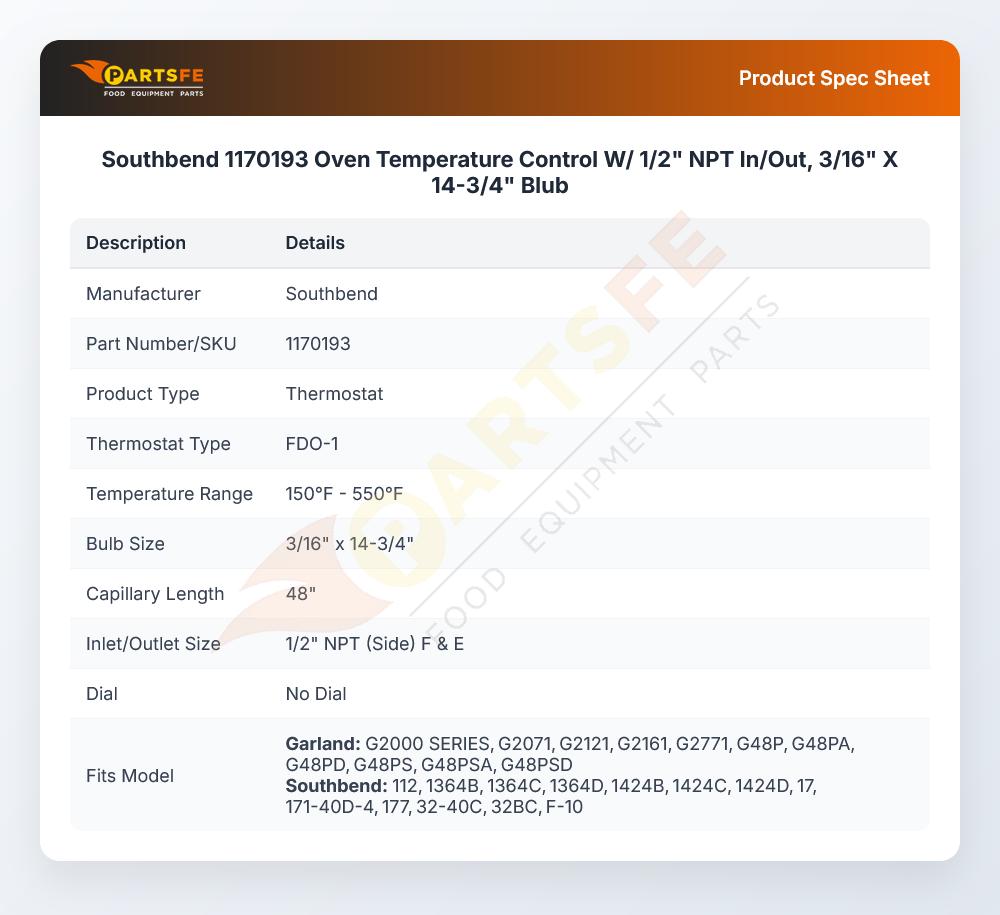

Specifications:

  • [ Fdo-1 ] [ Temp 150-550 ] [ Bulb 3/16" X 14-3/4"]
  • [ Cap 48" ][ 1/2" Npt In/Out (Side) F & E] No Dial.
  • Dial # 22-1129, 2-1/2" Dia, 150-550, Mount .290"
  • [Position 4 Way]
  • Dial Gen Use # 22-1009, Robertshaw-150-550,"D".290", 4-Way
  • Franklin Chef Oven Series: Gdo (Except Gdo-232).
  • Garland Oven Series: G2000.
  • Jade Oven Where Applicable
  • Southbend Broiler 171-40 & -40A/B/C/D, 32-40
  • Oven Conv: V10 & 20~
  • Vs10 & 20. Deck: 17, 112, 177.
  • Range 136, 142, 1228, 1361, 1362, 1363, 1364, 1421, 1422,
  • 1423,1424, T1361, T1421. 1363, 1364, 1421, 1422, 1423,
  • 1424, T1361, T1421.

Description

The Southbend 1170193 Temperature Control Thermostat FDO is a part that is used to regulate the temperature of commercial cooking equipment that is required to be regulated to the proper temperature. It is able to work at temperatures between 1500F and 5500F and has a 48" capillary tube to detect the temperature variations in the cooking chamber. The 1/2" NPT connection can be simply inserted in the control system of the appliance. In commercial kitchens, it is used to ensure the same amount of heat in continuous cooking periods. Its role to minimize the chances of overheating and to ensure the equipment conditions.

Dimensions:

  • Weight: 1.4 lbs
  • Length: 16.5 in
  • Height: 4.5 in
  • Width: 3 in

GARLAND:

1017500 1017514 1017591 1017599 1019400 G01920-01 GL1017514 GL1017591 GL1017599

HOBART:

00-335553-00001 335553-1

SOUTHBEND:

1010302 1010396 1010397 1010398 1010399 SOU1010302 SOU1010396 SOU1010397 SOU1010398 SOU1010399 SOU1170193

U-LINE:

4200-007 4200-00G
