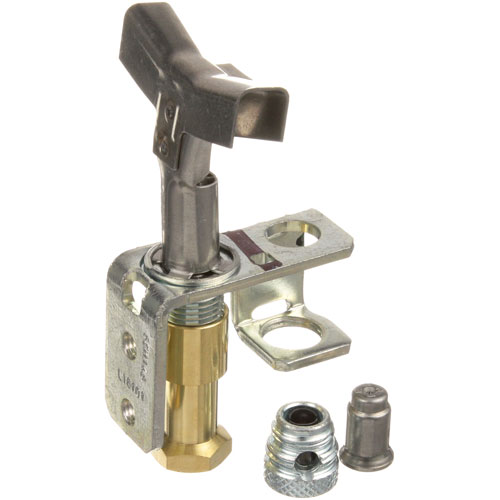

Southbend 1054196 Range Pilot Kit NAT/LP

SKU: 1054196 1-1054196 Brand:
Southbend
Availability:
In Stock
(0)
$36.96 Price reduced from $44.00
Save $7.04
Have a Question? +1 (866) 863-0907

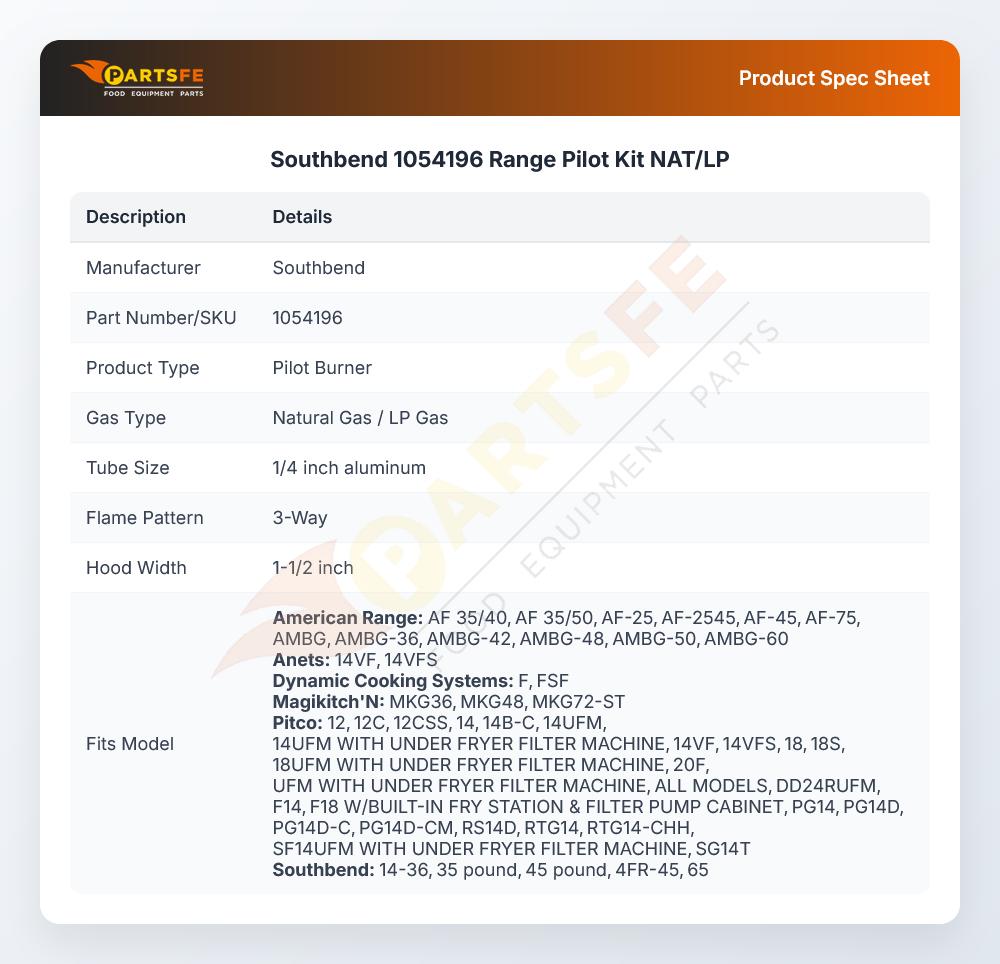

Specifications:

  • Nat/Lp Pilot, Factory # 6Ch14-6, 1830-489 Tube Size 1/4",
  • Flame Pattern 3 Way, Hood Width 1-1/2"
  • Lp Orifice # 26-1556
  • Nat Orifice # 26-1557
  • American Range Fryer Series: Af
  • Anets Fryer 14Vf(S).
  • Blodgett Model?
  • Dynamic Cooking Systems Fryer F, Fsf
  • Pitco Fryer 12, 14, 14Ba, Ce14R, 18, 24R, 26, 35C, 45C.
  • Rethermalizer Rtg14, Rtg14 (Taco Bell).
  • Southbend Fryer 14, 18, Series Gfs (35,45,65).
  • Broiler Sgs, Hdg

Description

Southbend 1054196 Range Pilot Kit is an essential Component for any equipment that uses gas for cooking, it is used to replace component. This kit works with natural gas and liquid propane to make it a versatile equipment in different kitchens. Its tube size is a 1/4” CCT and has a three way flame pattern and safety is increased by the shut off of the gas flow in the absence of flame. Some advantages of this pilot kit include enhanced performance, minimized possible danger of the existence of gas leaks, and compatibility concerns of various brands of equipment.

Dimensions:

  • Weight: 0.13 lbs
  • Length: 3 in
  • Height: 1.75 in
  • Width: 1.5 in

AMERICAN RANGE:

11105 A11103 A11121 AMRA11103

ANETS:

P6071449 P8905-06

BLODGETT:

Z1054197

DYNAMIC COOKING SYSTEMS:

13248 13249 DCS13248 DCS13249

GARLAND:

1093398 1093399

MAGIKITCH'N:

P6071449 P6071450

PITCO:

P6071449 P6071450 P8905-06 PTP6071449 PTP6071450

SOUTHBEND:

1054197 1054198 1182628 1182635 SOU1054196 SOU1054197

Step1: Turn off the gas supply and disconnect power to the range before starting installation.

Step2: Remove the access panel to reach the existing pilot assembly.

Step3: Disconnect the old pilot tubing and mounting hardware carefully.

Step4: Install the new pilot kit in the same position and secure all fittings tightly.

Step5: Reconnect the gas line and check connections for leaks using a soap solution.

Step6: Restore gas and power, then test the pilot flame for proper ignition and stability.

  • What maintenance is required for the Southbend 1054196 Pilot Kit?

    Inspect the pilot kit regularly for dust, grease, and carbon buildup that may affect ignition. Clean the orifice and surrounding components to maintain steady flame performance. Check gas connections for leaks and ensure proper alignment. Always turn off gas supply before servicing.

  • What are common issues with the Southbend 1054196 Pilot Kit?

    • Weak or inconsistent pilot flame.
    • Pilot failing to ignite or stay lit.
    • Gas flow interruptions causing uneven heating.
    • Clogged pilot orifices from grease or debris buildup.
