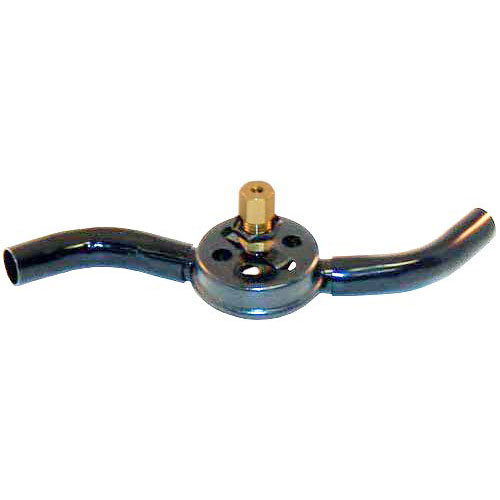

Garland 1084501 Faucet Open Top Pilot Assembly 6" 1/8" CCT Nut & Sleeve

SKU: 1084501 1-1084501 Brand:
Garland
Availability:
Out of Stock
(0)
$19.68 Price reduced from $35.14
Save $15.46
Have a Question? +1 (866) 863-0907

Specifications:

  • Open Top Pilot Assembly,
  • 6" Long, 1/8" Cct Nut & Sleeve, 3" Flash Tube Only,
  • 1-5/8" Dia Ring,
  • For 1/8" X 3 Ft. Copper Clad Steel Tubing Order #26-2271
  • For 1/8" Aluminum Tubing Order #26-1417 (1/8" X 50 Ft. Roll)
  • Garland Series 40/50, G280, H280, P280, G30A, After 1968

Description

The Garland 1084501 Faucet Open Top Pilot Assembly 6" 1/8" CCT Nut & Sleeve gas is directed through the pilot tube and ignited at the open top to form a flame that lights the main burner. The gas flow and lighting of the flame ensure that the flame remains ready to start the burner when required. It is attached next to the burner within compatible cooking equipment to make sure that the pilot flame touches the burner to ignite. The length of the tube is the nut and sleeve included make it connected properly and the gas line to allow normal pilot operation.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 4 in
  • Height: 1.25 in
  • Width: 3 in

GARLAND:

-1084500 -1084501 -1084502 -1084503 -CKG7804-44 -G7804-280 -G7804-44 1084500 1084502 1084503 CKG7804-44 G7804-280 G7804-44 GL1084500 GL1084501 GL1084502 GL1084503 GLG7804-280 GLG7804-44

Step1: Turn off gas supply and allow appliance to cool completely for safety.

Step2: Remove old pilot assembly, noting connection points and tubing routing.

Step3: Install new pilot assembly, securing with CCT nut and sleeve.

Step4: Reconnect gas line tightly and ensure proper alignment.

Step5: Turn gas on, check for leaks using soapy water, then test ignition flame.

Step6: Verify stable flame and secure all fittings before final operation.
