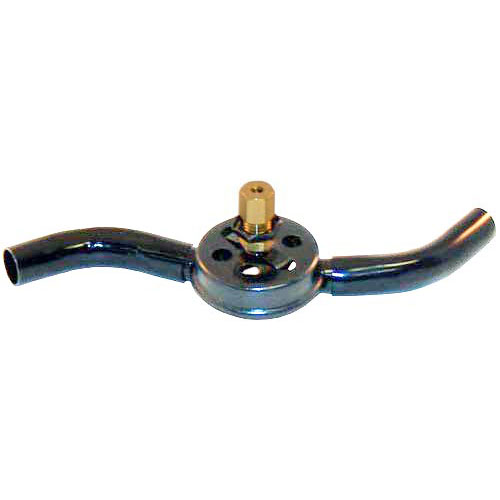

Garland CKG7804-44 Faucet Open Top Pilot Assembly 6" 1/8" CCT Nut & Sleeve

SKU: CKG7804-44 1-CKG7804-44 Brand:
Garland
Availability:
In Stock
(0)
$51.41 Price reduced from $55.95
Save $4.54
Have a Question? +1 (866) 863-0907

Specifications:

  • Open Top Pilot Assembly,
  • 6" Long, 1/8" Cct Nut & Sleeve, 3" Flash Tube Only,
  • 1-5/8" Dia Ring,
  • For 1/8" X 3 Ft. Copper Clad Steel Tubing Order #26-2271
  • For 1/8" Aluminum Tubing Order #26-1417 (1/8" X 50 Ft. Roll)
  • Garland Series 40/50, G280, H280, P280, G30A, After 1968

Description

The Garland CKG7804-44 Faucet Open Top Pilot Assembly controls ignition by permitting gas to flow through the pilot tubing and ignite at the open-top outlet. The resulting flame is left to start the main burner when the gas valve is opened. It is attached close to the burner in a compatible cooking operator so that it is directly in contact with the flame during ignition. The assembly has a 6-inch pilot tube that is made to reach correctly into the unit. It has a nut and sleeve that help ensure proper fit at the gas connection point.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 4 in
  • Height: 1.25 in
  • Width: 3 in

GARLAND:

-1084500 -1084501 -1084502 -1084503 -CKG7804-44 -G7804-280 -G7804-44 1084500 1084501 1084502 1084503 G7804-280 G7804-44 GL1084500 GL1084501 GL1084502 GL1084503 GLG7804-280 GLG7804-44

Step1: Turn off the gas supply and disconnect power to the appliance.

Step2: Remove the old pilot assembly by loosening the mounting hardware and fittings.

Step3: Install the new pilot assembly, connecting the nut and sleeve securely.

Step4: Tighten all connections and ensure proper alignment.

Step5: Restore gas and power, then test ignition and flame for correct operation.

  • What maintenance is required for the Garland CKG7804-44 Pilot Assembly?

    Regularly inspect the pilot assembly for debris, corrosion, or loose connections. Clean gently to ensure proper ignition and flame stability. Proper maintenance prevents misfires and unsafe operation. Always turn off the gas supply before performing any work.

  • What are common issues with the Garland CKG7804-44 Pilot Assembly?

    • Difficulty igniting the pilot flame.
    • Intermittent or weak flame.
    • Clogged or dirty pilot tube.
    • Loose or damaged fittings affecting operation.
