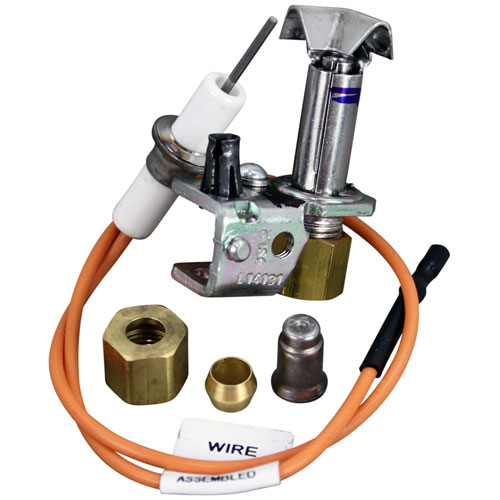

Imperial 1120NAT Oven Spark Igniter Pilot Assembly

SKU: 1120NAT 1-1120NAT Brand:
Imperial
Availability:
In Stock
(0)
$48.51 Price reduced from $77.00
Save $28.49
Have a Question? +1 (866) 863-0907

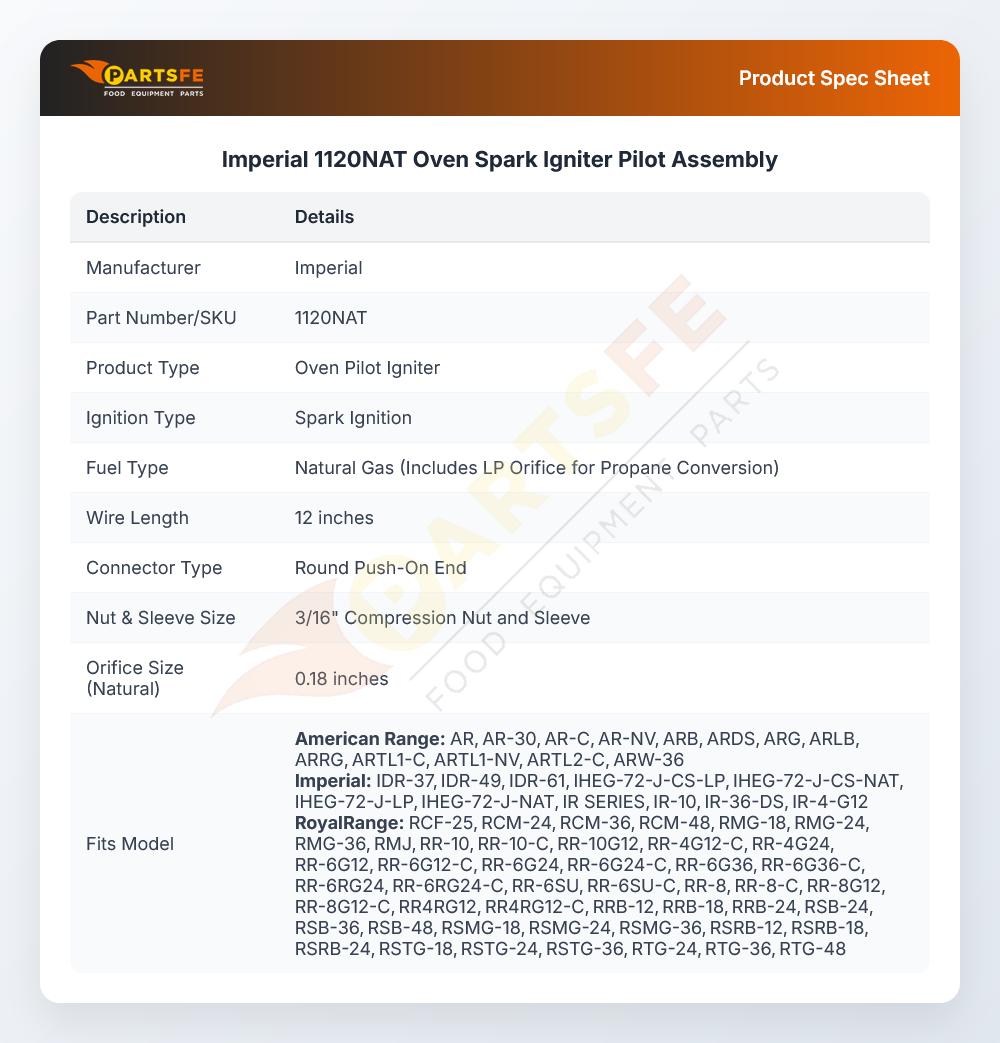

Specifications:

  • Spark Ign Oven Pilot Nat, Igniter W/12" Wire W/ Round
  • Push On End, 3/16" Cct Nut & Sleeve, Orifice Is .18" Nat
  • Includes Lp Orifice # 26-1554
  • Includes Nat Orifice # 26-1555
  • Use Spark Ignition Module "Sm2", # 44-1009
  • American Range Oven Model?
  • Dynamic Cooking Systems
  • Oven Range - Oven Section.
  • Imperial
  • Oven Series: Ir W/Convection Oven.

Description

Imperial 1120NAT Spark Igniter Pilot Assembly NAT is an essential component is suitable for use in commercial ovens especially in oven ranges with convection ovens. This assembly consists of a 12” wire with round push-on terminal, 3/16” CCT nut and sleeve, natural gas and LP orifices. It operates through creating a spark that will in turn ignite the pilot flame to support safe and efficient lighting in your oven. Designed to work with the SM2 spark ignition module, this product increases dependability, decreases service requirements, and optimizes the oven. Perfect for any commercial kitchen that needs reliable and steady source of ignition.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.5 in
  • Height: 3.5 in
  • Width: 1.5 in

AMERICAN RANGE:

10413 A11104 A11132 A11301 AMR10413 AMRA11104

IMPERIAL:

1119 1120 1120LP IMP1119 IMP1120 IMP1120LP IMP1120NAT

ROYAL RANGE:

2209 2210

Step1: Turn off gas and electrical power to the oven before starting installation.

Step2: Remove old igniter/pilot assembly and disconnect wiring carefully from terminals.

Step3: Mount new assembly in same bracket position securely.

Step4: Reconnect wires securely and ensure proper alignment of sensor tip.

Step5: Restore power and gas supply, then test ignition cycle safely.

Step6: Check for gas leaks using soapy water solution; never use flame.

  • What maintenance is required for the Imperial 1120NAT Spark Igniter Pilot Assembly?

    Regularly clean the igniter electrode and pilot assembly to remove carbon buildup and debris. Inspect wiring connections for looseness or corrosion. Ensure proper gas flow and alignment. Prevent moisture exposure and always disconnect power before servicing for safety.

  • What are common issues with the Imperial 1120NAT Spark Igniter Pilot Assembly?

    • Weak or intermittent pilot flame.
    • Carbon buildup on electrode.
    • Loose or damaged wiring connections.
    • Delayed ignition or no ignition.
