American Range A11132 Oven Natural Gas Spark Igniter Pilot Assembly

SKU: A11132 1-A11132 Brand:
American Range
Availability:
In Stock
(0)
$48.51 Price reduced from $77.00
Save $28.49
Have a Question? +1 (866) 863-0907

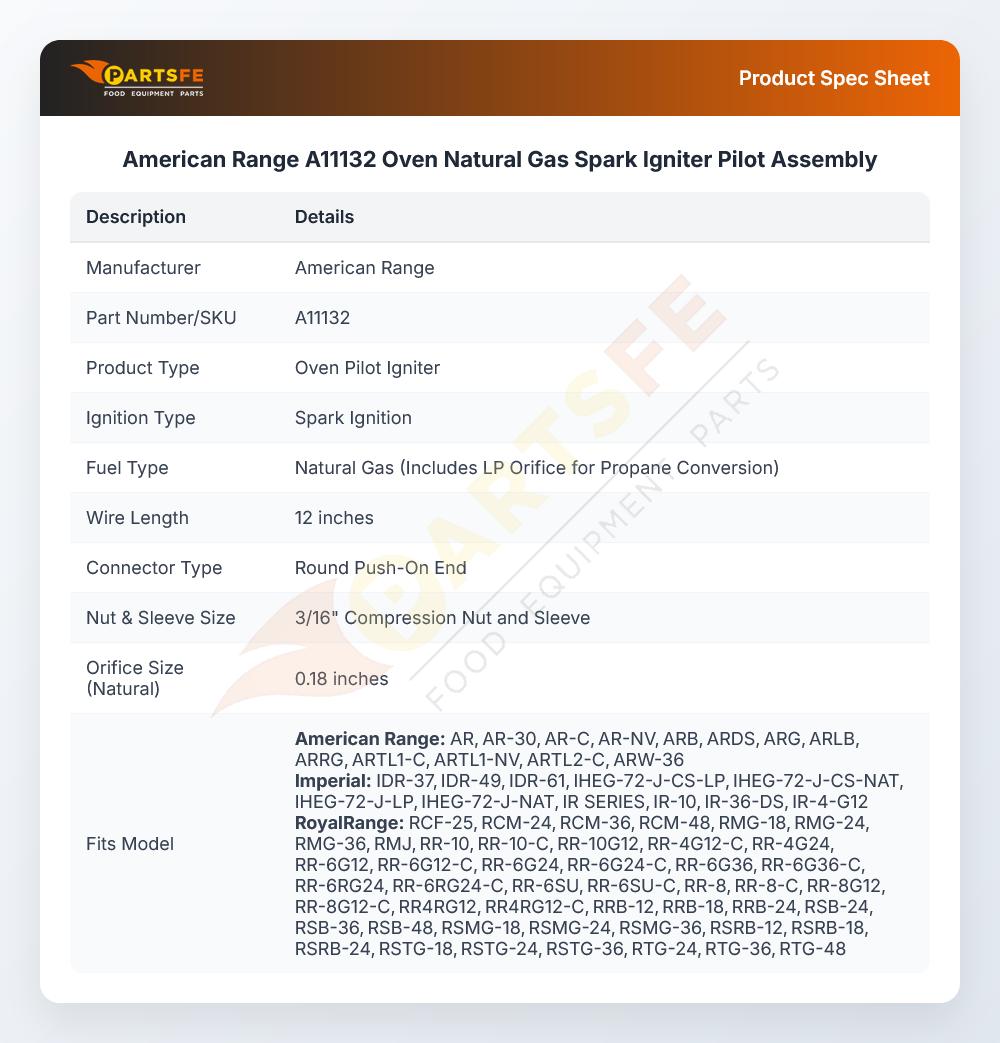

Specifications:

  • Spark Ign Oven Pilot Nat, Igniter W/12" Wire W/ Round
  • Push On End, 3/16" Cct Nut & Sleeve, Orifice Is .18" Nat
  • Includes Lp Orifice # 26-1554
  • Includes Nat Orifice # 26-1555
  • Use Spark Ignition Module "Sm2", # 44-1009
  • American Range Oven Model?
  • Dynamic Cooking Systems
  • Oven Range - Oven Section.
  • Imperial
  • Oven Series: Ir W/Convection Oven.

Description

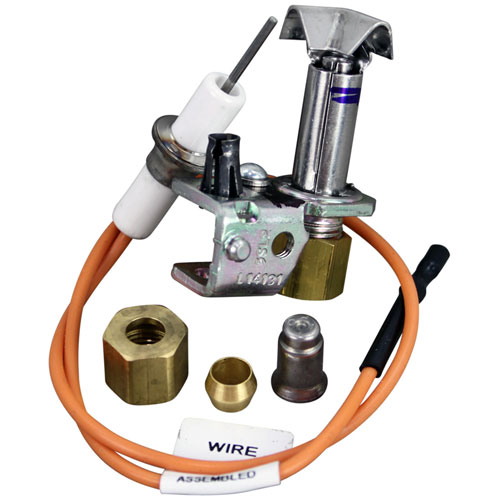

The American Range A11132 Oven Natural Gas Spark Igniter Pilot Assembly is used to ignite your oven’s natural gas. It consists of a spark igniter with a 12 inches wire, round push-on end, 3/16 inches CCT nut and sleeve and orifice for natural gas with .18 inches size. The assembly is also available with LP and natural gas orifice 26-1554 & 26-1555. Designed to be used with the Spark Ignition Module SM2 44-1009, it is suitable for use in ovens in the American Range and Imperial IR convection oven line. This igniter offers improved flame initiation adding to greater cooking convenience and security.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.5 in
  • Height: 3.5 in
  • Width: 1.5 in

AMERICAN RANGE:

10413 A11104 A11301 AMR10413 AMRA11104

IMPERIAL:

1119 1120 1120LP 1120NAT IMP1119 IMP1120 IMP1120LP IMP1120NAT

ROYAL RANGE:

2209 2210

Step1: Turn off gas and electrical supply; let oven cool completely before starting.

Step2: Remove oven access panel carefully.

Step3: Disconnect old igniter pilot assembly and note wiring position.

Step4: Install new assembly and secure mounting screws.

Step5: Reconnect wiring and gas line if applicable securely.

Step6: Refit panel, restore power and gas supply firmly.

Step7: Test ignition and check for leaks using soap solution.

  • What maintenance is required for the American A11132 Spark Igniter Pilot Assembly?

    Inspect the oven spark igniter electrode regularly for carbon buildup or grease and clean it gently to ensure proper ignition. Check gas flow and pilot alignment to maintain steady flame performance. Verify wiring connections remain secure and free from heat damage. Routine inspection ensures safe and consistent oven ignition.

  • What are common issues with the American A11132 Spark Igniter Pilot Assembly?

    • Weak or no spark due to worn or dirty igniter electrode.
    • Gas flow restriction causing delayed or failed ignition.
    • Loose or damaged wiring leading to intermittent sparking.
    • Misaligned pilot assembly resulting in unstable flame ignition.
