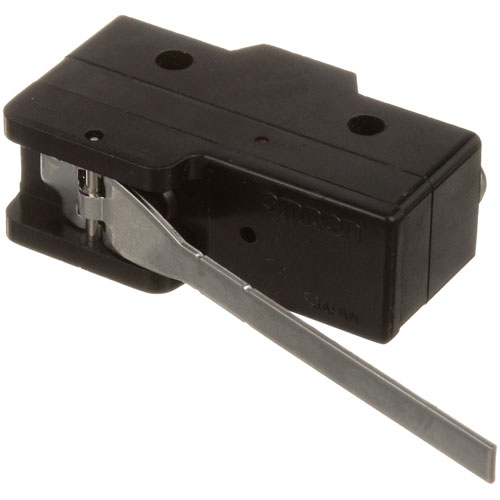

Imperial 1155 Door Micro Leaf Switch W/Spring 20A 125-250V/480V

SKU: 1155 1-1155 Brand:
Imperial
Availability:
In Stock
(0)
$64.16 Price reduced from $114.57
Save $50.41
Have a Question? +1 (866) 863-0907

Specifications:

  • Door Micro Leaf Switch W/ Spring, 20A 125-250V Or 480V,
  • 1" Mt. Ctrs.
  • American Range Convection Oven Ar-C
  • Hobart Dishwasher Where Applicable.
  • Imperial Convection Oven Icv, Icvd, Ir-36, Ir-48, Ir-60,
  • Ir-72.
  • Us Range Oven Series: 836 Cuisine, 900 Phoenix,
  • Performer Ii Convection Oven.
  • Vulcan Fryer Series: Ccfd, Hi-Efficiency, Filtermate Units.
  • Oven 77, 141, 241, Ret-10, Ret-10Sm, Ret-85M, Ret-88,
  • Rgt-10, Sg-2, Sg-2Sm, Sg-10, Sg-10Sm, Sg-22, Sg77, Sg-1010.
  • Vc(4,6) Series: 90, Et.
  • Braising Pan Series E23, E40, G23, G40

Description

The Imperial 1155 Door Micro Leaf Switch W/Spring 20A 125-250V Or 480V is a switch that detects the position of the door, and activates the electrical system by opening or closing the internal contacts when the door is moved during the operation of the equipment. A leaf-effective actuator is used in conjunction with a spring to flex in line with the door's movement to create an electrical switching action that regulates power to related circuits. It has a higher load rating on its contact system and reacts immediately to changes in position for operational control sequences. The door assembly is compatible with commercial cooking equipment.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 3 in
  • Height: 0.75 in
  • Width: 1.5 in

Installed within commercial cooking and foodservice equipment, this door micro leaf switch is designed to detect door position and control associated electrical functions during equipment operation. Rated for 20 amps and compatible with 125-250V or 480V applications, the switch features a spring-actuated leaf design and 1-inch mounting centers for installation in compatible equipment. Commonly used in convection ovens, fryers, braising pans, dishwashers, and other commercial appliances, it helps activate or interrupt electrical circuits when doors are opened or closed. Proper switch operation is important for equipment control, safety functions, and efficient performance. If the original switch becomes worn, damaged, or fails to respond correctly, replacing it can help restore normal equipment operation and reliable electrical switching performance.

Equipment Compatibility:
Electrical control replacement applications for Imperial Door Micro Leaf Switch assemblies include commercial convection ovens, fryers, braising pans, dishwashers, and foodservice equipment. This Door Micro Leaf Switch 1155 is compatible with commercial equipment from leading brands such as Imperial, Vulcan Hart, Lang, American Range, Saniserv, Hobart, Garland, Southbend, Star, Market Forge, APW Wyott, Merrychef, and more, where door-activated electrical switching is required for proper equipment operation.

Brand Compatibility:
This door micro leaf switch replaces multiple part numbers used across compatible equipment models from brands such as Imperial, Vulcan Hart, Lang, American Range, Saniserv, Hobart, Garland, Southbend, Star, Market Forge, APW Wyott, and Merrychef. Complete cross-reference details are provided separately for identification and ordering purposes.

Product Specifications:
SKU: 1155
Manufacturer: Imperial
Product Type: Door Micro Leaf Switch
Current Rating: 20A
Voltage Rating: 125-250V or 480V
Actuation Type: Spring Leaf
Mounting Centers: 1"
Application: Door Position Detection and Electrical Switching
Equipment Type: Commercial Foodservice Equipment

Key Features:

  • Controls electrical circuits based on door position
  • Rated for 20A operation in compatible equipment
  • Suitable for 125-250V and 480V electrical systems
  • Spring-actuated leaf switch design
  • 1-inch mounting centers for proper installation alignment
  • Used in ovens, fryers, braising pans, and dishwashers
  • Helps restore normal equipment control functions when replacing a faulty switch
  • Supports reliable electrical switching during equipment operation
  • "

Installation Feedback:

Often mentions improved flame distribution and more consistent heating after replacing a worn or damaged burner."

AMERICAN RANGE:

10412 A10008 AMRA10008

APW WYOTT:

1301609

GARLAND:

227034

HOBART:

00-411496-000F1 00-825126-00030 00-87711-221 111496-F1 411496-000F1 411496-F1 825126-00030 825126-30 860852 87711-221

IMPERIAL:

IMP1155

LANG:

2E-30301-02 2E30301-02 30301-02 LG2E30301-02 LG30301-02

MARKET FORGE:

10-5714

MERRYCHEF:

30Z1430

SANISERV:

70008 SS70008

SOUTHBEND:

3003773 SOU3003773

STAR MFG:

2E-30301-02 3003773 30301-02

STERO:

STA2E-30301-02 STA30301-02

VULCAN HART:

00-411496-000F1 00-825126-00030 111496-F1 25150-00090 411496-000F1 411496-F1 825126-00030 825126-30 860852 VH00-411496-000F1 VH25150-00090 VH825126-00030
