Merrychef 30Z1430 Oven Door Micro Leaf Switch W/ Spring 20A 125-250V Or 480V

SKU: 30Z1430 1-30Z1430 Brand:
MERRYCHEF
Availability:
In Stock
(1)
$64.16 Price reduced from $114.57
Save $50.41
Have a Question? +1 (866) 863-0907

Specifications:

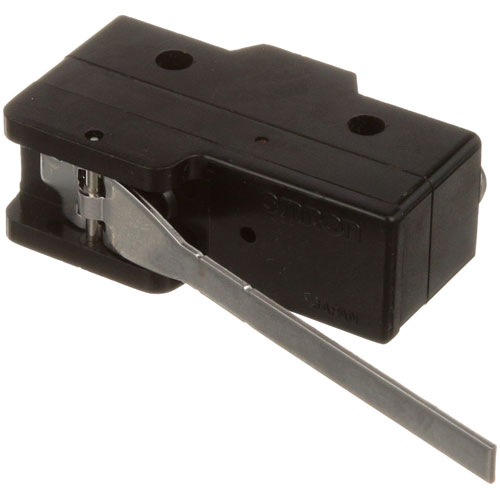

  • Door Micro Leaf Switch W/ Spring, 20A 125-250V Or 480V,
  • 1" Mt. Ctrs.
  • American Range Convection Oven Ar-C
  • Hobart Dishwasher Where Applicable.
  • Imperial Convection Oven Icv, Icvd, Ir-36, Ir-48, Ir-60,
  • Ir-72.
  • Us Range Oven Series: 836 Cuisine, 900 Phoenix,
  • Performer Ii Convection Oven.
  • Vulcan Fryer Series: Ccfd, Hi-Efficiency, Filtermate Units.
  • Oven 77, 141, 241, Ret-10, Ret-10Sm, Ret-85M, Ret-88,
  • Rgt-10, Sg-2, Sg-2Sm, Sg-10, Sg-10Sm, Sg-22, Sg77, Sg-1010.
  • Vc(4,6) Series: 90, Et.
  • Braising Pan Series E23, E40, G23, G40

Description

The Merrychef 30Z1430 Door Micro Leaf Switch with Spring functions as control device that protects safety features in American Range Convection Ovens as well as Hobart Dishwashers and Imperial Convection Ovens ICVD, IR-36. This switch operates at 20A and works with 125-250V or 480V systems to detect door actions while stopping accidental operations when doors remain open. The product provides durable construction together with its precise functionality which protects equipment safety and reduces downtime and boosts appliance performance. The commercial kitchen switch allows smooth operations while protecting your equipment from premature wear.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 3 in
  • Height: 0.75 in
  • Width: 1.5 in

AMERICAN RANGE:

10412 A10008 AMRA10008

APW WYOTT:

1301609

GARLAND:

227034

HOBART:

00-411496-000F1 00-825126-00030 00-87711-221 111496-F1 411496-000F1 411496-F1 825126-00030 825126-30 860852 87711-221

IMPERIAL:

1155 IMP1155

LANG:

2E-30301-02 2E30301-02 30301-02 LG2E30301-02 LG30301-02

MARKET FORGE:

10-5714

SANISERV:

70008 SS70008

SOUTHBEND:

3003773 SOU3003773

STAR MFG:

2E-30301-02 3003773 30301-02

STERO:

STA2E-30301-02 STA30301-02

VULCAN HART:

00-411496-000F1 00-825126-00030 111496-F1 25150-00090 411496-000F1 411496-F1 825126-00030 825126-30 860852 VH00-411496-000F1 VH25150-00090 VH825126-00030

Step1: Disconnect power and verify zero voltage at oven.

Step2: Remove oven door panel to access switch assembly.

Step3: Note wiring positions for reference.

Step4: Detach faulty micro leaf switch and spring carefully.

Step5: Install new switch ensuring correct alignment and mounting.

Step6: Reconnect wiring as per reference and secure connections.

Step7: Reassemble panel and test door actuation safely.

  • What maintenance is required for the Merrychef 30Z1430 Door Micro Leaf Switch?

    For proper operation, keep the micro leaf switch clean and free from dust or grease buildup. Inspect the oven actuator spring and contacts regularly for wear or misalignment. Ensure secure mounting and test door activation frequently to prevent intermittent switching issues.

  • What are common issues with the Merrychef 30Z1430 Door Micro Leaf Switch?

    • Door switch misalignment causing failure to trigger.
    • Contact wear leading to intermittent or no electrical response.
    • Spring fatigue affecting door activation consistency.
    • Heat exposure degrading internal switch components.
