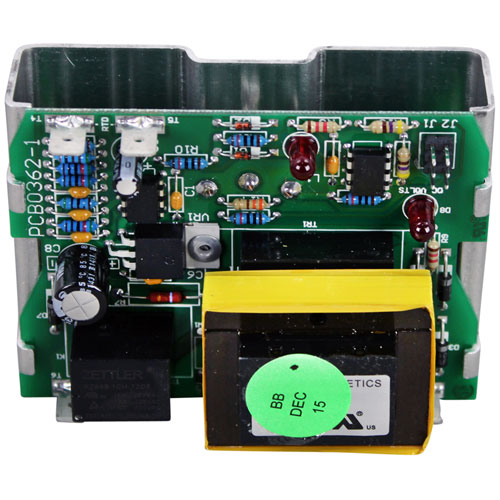

Southbend 1175024 Oven Control Board W/Potentiometer & Bracket

An electronic temperature control component used in commercial ovens, this control board manages and regulates cooking settings to ensure accurate heat adjustment during baking and roasting cycles. It includes a potentiometer with a 1/4-inch round stem and connects through 8 terminal tabs, allowing it to interface with the oven’s control system. The attached bracket supports secure mounting inside the equipment, helping maintain stable positioning during operation. Designed to deliver consistent temperature control, this board helps maintain even cooking performance across commercial oven systems. It is commonly used in Southbend “Cook Only” oven series found in restaurants, bakeries, and institutional kitchens. When an existing control board begins to fail or causes an inaccurate temperature response, replacing it helps restore proper heat regulation and improve overall cooking consistency and equipment reliability during daily use.

Equipment Compatibility:
Primary applications for the Southbend Oven Control Board with Potentiometer & Bracket include commercial cooking ovens used in restaurants, bakeries, and institutional kitchens where precise temperature regulation is required for baking, roasting, and general cooking operations. This Oven Control Board 1175024 is compatible with commercial equipment from leading brands such as Southbend, Star Manufacturing, Middleby Marshall, and more, where accurate electronic temperature control is required for reliable operation and consistent cooking performance.

Brand Compatibility:
This oven control board replaces multiple equivalent parts used across commercial oven systems. Cross-reference includes Southbend, Middleby Marshall, Star Manufacturing, and more. Full replacement mapping details are provided separately for reference.

Product Specifications:
Product Type: Oven Control Board with Potentiometer & Bracket
Manufacturer: Southbend
SKU: 1175024
Potentiometer: 1/4-inch round stem
Connections: 8 tab terminals
Mount Type: Comes with a bracket
Use: Controls oven temperature
Application: Commercial cooking ovens

Key Features:

• Helps control oven temperature so food cooks evenly.
• Includes a turning knob part that lets users adjust the heat easily.
• Uses 8 electrical connections to send signals inside the oven.
• The bracket helps keep the control board secure inside the machine.
• Replacing a bad control board helps fix heating problems in the oven.

Installation feedback often mentions more accurate temperature control and improved cooking consistency after replacement.

Step1: Disconnect power supply and allow the oven to cool completely before servicing.

Step2: Remove the control panel cover to access the existing control board assembly.

Step3: Label and disconnect all wire connections from the old board carefully.

Step4: Unscrew and remove the faulty board along with its bracket.

Step5: Mount the new control board and bracket securely in position.

Step6: Reconnect wires according to labels and restore the control panel.

Step7: Reconnect power and test oven functions for proper operation.

• What maintenance is required for the Southbend 1175024 Control Board with Potentiometer & Bracket?

  Keep the control board clean and dry to prevent moisture damage. Check wiring connections for tightness and corrosion. Regular inspection ensures stable operation and prevents electrical faults or control inaccuracies.

• What are common issues with the Southbend 1175024 Control Board with Potentiometer & Bracket?

  • Oven not heating due to board failure.
  • Incorrect temperature control from faulty potentiometer.
  • Loose wiring causing intermittent operation.
  • Unresponsive or erratic control behavior.
