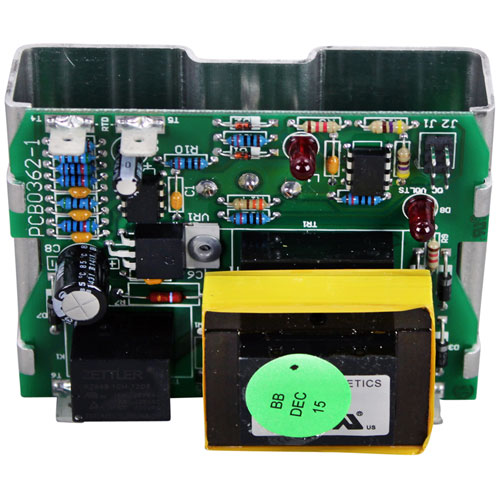

Southbend 1181998 Oven Control Board W/ Potentiometer & Bracket

Electronic Control Processing:
Receives the electrical input generated through the potentiometer and processes the selected setting through the oven's control circuitry. The control board interprets the input and communicates the corresponding control signal to connected electrical components. This electronic processing allows the control system to respond to changes made through the operator interface.

Potentiometer Input:
Provides variable electrical input corresponding to the operator's adjustment of the temperature control. Rotation of the potentiometer changes its electrical output, which the control board then interprets. Consistent potentiometer response helps provide predictable input to the oven's control circuitry.

Replacement Guidelines:
Replace the Convection Oven Control Board if it is damaged, burned, cracked, unresponsive, or no longer provides proper control functions. The part number 1181998 and the included potentiometer and bracket configuration should be verified before replacement to ensure the correct control board assembly is selected. Replace the control board if deterioration affects electrical connections, control response, potentiometer operation, or normal oven operation.

Common Failure Symptoms:

• Oven temperature control does not respond normally to knob adjustments.
• Control response becomes intermittent or unresponsive.
• Potentiometer input does not correspond consistently with the selected setting.
• Visible damage or burning appears on the control board.
• Electrical control functions become inconsistent during oven operation.

Equipment Compatibility:
The Southbend 1181998 Convection Control Board With Potentiometer & Bracket is intended for equipment requiring this specific control assembly configuration. Verify the equipment model, part number, and electrical connections before purchase.

Technical Specifications:
Brand: Southbend
Part Number: 1181998
Component Name: Convection Oven Control Board

Step1: Unplug the oven to prevent electrical shock.

Step2: Remove the control panel to access the existing control board.

Step3: Disconnect all wiring connectors carefully from the old board.

Step4: Unscrew and remove the old control board and bracket.

Step5: Install the new board with its bracket and reconnect wiring securely.

Step6: Replace the control panel, restore power, and test oven functions.

• Can I recycle or dispose of the old oven control board safely?

  Electronic waste recycling programs or facilities can handle the proper disposal or recycling of old control boards. Check local regulations and recycling options to ensure environmentally responsible disposal.

• What should I do if I encounter issues after replacing the control board?

  If you experience issues after replacing the control board, double-check the installation and connections. If problems persist, refer to the oven's manual, consult a technician experienced with Southbend ovens, or contact Southbend's customer support for assistance.

• Are there any maintenance requirements for the oven control board?

  While the control board itself might not require routine maintenance, following proper oven care guidelines, including cleaning and regular inspections, can contribute to optimal performance.

• What maintenance is required for the Southbend 1181998 Control Board?

  Inspect the control board regularly for loose connections, corrosion, or heat damage to ensure stable oven operation. Check the potentiometer for smooth adjustment and secure mounting on the bracket. Keep the area free from grease buildup and dust to prevent electrical interference. Always disconnect power before servicing to reduce the risk of electrical shock.

• What are the common issues with the Southbend 1181998 Control Board?

  • Inaccurate temperature readings or control.
  • Failure to power on or respond.
  • Loose or corroded wiring connections.
  • Potentiometer issues are causing erratic settings.

• What maintenance is required for the Southbend 1181998 Control Board W/ Potentiometer & Bracket?

  Periodically inspect the control board for loose connections or burn marks. Verify the potentiometer adjusts settings smoothly and the bracket is secure. Test the oven functions to confirm signals are sent correctly to heating elements. Avoid exposing the board to moisture.

• What are common issues with the Southbend 1181998 Control Board W/ Potentiometer & Bracket?

  • Oven settings not responding.
  • Potentiometer drifting or inconsistent.
  • Control board fails to send signals.
  • Intermittent power to heating elements.

• What type of component is the Southbend 1181998?

  The Southbend 1181998 is a convection oven control board assembly. It combines a control board with a potentiometer and bracket as part of its listed configuration.

• What does the potentiometer add to the Southbend 1181998 assembly?

  The potentiometer provides an adjustable control input within the assembly. Its inclusion distinguishes this configuration from a control board without the specified potentiometer.

• Why is a bracket included with the Southbend 1181998?

  The bracket provides the physical mounting structure associated with the control board assembly. It is included as part of the complete component configuration.

• How does a control board support convection oven controls?

  A control board provides the electronic control interface for equipment operation. In a convection oven, it forms part of the system that receives and processes control inputs.

• What makes the Southbend 1181998 a complete assembly rather than a board-only component?

  The Southbend 1181998 combines the control board with both a potentiometer and bracket. These included components define the assembly configuration identified by the product title.
