main product photo

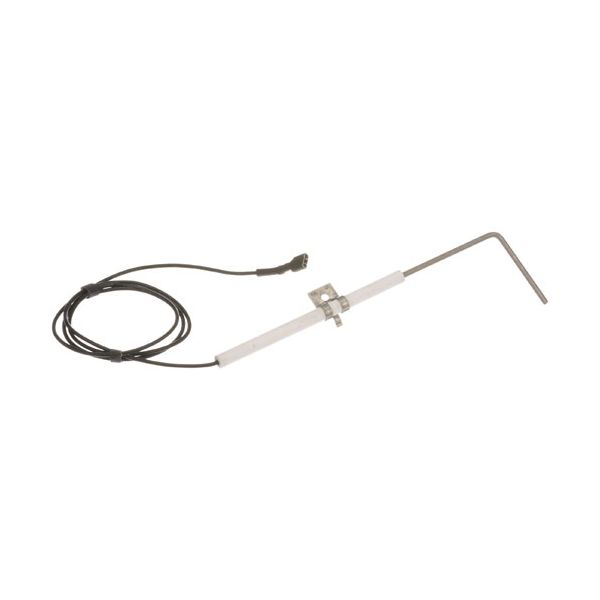

Southbend 1189311 Flame Sensor 90°

Be the first to review this product
Special Price $86.93 Regular Price $163.71
In stock
SKU
1189311
Add to Wish List
Griddle & Grill Parts, Flame Sensors, Shop by manufacturers
Manufacturer:
The Southbend 1189311 Flame Sensor identifies the presence of a burner flame when electrical current is produced when the flame contacts the sensor rod and ground. A flame is sensed, and a signal is transmitted to the control system to allow the flow of gas to proceed, and when no flame is sensed, the signal is stopped. This flame sensor is installed within the region of the burner assembly at a 90-degree angle, and the sensing rod is directly in the path of the flame.

Dimensions

  • Length: 6 In
  • Width: 0.5 In
  • Height: 0.5 In
  • Weight: 0.25 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1189311-flame-sensor-90-deg-47019-2.jpg
MIDDLEBY MARSHALL:
Reviews
Write Your Own Review
You're reviewing:Southbend 1189311 Flame Sensor 90°
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Southbend 1189311 Flame Sensor?

Clean the sensor tip regularly to remove carbon buildup and grease that can affect flame detection accuracy. Inspect wiring connections for tightness and corrosion. Ensure proper alignment within the burner assembly and check for secure mounting during servicing.

What are common issues with the Southbend 1189311 Flame Sensor?

  • Weak flame signal due to fouling.
  • Intermittent ignition failure from misalignment.
  • Wiring or connector damage causing signal loss.
  • Erratic burner shutdown or false flame detection.
  • Sensor contamination leading to inconsistent readings.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power and gas supply to the appliance before starting.

Step2: Remove access panel and locate existing flame sensor carefully.

Step3: Disconnect wiring and unscrew old sensor using proper tools.

Step4: Install new sensor aligning orientation correctly.

Step5: Reconnect wiring securely and ensure tight mounting.

Step6: Restore power, test ignition, and check flame detection safety.

Step7: Wear protective gloves and verify no gas leaks before operation.
