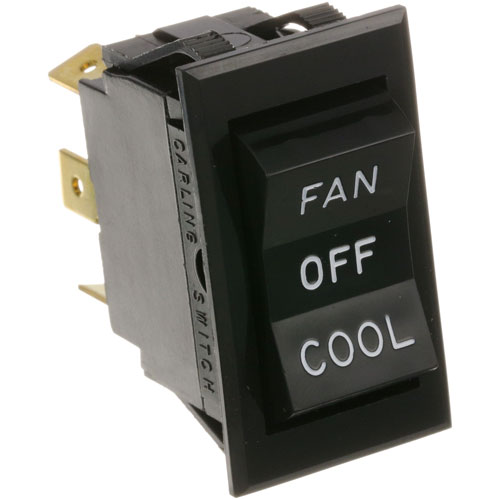

Montague 1305-6 Rocker Switch DPDT Black ON/OFF/ON 20A 125V/277V

SKU: 1305-6 1-1305-6 Brand:
Montague
Availability:
In Stock
(0)
$31.65 Price reduced from $64.59
Save $32.94
Have a Question? +1 (866) 863-0907

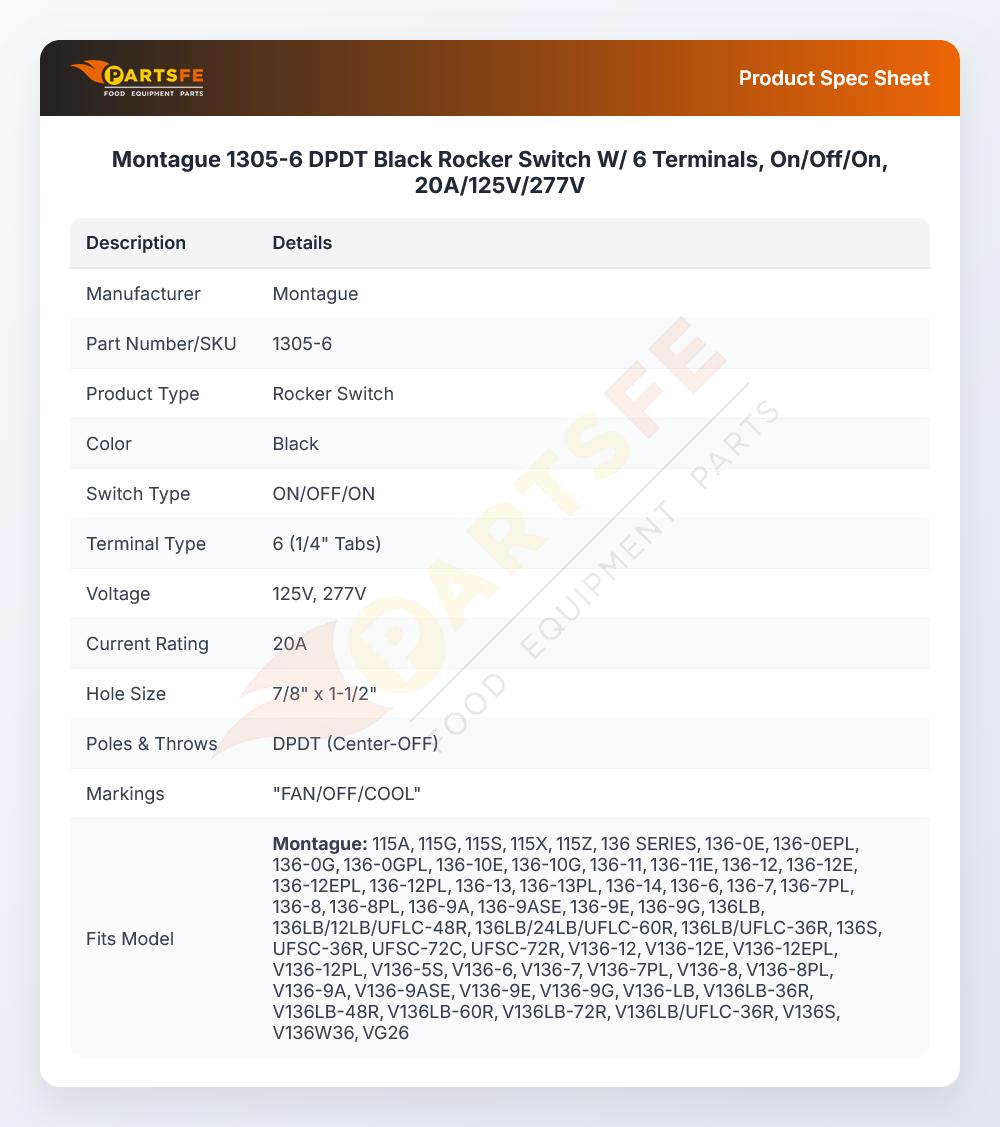

Specifications:

  • [ Black Rocker Switch ] [ Fits Hole 7/8" X 1-1/2" ]
  • [ On/Off/On ] [ Dpdt(Ctr-Off) ] [ Terminals 6 (1/4'
  • Tabs) ] [ Amp/Volts 20A/125V/277V ] [ Color Black ]
  • [ Markings "Fan/Off/Cool" ]
  • Montague
  • Oven Vectaire: 115(A,S,X,Z), Se70, Se115~
  • 115Aei W/Elec
  • Ignition~
  • Series: V136, Vg26, Grizzly G.

Description

The Montague 1305-6 Rocker Switch DPDT Black ON/OFF/ON 20A 125V/277V is operates on a double-pole, double-throw design, which is used to switch power between two outputs or switch it off. When the rocker is pushed, the internal contacts are moved to open or close the circuits and allow the ON/OFF/ON operation. This switch is fitted on the appliance control panel and is placed to be connected with six terminals to be wired appropriately. Proper installation will support better control of the connected circuits, which will facilitate safe and effective functioning of the equipment.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.7 in
  • Height: 2 in
  • Width: 0.9 in

MONTAGUE:

#2A #2B 01305-6 20318-1 23130-4 MON1305-6 MON20318-1 MON23130-4 MONV17-2 V17-2

Step1: Turn off the power at the main supply to prevent electrical shock.

Step2: Remove the panel or housing covering the old switch.

Step3: Disconnect wires, noting their positions for correct reconnection.

Step4: Insert the new rocker switch into the panel opening.

Step5: Reconnect wires to the proper terminals securely.

Step6: Snap or screw the switch into place firmly.

Step7: Restore power and test the switch for proper operation.

  • What maintenance is required for the Montague 1305-6 Rocker Switch?

    Inspect the switch for wear, damage, or loose connections. Keep the switch clean and dry. Ensure secure wiring connections. Avoid excessive force during operation and disconnect power before servicing to prevent electrical hazards.

  • What are common issues with the Montague 1305-6 Rocker Switch?

    • Switch is failing to toggle between positions.
    • Intermittent electrical connection.
    • Loose or damaged terminals.
    • Internal contact wear is causing inconsistent operation.
    • Switch sticking or not returning properly.
