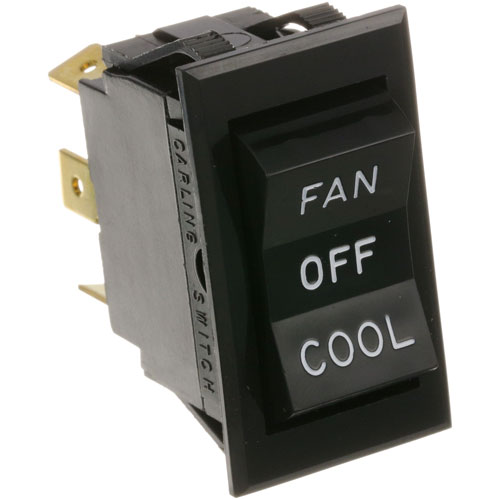

Montague MON1305-6 DPDT Black Rocker Switch W/ 6 Terminals, On/Off/On, 20A/125V/277V

SKU: MON1305-6 1-MON1305-6 Brand:
Montague
Availability:
In Stock
(0)
$31.65 Price reduced from $64.59
Save $32.94
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Black Rocker Switch ] [ Fits Hole 7/8" X 1-1/2" ]
  • [ On/Off/On ] [ Dpdt(Ctr-Off) ] [ Terminals 6 (1/4'
  • Tabs) ] [ Amp/Volts 20A/125V/277V ] [ Color Black ]
  • [ Markings "Fan/Off/Cool" ]
  • Montague
  • Oven Vectaire: 115(A,S,X,Z), Se70, Se115~
  • 115Aei W/Elec
  • Ignition~
  • Series: V136, Vg26, Grizzly G.

Description

Switch 7/8 X 1-1/2 Dpdt Ctr-Off

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.7 in
  • Height: 2 in
  • Width: 0.9 in

MONTAGUE:

#2A #2B 01305-6 1305-6 20318-1 23130-4 MON20318-1 MON23130-4 MONV17-2 V17-2

Step1: Turn off main power supply and verify circuit is de-energized with a tester.

Step2: Mount switch into panel cutout ensuring correct orientation and secure fit.

Step3: Connect wiring to 6 terminals following DPDT wiring diagram carefully.

Step4: Tighten terminal screws firmly to ensure solid electrical contact.

Step5: Restore power and test on/off/on switching for proper operations.

Step6: Ensure all connections are insulated to prevent short circuits or electric shock.

  • What maintenance is required for the Montague MON1305-6 Black Rocker Switch W/ 6 Terminals?

    Inspect the switch regularly for loose terminals and signs of overheating or wear. Keep the housing free from dust and moisture to prevent contact issues. Ensure wiring remains tight and properly insulated. Replace the switch if mechanical resistance or inconsistent toggling occurs.

  • What are common issues with the Montague MON1305-6 Black Rocker Switch W/ 6 Terminals?

    • Loose or burnt terminals causing intermittent contact.
    • Rocker mechanism sticking or failing to toggle.
    • Electrical arcing under load.
    • Overheating from excessive current draw.
    • Internal contact wear leading to inconsistent switching.
    • Poor connection due to wiring fatigue.
