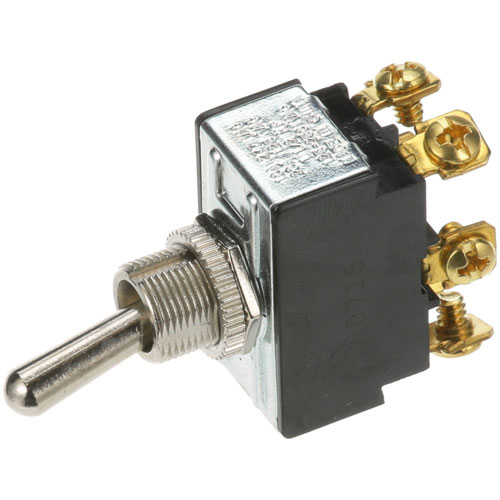

Jackson 1555 Toggle Switch On/Off DPDT 1/2" 20A/125V 10A/277V
Specifications:
- [ Toggle Switch ] [ Fits Hole 1/2" ] [ On/On ] [ Dpdt ]
- [ Terminals 6Ea (Screws) ] [ Amp/Volt 20A/125V, 10A/277V ]
- [Color -Blk/Slvr] Has Double Flats, Manual Wash
- Jackson Dishwasher 10, 50
- Market Forge Steamer 3100, Jet(B),
- Auto Blow-Down Gas(180,000 Btu) &
- Elec (24Kw) Boilers,
- Modular Gas Steam Generators.
Description
Dimensions:
- Weight: 0.1 lbs
- Length: 2.25 in
- Height: 0.75 in
- Width: 1.38 in
A toggle switch designed to provide manual electrical control in commercial foodservice equipment. This DPDT (Double Pole Double Throw) switch features an ON/OFF configuration that allows operators to manually change circuit states as required by equipment operation. Rated for 20A at 125V and 10A at 277V, the switch is designed to fit a 1/2" mounting hole and includes six screw terminals for secure electrical connections. The black and silver actuator design incorporates double flats to support proper installation and positioning. Commonly used in commercial dishwashers, steamers, boilers, and steam generators, this switch enables manual control of electrical functions within the equipment. Proper switch operation is important for maintaining equipment functionality and operator control over system processes. When a switch becomes worn, damaged, or fails to maintain proper electrical contact, replacing the component may help restore normal equipment operation and reliable circuit control.
Equipment Compatibility:
Built for use with compatible Jackson and Market Forge commercial equipment, where reliable electrical switching and circuit control are required for proper equipment operation.
Product Specifications:
Manufacturer: Jackson
SKU: 1555
Product Type: Toggle Switch
Switch Configuration: DPDT (Double Pole Double Throw)
Operation: ON/ON
Current Rating: 20A @ 125V
Current Rating: 10A @ 277V
Mounting Hole Size: 1/2"
Terminals Type: 6 Screw Terminals
Color: Black/Silver
Design Feature: Double Flats
Key Features:
- Provides manual ON/OFF electrical switching for equipment control circuits.
- DPDT configuration allows switching between multiple circuit paths.
- Rated for 20A at 125V and 10A at 277V applications.
- Fits a 1/2" mounting hole for panel installation
- Six screw terminals provide secure electrical connections.
- Double-flat design helps support proper switch positioning during installation.
- Used in commercial dishwashers, steamers, boilers, and steam generators.
- Supports operator control of electrical functions within compatible equipment.
- Technician's feedback:
- Technicians commonly report restored switch responsiveness after replacement.
