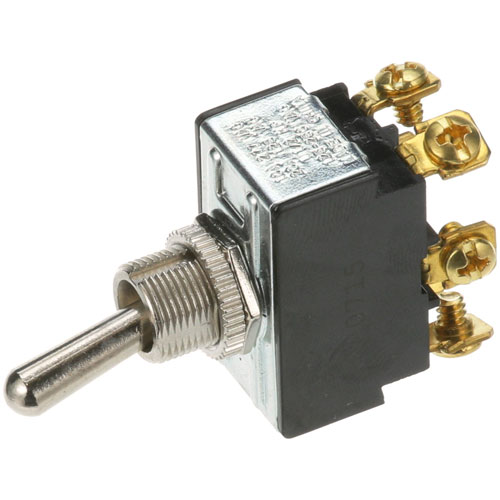

Jackson 157000 Toggle Switch DPDT 1/2" 20A/125V 10A/277V On/Off

SKU: 157000 1-157000 Brand:
Jackson
Availability:
In Stock
(0)
$52.33 Price reduced from $67.97
Save $15.64
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Toggle Switch ] [ Fits Hole 1/2" ] [ On/On ] [ Dpdt ]
  • [ Terminals 6Ea (Screws) ] [ Amp/Volt 20A/125V, 10A/277V ]
  • [Color -Blk/Slvr] Has Double Flats, Manual Wash
  • Jackson Dishwasher 10, 50
  • Market Forge Steamer 3100, Jet(B),
  • Auto Blow-Down Gas(180,000 Btu) &
  • Elec (24Kw) Boilers,
  • Modular Gas Steam Generators.

Description

The Jackson 157000 Toggle On/Off Switch is a type of switch that is used to switch the electrical circuit between complete and incomplete or interrupt the flow of power. It has a 20A, 125 V, and 10A, 277V, dual-pole, dual-throw, and can safely handle a variety of loads. The switch is intended to fit in a standard 1/2" panel hole and is therefore proper to mount on control panels, machinery, or appliances that need on/off control. It is small enough to occupy a small area on the panel and at the same time be accessible to operate.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.25 in
  • Height: 0.75 in
  • Width: 1.38 in

JACKSON:

1555 155500 5930-301-12-18 59303011218 JAC1555 JAC155500

MARKET FORGE:

10-5008 S10-5008

PITCO:

P5047166 PTP5047166

TAYLOR FREEZER:

24295

Step1: Turn off power supply at breaker and verify no voltage using tester.

Step2: Mount switch into panel hole and secure with locking nut.

Step3: Connect line and load wires to DPDT terminals as per wiring diagram.

Step4: Ensure all connections are tight and insulated to prevent shorts.

Step5: Restore power and test switch functionality for proper on/off operation.

Step6: Wear insulated gloves and ensure dry conditions during installation.

  • What maintenance is required for the Jackson 157000 Toggle On/Off Switch?

    Regularly inspect the switch for loose connections, worn terminals, or signs of overheating. Clean dust or debris around the housing to ensure proper operation. Ensure wiring remains secure and corrosion-free. Always disconnect power before servicing to prevent electrical hazards.

  • What are common issues with the Jackson 157000 Toggle On/Off Switch?

    • Intermittent switching or failure to maintain position.
    • Loose or damaged internal contacts.
    • Overheating due to high current loads.
    • Terminal connection failures.
    • Switch becoming stiff or unresponsive.
