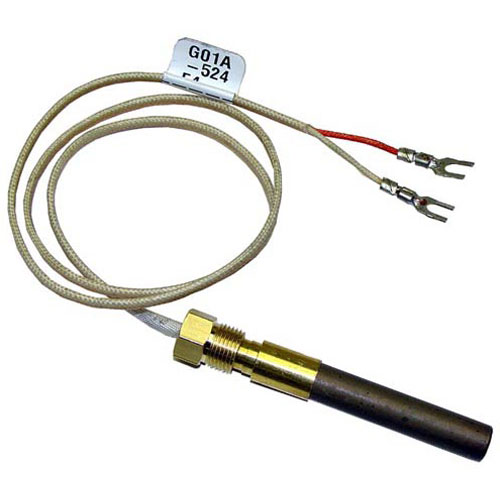

Avantco 177400043 Thermopile 24" 2-Lead

This thermopile is used in commercial gas cooking equipment to generate electrical power from a pilot flame. The 24-inch assembly has a two-lead design with spade terminals and is made for two-screw mounting applications. It works with compatible gas valves and pilot systems in fryers, griddles, and other commercial kitchen equipment. Thermopiles are commonly found in restaurants, concession equipment, and commercial foodservice kitchens using standing pilot systems. The component helps keep the gas valve open while the pilot flame is active. If the thermopile becomes weak or damaged, the pilot may not stay lit, or the burners may not operate correctly. Replacing the thermopile can help restore normal heating and ignition function.

Equipment Compatibility:
Commonly used in Avantco commercial gas fryers, griddles, and pilot-operated cooking equipment. This 24" Thermopile 2-Lead 177400043 is compatible with equipment from brands such as American Range, APW Wyott, and Avantco, where pilot flame power is used for gas valve operation.

Brand Compatibility:
Replaces multiple part numbers across various commercial gas cooking equipment brands, including American Range, APW Wyott, and Avantco. Refer to the “Replaces Parts” section for complete cross-reference details.

Product Specifications:
Manufacturer: Avantco
Part Number: 177400043
Product Type: Thermopile
Length: 24"
Lead Configuration: 2-Lead
Terminal Type: Spade Terminals
Mounting Style: 2 Screw Mount
Application: Commercial Gas Fryers & Cooking Equipment

Key Features:
Generates millivolt power from pilot flame heat. 24-inch length supports installation in compatible equipment. Two-lead thermopile design for compatible gas control systems. Spade terminal electrical connections for secure wiring. Two-screw mounting configuration for proper installation. Used in gas fryers and commercial cooking equipment. Helps restore pilot and burner operation after replacement.

Many operators notice more consistent burner ignition after installing the new thermopile.

Step1: Turn off gas and unplug the appliance before starting to prevent shocks or leaks.

Step2: Remove panels or covers to access the old thermopile.

Step3: Carefully disconnect the wires from the old thermopile, noting their placement.

Step4: Remove the old thermopile from its mounting without bending or damaging the leads.

Step5: Install the new thermopile in the correct orientation, ensuring proper contact.

Step6: Reconnect the wiring exactly as it was on the old thermopile.

Step7: Secure any mounting brackets or screws to hold the thermopile in place.

• What maintenance is required for the Avantco 177400043 Thermopile?

  Keep the thermopile clean and free from soot or debris. Ensure proper positioning in the pilot flame. Inspect connections for wear. Regular maintenance ensures proper voltage generation and accurate gas valve operation.

• What are common issues with the Avantco 177400043 Thermopile?

  • Insufficient voltage generation to operate the gas valve.
  • Weak or inconsistent pilot flame affecting performance.
  • Dirty or corroded connections reduce efficiency.
  • Thermopile misalignment with pilot flame.
  • Failure leading to the burner not staying lit.
