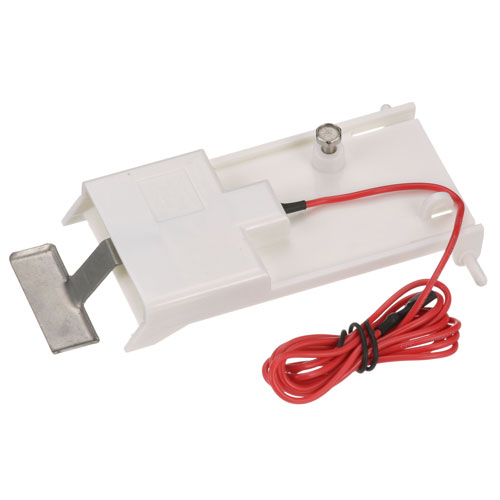

Manitowoc 200802 Ice Thickness Control Probe, 5-1/2" X 3-1/4"

Product Overview:
Monitors ice formation on the evaporator. The Manitowoc 200802 Ice Thickness Control Probe, 5-1/2" X 3-1/4", is an OEM sensing component that provides ice-condition information to the control system of compatible commercial ice machines. As ice develops on the evaporator surface, the probe responds to the changing ice condition and provides a signal associated with the required ice thickness. This sensing function connects physical ice formation with electronic cycle control, supporting the transition from ice production to the subsequent operating stage.

Ice Thickness Monitoring:
Senses changes in ice formation as the slab develops on the evaporator surface, the ice thickness control probe provides information that the control system uses to determine when the required ice condition has been reached. Its sensing position places the component within the area where ice forms, allowing the equipment to associate the probe response with the progression of the production cycle. The resulting signal supports the transition from the freezing stage to the next operating cycle.

Cycle Transition:
Relays information about the changing ice condition to the control system, the probe provides a sensing input associated with the progression of ice formation. As the ice reaches the required condition, the resulting response allows the control system to recognize the appropriate point for changing from ice production to the subsequent operating stage. This relationship connects ice formation with cycle timing throughout the production sequence.

Replacement Guidelines:
Consider replacing the Manitowoc 200802 Ice Thickness Control Probe, 5-1/2" X 3-1/4" when ice-thickness sensing becomes inaccurate, intermittent, or unavailable to the control system. Physical damage, sensing irregularities, or inconsistent responses can affect the timing of cycle transitions and the resulting ice formation. When selecting a replacement, verify the complete equipment model and applicable parts documentation to confirm the correct application.

Common Failure Symptoms:

• Ice thickness varies noticeably between production cycles.
• The machine changes to the next cycle before the expected ice thickness is reached.
• Ice formation continues longer than expected.
• The control system responds incorrectly to changing ice thickness.
• Ice production becomes inconsistent.
• Visible damage or deterioration is present on the probe.

Equipment Compatibility:
The Manitowoc 200802 Ice Thickness Control Probe is an OEM sensing component intended for applicable Manitowoc commercial ice machines. Verify the complete equipment model number, probe dimensions, and part number against Manitowoc's parts documentation before purchasing.

Technical Specifications:
Brand: Manitowoc
Part Number: 200802
Product Type: Ice Thickness Control Probe
Overall Size: 5-1/2" X 3-1/4"
Application: Commercial Ice Machine

Step1: Turn off power to the appliance.

Step2: Locate the existing ice thickness probe.

Step3: Disconnect it and remove it carefully.

Step4: Install the new probe in the same position.

Step5: Reconnect wiring securely.

Step6: Ensure proper alignment with the ice formation area.

Step7: Restore power and test ice thickness control.

• What maintenance is required for the Manitowoc 200802 Ice Thickness Control Probe?

  Regularly clean the probe to remove ice buildup, mineral deposits, or debris that can affect readings. Inspect electrical connections for corrosion or looseness. Test the probe periodically to ensure accurate ice thickness measurement.

• What are the common issues with the Manitowoc 200802 Ice Thickness Control Probe?

  • Inaccurate ice thickness readings.
  • Sensor malfunction due to moisture intrusion.
  • Corroded or loose electrical connections.
  • Probe damage from impact.
