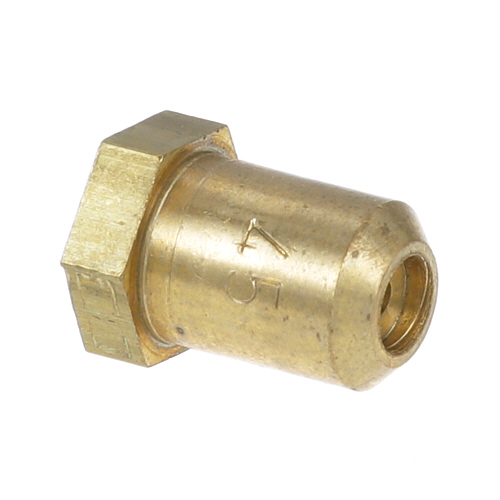

Garland 223242-45 Orifice #45

SKU: 223242-45 1-223242-45 Brand:
Garland
Availability:
In Stock
(0)
$3.82
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Valve Hood Orifice 3/8"-27 X #45
  • Southbend Griddle Hdg, Mdg
  • Star Broiler 6000, 6100, Cb/Rcb/Cba/Rcba

Description

The Garland 223242-45 Orifice #45 is a gas flow control part that is used to deliver fuel to equipment in commercial systems. This orifice is in the burner section of compatible ranges, ovens or other natural gas- or propane-powered appliances, and it has a specifically measured opening that regulates the flow of natural gas or propane to ensure that the air-to-fuel ratio is correct. It assists in maintaining a steady supply of gas, which is used in cooking, to maintain a steady ignition, regular flame properties, and a steady heat production.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.5 in
  • Width: 0.5 in

CECILWARE:

F124A

GARLAND:

M8-45

GLASS MAID:

8-45

GRINDMASTER:

F124A

HOBART:

00-719951-00045 719951-00045 719951-45

IMPERIAL:

1700-45 2072 5119G4-45 5199G4-45 IMP1700-45 IMP5119G4-45 IMP5199G4-45

JADE RANGE:

460-209-000 460209000

SOUTHBEND:

1008745

STAR MFG:

2J-Y8838

VULCAN HART:

00-719951-00045 719951-00045 719951-45

Step1: Turn off gas supply and ensure appliance is secure before starting operation.

Step2: Remove the burner assembly carefully from the unit.

Step3: Unscrew the existing orifice from the burner inlet using proper tools.

Step4: Install the new orifice and tighten it securely without over-tightening.

Step5: Reassemble the burner and ensure correct alignment with the gas line.

Step6: Turn on gas supply and test flame stability and proper combustion.
